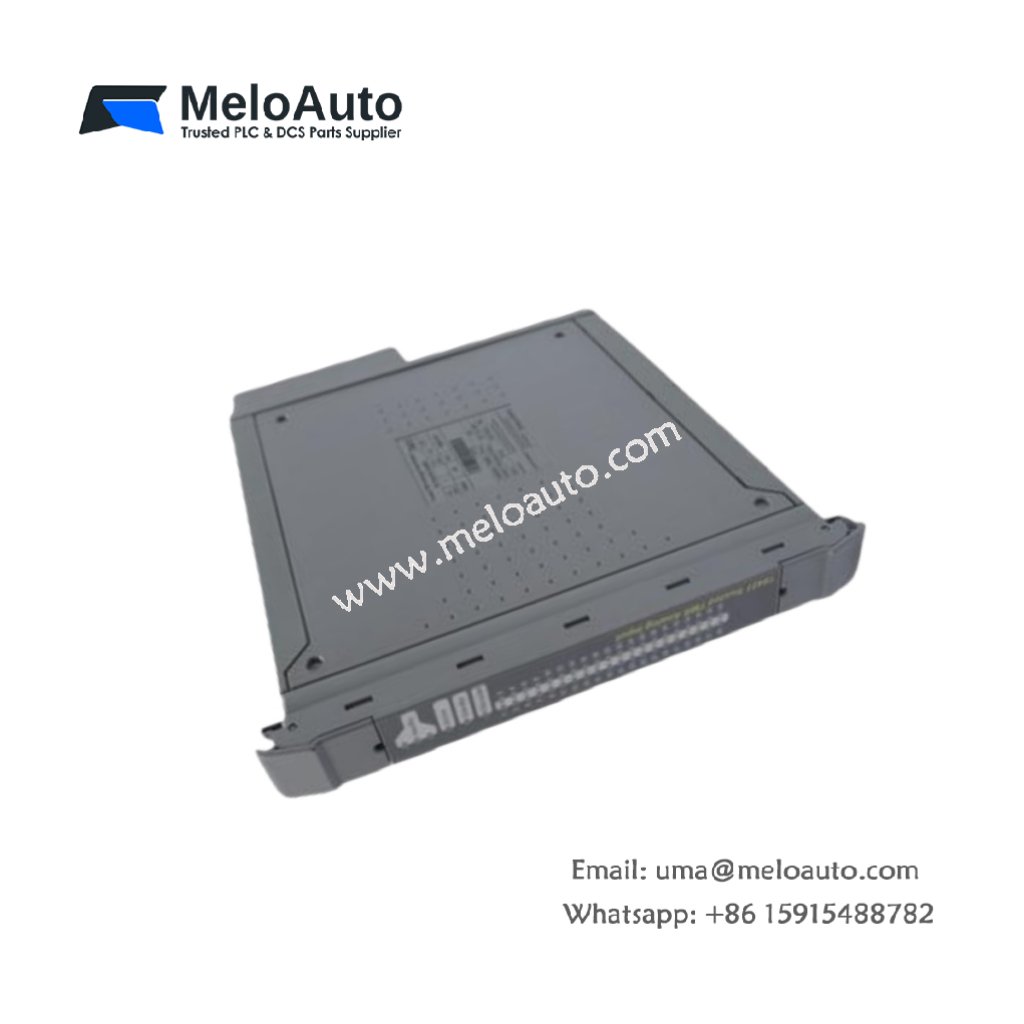

ICS Triplex T8903 – Triple-Redundant Analog Output Module

Overview

The ICS Triplex T8903 is a high-availability, triple-redundant analog output module designed for industrial control systems where reliability is paramount. In applications where downtime is unacceptable, this module ensures consistent, accurate analog control. With three independent output channels, the T8903 guarantees continuous operation even if one channel fails, providing robust redundancy for critical environments.

Key Features

Triple-Redundant Design: The module includes three independent output channels, ensuring reliability in high-demand environments.
Signal Conditioning: Every output channel features dedicated signal conditioning, ensuring precision and stability for accurate control.
Channel Isolation: The module’s design isolates each channel to eliminate crosstalk, ensuring optimal performance.
Programmable Output Ranges: The T8903 supports various actuator requirements, providing flexibility through its programmable output ranges.
Fault Detection & Reporting: The module continuously monitors its health, instantly identifying faults and reporting them for quick resolution.

Technical Specifications

Electrical Specifications

Parameter	Specification
Voltage Range	18 Vdc to 28 Vdc
Maximum Current	10 mA per channel
Power Consumption	0.25W per channel

Environmental Specifications

Parameter	Specification
Operating Temperature	0°C to +60°C (32°F to 140°F)
Non-Operating Temperature	-25°C to +70°C (-13°F to 158°F)
Relative Humidity	10% to 95%, non-condensing

Physical Specifications

Parameter	Specification
Channels	60 (Fuse Protection: 40 fuses at 2A each, Part No. 813409)
Power Efficiency	Low power consumption, enhancing energy efficiency at 0.25W per channel
Environmental Robustness	Tolerates high humidity and temperature variations
Weight	To be provided by manufacturer
Dimensions	To be provided by manufacturer

Country of Origin

Manufactured in: United States

Applications

The ICS Triplex T8903 is widely used in industrial automation systems where high reliability and redundancy are critical. Its versatility makes it suitable for various applications, including:

Industrial Control Systems: It ensures continuous and reliable analog control, essential for complex industrial processes.
Power Generation and Distribution: The module’s high availability makes it ideal for use in power generation and distribution systems.
Transportation Systems: It provides stable output for control systems used in transportation infrastructure.
Safety-Critical Applications: The T8903 is perfect for environments where safety and fault tolerance are non-negotiable.

Why Choose the ICS Triplex T8903?

If your automation system demands fault-tolerant, high-precision control, the ICS Triplex T8903 is the optimal solution. Its triple-redundant design, fault detection capabilities, and programmability ensure robust and reliable operation. Whether you’re managing industrial processes, power systems, or transportation control, this module offers the security and stability you need.
