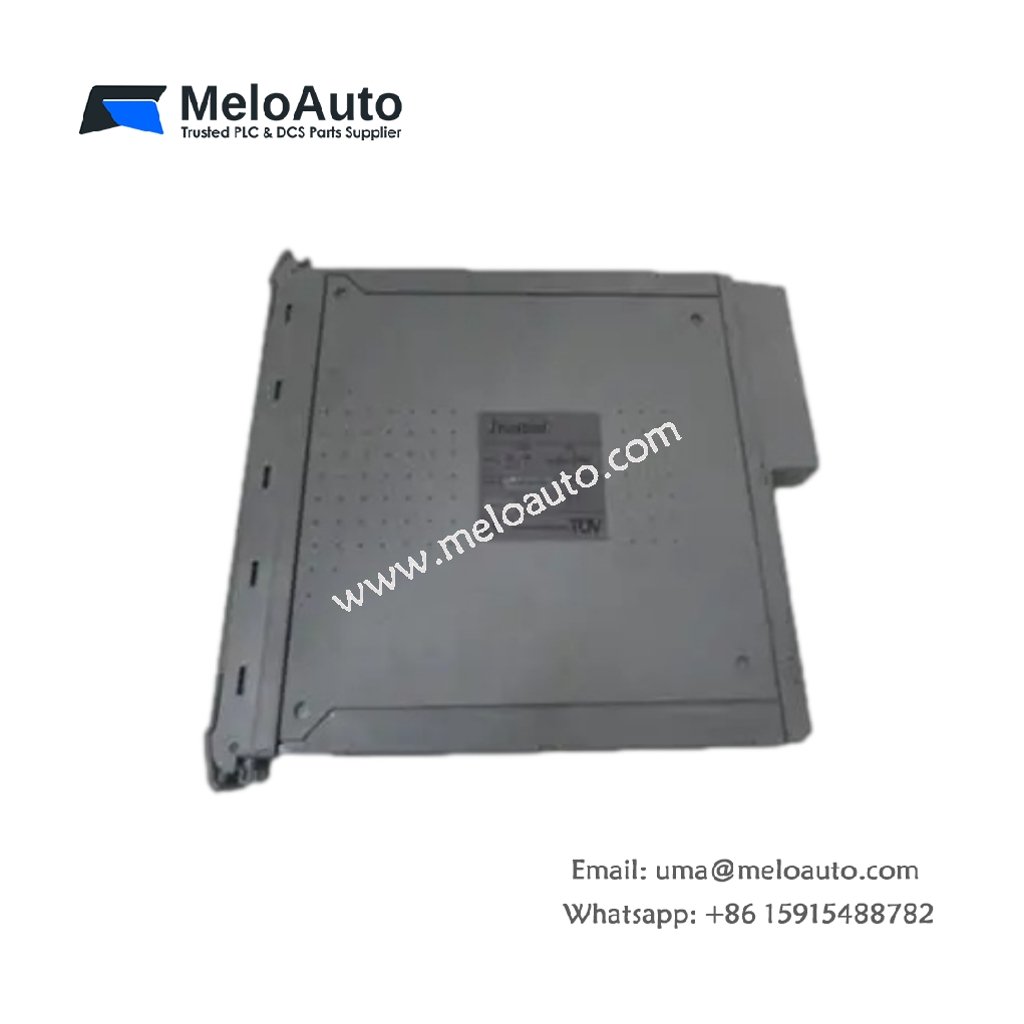

ICS Triplex T8850 Expander Interface Module

The ICS Triplex T8850 expander interface module extends I/O capacity for Trusted Triple Modular Redundant control systems. As a critical link in the Trusted architecture, this unit connects expansion chassis to the main processor. Engineers deploy this module when safety systems demand additional I/O beyond the primary rack.

Key Technical Specifications

The T8850 operates with a triple modular redundant design, which maintains fault tolerance across every expansion path. Each module weighs approximately 1.3 kg and measures 160 mm by 100 mm by 40 mm. This unit draws power from a 24 VDC supply and dissipates roughly 15 watts during normal operation.

Interface and Communication

The T8850 links the expander chassis directly to the Trusted backplane, enabling seamless data exchange across redundant channels. Consequently, each expansion path operates independently while voting logic resolves discrepancies in real time. The module supports hot-swap replacement, which minimizes downtime during maintenance activities. Furthermore, dual communication paths ensure reliable data transfer between the expander chassis and the main processor.

Component Count and Energy Storage

Each T8850 module contains three independent interface lanes on a single assembly. Additionally, onboard energy storage supports brief ride-through during power interruptions. The module integrates watchdog timers and diagnostic circuitry for continuous self-monitoring. Therefore, operators gain confidence in system integrity across demanding industrial environments.

Applications and Reliability

Oil and gas facilities, chemical plants, and power generation stations deploy the T8850 for critical safety functions. The TMR architecture achieves SIL 3 certification, meeting rigorous international safety standards. Meanwhile, comprehensive diagnostics alert maintenance teams before failures escalate. As a result, plant operators reduce unplanned shutdowns and protect expensive assets.
