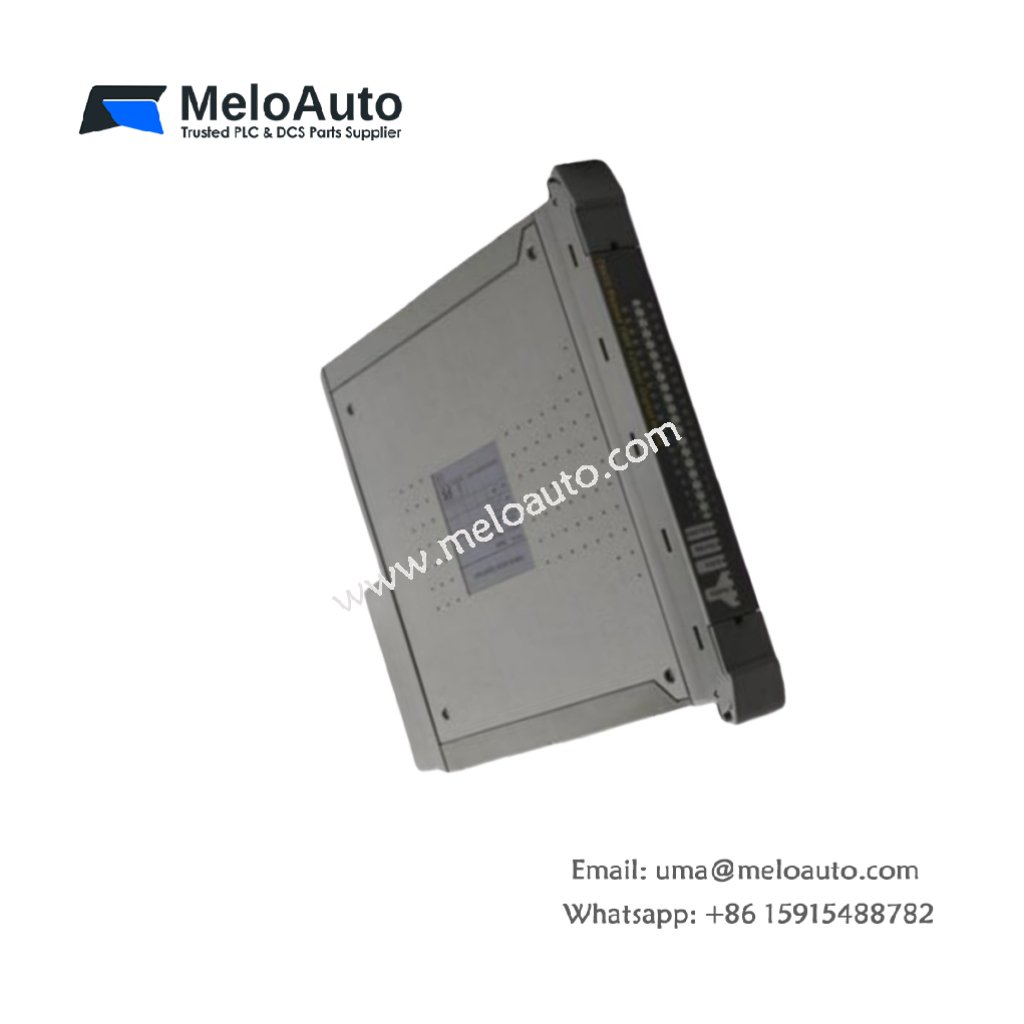

ICS Triplex T8432 Dual Analog Input Safety Module

Overview

The ICS Triplex T8432 is a safety-rated dual analog input module from Rockwell Automation, designed for industrial automation systems. It supports process control, machine control, and power generation applications that demand high reliability. Its advanced triple-redundant architecture ensures continuous operation and integrates fail-safe and self-monitoring features for critical environments.

Key Features

• Triple Redundancy: Executes programs on three independent processors to maintain operation even if a processor fails.
• Fail-Safe Operation: Drives the system to a predefined safe state (0 mA / 0 V) during fault conditions.
• Self-Testing: Continuously monitors module health and shuts down safely when a fault is detected.
• Dual Analog Channels: Supports two independent analog input channels for voltage, current, or temperature signals.
• Time-Limited Degraded Operation: Maintains partial operation in degraded mode while ensuring system safety.
• Diagnostics & Troubleshooting: Provides extensive monitoring tools for quick fault identification and resolution.
• Safety Certifications: Certified to IEC 61508 SIL 3 and EN 50128 TUV Rheinland for high integrity applications.

Technical Specifications

Physical Information

• Dimensions: 168 mm × 147 mm × 31.8 mm
• Weight: 0.85 kg
• Country of Origin: USA

Applications

The ICS Triplex T8432 is ideal for safety-critical industrial environments, including chemical plants, power generation facilities, and process automation systems requiring high fault tolerance.
