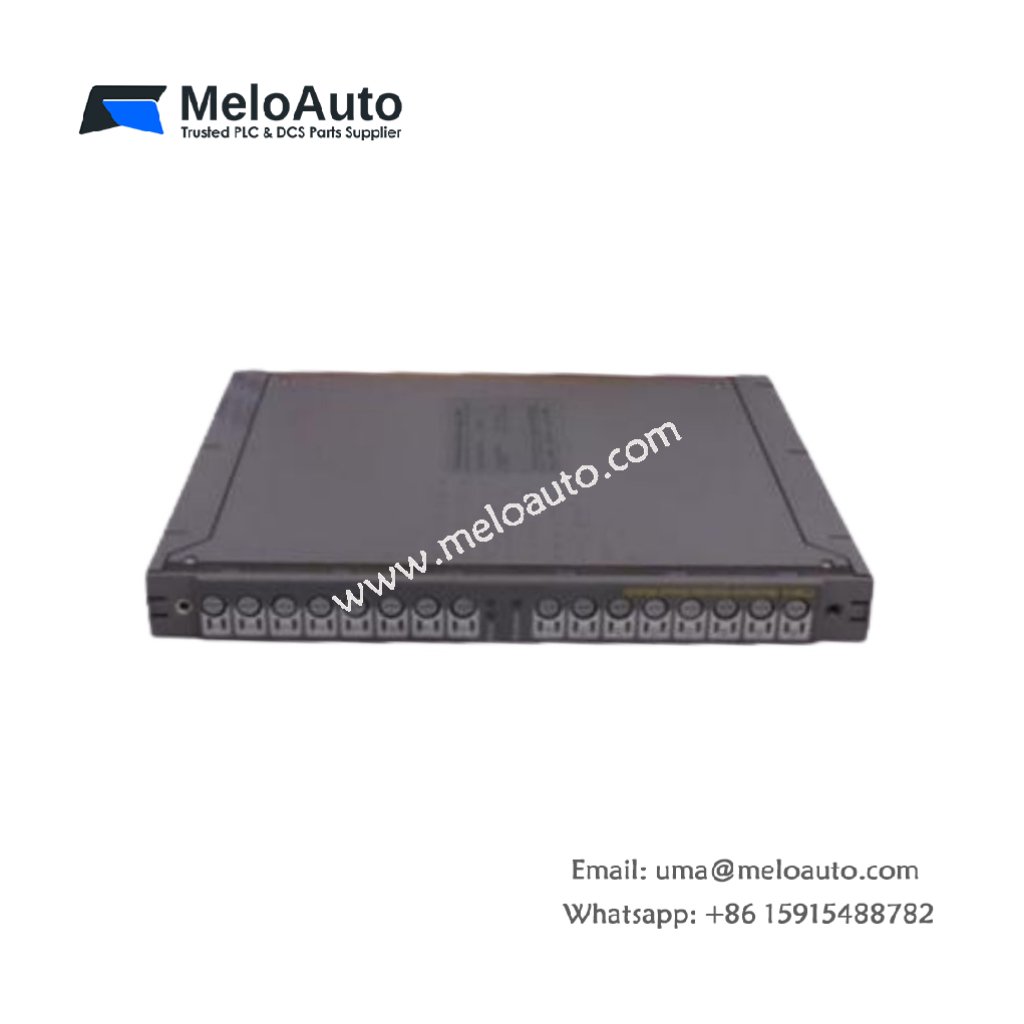

ICS Triplex T8240C I/O Power Supply Chassis

Product Overview

The ICS Triplex T8240C I/O Power Supply Chassis is a versatile, high-performance module designed for industrial control systems. Built for reliability and ease of use, the T8240C offers flexibility with up to 12 available slots for various input and output modules. Its compact design fits into a 19-inch 1U rack, making it suitable for space-constrained environments while maintaining high reliability in mission-critical applications. This chassis is ideal for ensuring continuous communication and data transfer between control modules, with fault tolerance and high availability built into its core.

Key Features

Modular Design: Supports up to 12 slots for custom configuration.
Compact 1U Chassis: Fits standard 19-inch racks for space-efficient installation.
Reliable Power Supply: Designed to handle 24 V DC input voltage for stable operation.
Durability: Built to withstand industrial conditions with a protection class of IP20.
Flexible Temperature Range: Operates in environments from -20°C to +60°C, making it suitable for diverse industrial settings.
Enhanced Fault Tolerance: Supports high availability with a 600,000-hour MTBF.
User-Friendly Connections: Equipped with screw terminals for simple wiring and setup.

Technical Specifications

Parameter	Specification
Model	T8240C
Series	ICS Triplex I/O Power Supply Chassis
Input Voltage	24 V DC
Current Draw	3.2 A
Power Consumption	80 W
Number of Slots	12
Dimensions (L x W x H)	48.1 cm x 28 cm x 8.8 cm
Weight	1.86 kg
Ambient Temperature Range	-20°C to +60°C
Storage Temperature Range	-30°C to +70°C
Relative Humidity	5% to 95% RH (non-condensing)
Protection Class	IP20
Max Operating Altitude	2000 m
Max Vibration	2 g
Insulation Resistance	≥ 100 MΩ
MTBF (Mean Time Between Failures)	600,000 hours
Connection Type	Screw terminal
Operating Frequency	50/60 Hz
Certifications	CE, UL, RoHS
