Overview

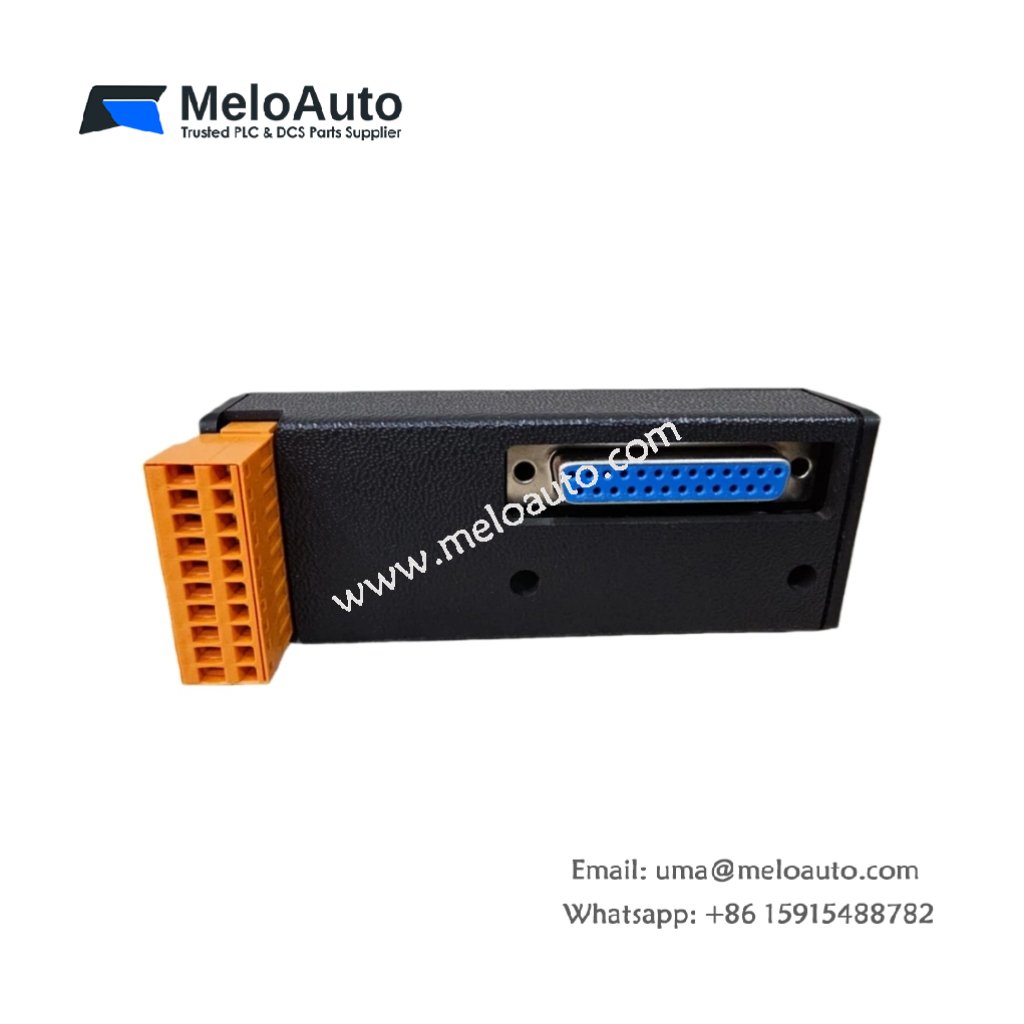

The ICS Triplex T8233 is a critical component of the Trusted Power System by Rockwell Automation. This Power Port Plug-In Diagnostic Interface efficiently converts main line voltages (either 110 Vac or 240 Vac) into reliable 24 Vdc for Trusted products or 28 Vdc adjustable field power. Designed for high-performance, this unit ensures seamless power distribution in industrial automation systems, supporting redundancy and diagnostic capabilities for continuous operation in mission-critical environments.
Key Features
- Input Voltage: The T8233 operates with 110 Vac or 240 Vac inputs, providing flexible power options for different industrial setups.
- Output Voltage: The unit delivers a stable 24 Vdc output for Trusted products and offers 28 Vdc adjustable field power to suit diverse field equipment needs.
- Modular Power Packs: Supports up to three 750 W Power Packs per 1U Power Shelf, ensuring high output density and reliable power for connected devices.
- Redundancy and Flexibility: The system supports redundant configurations and N+1 redundancy, enhancing reliability by minimizing the risk of power disruptions.
- Hot-Swappable Power Packs: The T8233 allows for hot-replaceable Power Packs, ensuring that maintenance can occur without shutting down the system.
- Current Management: Equipped with current sharing and limiting features, the module optimizes power distribution and prevents overloading.
- Power Factor Correction: This unit features power factor correction, ensuring efficient power usage and reducing energy loss.
- Diagnostic Monitoring: The T8233 offers comprehensive diagnostic information, monitoring input/output conditions and reporting any faults, ensuring system integrity.
- Voltage Adjustment: Configurable output voltage provides flexibility to adjust the system’s power requirements as needed.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | T8233 |
| Input Voltage | 110 Vac or 240 Vac |
| Output Voltage | 24 Vdc (for Trusted products), 28 Vdc adjustable |
| Power Packs | Up to three 750 W Power Packs per 1U Power Shelf |
| Redundancy Support | Redundant and N+1 configurations |
| Power Pack Replacement | Hot replaceable Power Packs |
| Current Management | Current sharing and limiting |
| Power Factor | Power factor correction |
| Diagnostics | Monitors input/output conditions, reports faults |
| Voltage Adjustment | Configurable output voltage |
Applications
The ICS Triplex T8233 is ideal for the following industrial automation applications:
- Power Distribution Systems: Ensures stable and reliable power supply in safety-critical environments.
- Industrial Control Systems: Supports high-availability control systems that require uninterrupted power for continuous operation.
- Automation and Control: Suitable for integration in Trusted Power Systems, enhancing power distribution and system performance.
Benefits
- High Availability: The T8233 supports redundant configurations, ensuring continuous power supply even in the event of component failure.
- Seamless Maintenance: Hot-swappable Power Packs minimize downtime during maintenance, offering uninterrupted service.
- Energy Efficiency: The power factor correction feature optimizes energy usage, reducing operational costs and improving system efficiency.
- Reliable Diagnostics: Comprehensive diagnostic tools help to identify potential issues before they cause system failure, ensuring smooth operations.
- Versatile Voltage Options: With the ability to adjust output voltage, the T8233 can be tailored to meet the specific needs of various industrial applications.
