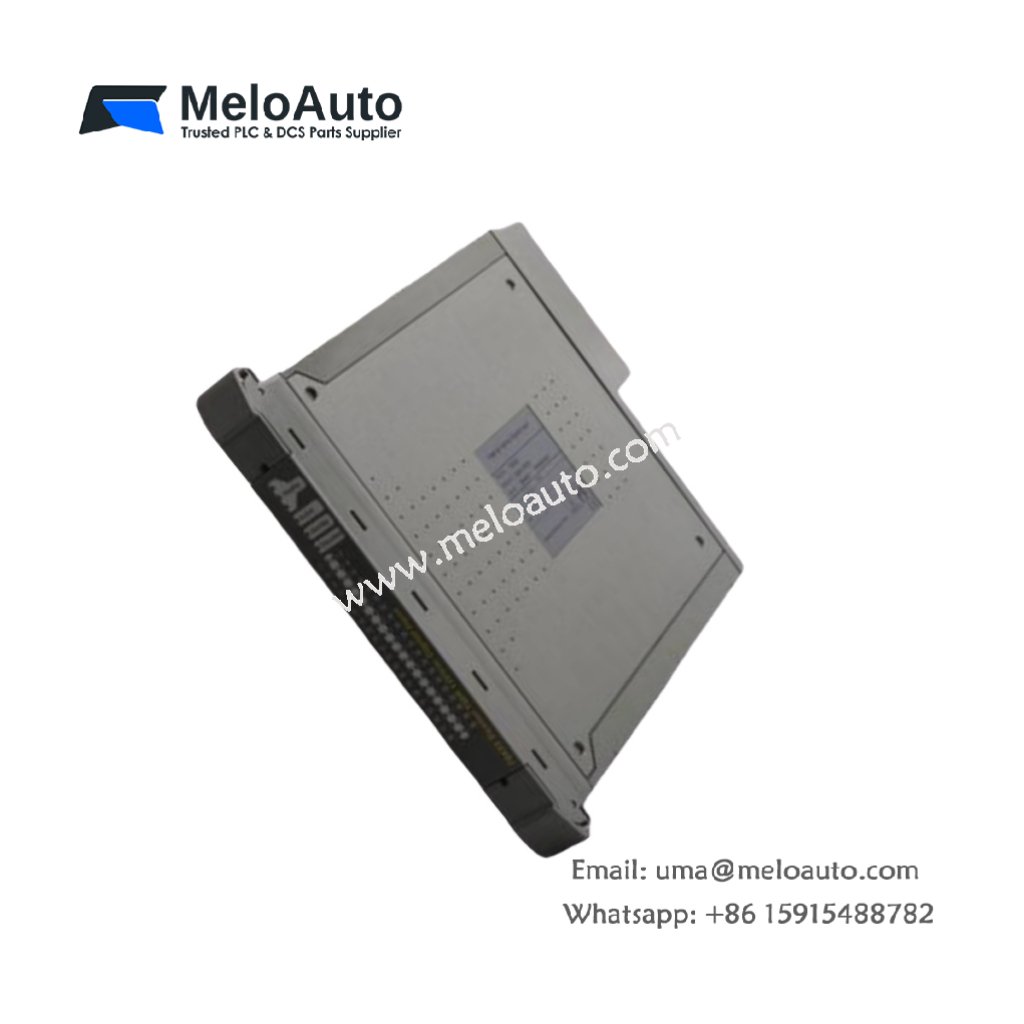

ICS Triplex T8225 | 24VDC Power Supply Module

Overview

The ICS Triplex T8225 is a 24VDC Power Supply Module designed for the ICS Triplex Trusted TMR Safety System. This system is vital for high-reliability industrial applications. The module guarantees continuous operation even under critical conditions, providing redundancy and ensuring the system’s resilience. Furthermore, the T8225 offers redundant power inputs and outputs, safeguarding your operations against potential power disruptions.

Key Features

• Redundant Power Supply: The T8225 features two redundant power inputs and two redundant outputs, ensuring seamless operation even if one source fails. This design ensures that your system remains operational, increasing its overall reliability.
• Hot-Swappable: Modules are designed to be hot-swapped, allowing for easy maintenance without interrupting system functionality. As a result, maintenance becomes straightforward and quick, minimizing downtime.
• Online Diagnostics: The integrated diagnostic capabilities help detect faults quickly and isolate them. With real-time fault monitoring, the system allows for immediate corrective actions, improving operational efficiency.
• Wide Temperature Range: The T8225 operates across a wide temperature range from -40°C to +70°C, making it adaptable to diverse industrial environments. Whether in extreme heat or cold, the module ensures optimal performance.
• High Vibration and Shock Resistance: Designed for industrial applications, the T8225 withstands high levels of vibration and shock, making it ideal for use in heavy-duty environments where equipment must endure harsh conditions.

Technical Specifications

Applications

The ICS Triplex T8225 is ideal for safety-critical industrial applications. With its redundancy and diagnostic features, it ensures reliable operation in various industries. Some of its key applications include:

• Safety Instrumented Systems (SIS)
• Emergency Shutdown Systems (ESD)
• Process Control Systems
• Industrial Automation Systems

Benefits

By integrating the ICS Triplex T8225, your TMR Safety System will have increased fault tolerance and reduced maintenance time. The redundant design ensures continuous operation even during maintenance, while the online diagnostics allow for faster fault detection and resolution. These features collectively contribute to enhanced operational safety and efficiency.

Dimensions and Weight

• Length: 200 mm
• Width: 100 mm
• Height: 50 mm
• Weight: 0.75 kg
