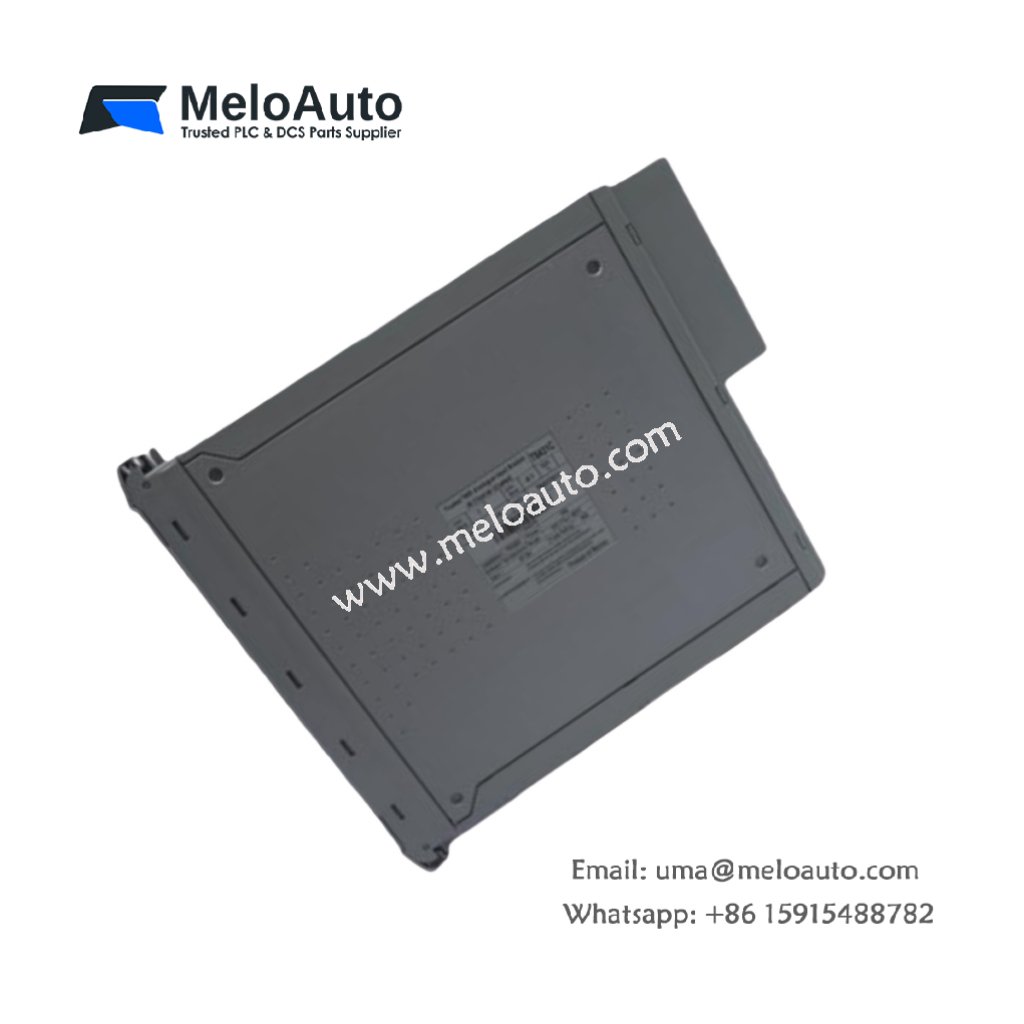

ICS Triplex T8202 – I/O Power Supply Chassis

Overview

The ICS Triplex T8202 is a robust I/O power supply chassis designed to support input and output modules in industrial control systems. Offering high performance and unmatched reliability, the T8202 ensures seamless operation in demanding environments. It features 40 Triple Modular Redundant (TMR) output channels, providing redundancy and fault tolerance to meet the critical requirements of safety-critical applications.

The T8202 supports comprehensive diagnostics, automatic line monitoring, and advanced protection mechanisms, making it an ideal choice for high-availability industrial systems. With its built-in overcurrent protection and optoelectronic isolation, this chassis offers reliable protection against system faults, ensuring minimal downtime and enhanced operational safety.

Key Features

Triple Modular Redundancy (TMR) Outputs: Offers 40 output channels for enhanced fault tolerance.
Comprehensive Diagnostics: Built-in diagnostics provide automatic self-checks for system health.
Automatic Line Monitoring: Detects open circuits, short circuits, and wiring issues, ensuring reliability.
Optoelectronic Isolation: Features 2500V pulse-tolerant isolation barriers for enhanced safety.
Overcurrent Protection: Includes automatic overcurrent protection for each channel, eliminating the need for external fuses.

Technical Specifications

Parameter	Specification
Output Channels	40 TMR (Triple Modular Redundant) output channels
Isolation	2500V pulse-tolerant optoelectronic isolation
Automatic Overcurrent Protection	Built-in overcurrent protection for each channel
Diagnostics	Automatic self-checks and comprehensive diagnostics
Line Monitoring	Detects open circuits, short circuits, and wiring faults
Operating Temperature	-5°C to 60°C (23°F to 140°F)
Non-Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Humidity	5 to 95% relative humidity
Dimensions (L x W x H)	266 mm x 31 mm x 303 mm (10.5″ x 1.2″ x 12″)
Weight	1.15 kg (2.5 lbs)

Country of Origin

Manufactured in: United States

Applications

The ICS Triplex T8202 is ideal for use in various high-reliability and safety-critical applications, such as:

Industrial Control Systems: Ensures reliable power distribution and fault tolerance for input/output modules.
Power Generation: Used for reliable I/O power in critical power generation systems.
Transportation Systems: Supports control systems in transportation and automation processes.
Military and Defense: Provides redundancy and fault tolerance for critical defense systems.

Why Choose the ICS Triplex T8202?

The ICS Triplex T8202 is engineered for high-availability systems requiring maximum reliability and fault tolerance. With features like TMR outputs, automatic diagnostics, and overcurrent protection, it ensures safe and efficient operation in the most demanding industrial environments.
