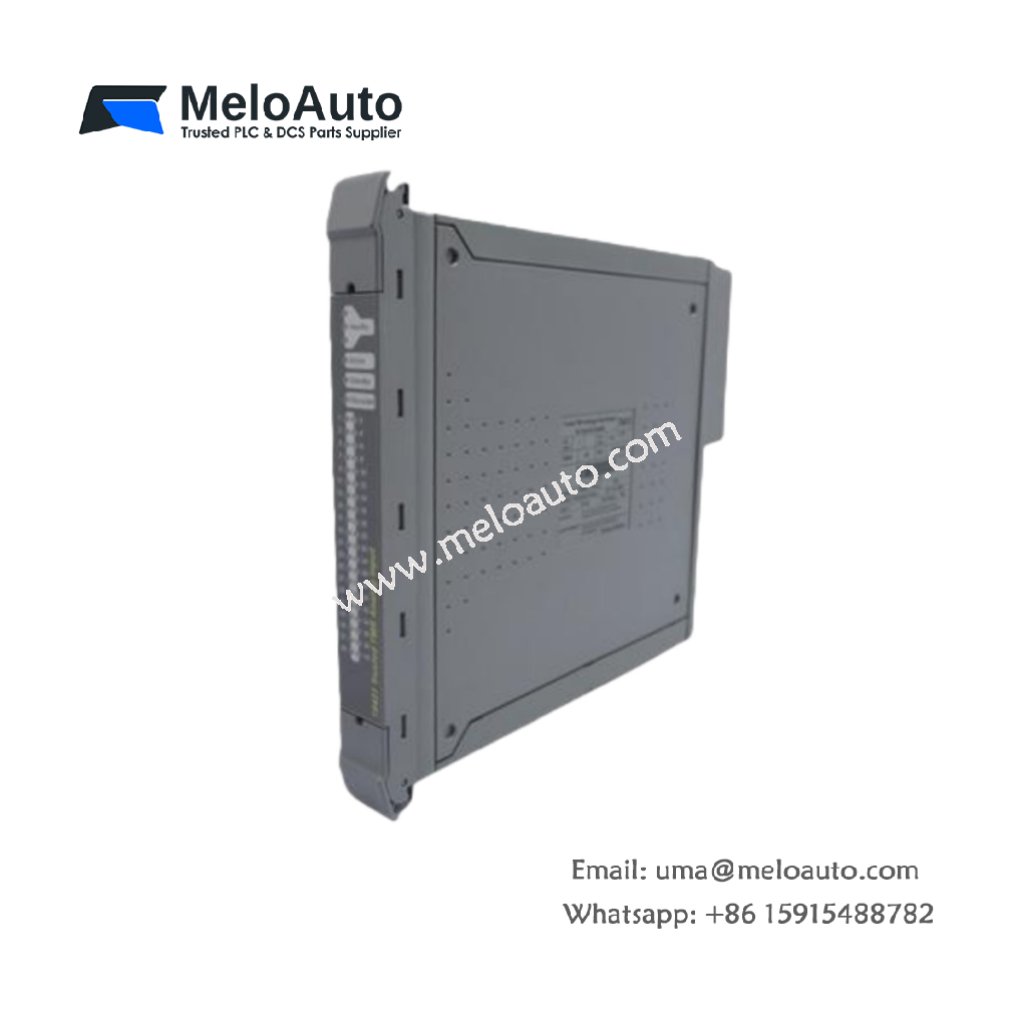

ICS Triplex T8120 Processor Interface Adapter

Overview

The ICS Triplex T8120 Processor Interface Adapter (PIA) provides seamless integration between a processor module and I/O modules in a Trusted Triplex Modular Redundant (TMR) system. This high-performance device is designed to meet the rigorous demands of safety-critical applications, ensuring both reliability and real-time operational response.

Key Features

High Reliability: With a failure rate of less than 10 FIT, the T8120 guarantees dependable operation in mission-critical environments.
High Performance: The device ensures low latency and high throughput, which are essential for real-time system response.
Safety Features: Integrated overvoltage, overcurrent, and short circuit protection shield system components from potential damage.
Conformal Coating: The T8120 features a conformal coating, offering additional protection against dust, moisture, and environmental contaminants, extending the unit’s lifespan.
Easy Installation: Installation is straightforward, minimizing configuration errors and ensuring quick deployment.
LED Indicators: LED lights clearly indicate the system’s status, such as power, signal presence, and fault conditions, simplifying troubleshooting efforts.

Technical Specifications

Parameter	Specification
Manufacturer	ICS Triplex
Model	T8120
Type	Processor Interface Adapter (PIA)
Connection Ports	Two configurable RS422/485 (2 or 4 wire) and one RS422/485 (2-wire) connection
Fault/Fail Connections	Connections for both Active and Standby processors
Processor Diagnostics	Dedicated connection for diagnostics
PSU Shutdown Monitor	Monitors PSU shutdown signals
Conformal Coating	Protects from environmental contaminants
Reliability	Failure rate < 10 FIT

Dimensions and Weight

Dimensions: Designed for easy integration into a 19-inch rack system
Weight: Approx. 1.2 kg (2.65 lbs)

Country of Origin

Manufactured in: United States

Applications

The ICS Triplex T8120 Processor Interface Adapter is ideal for use in Trusted TMR systems, with applications in:

Safety-Critical Systems: Ensures continuous, fail-safe operation where system reliability is essential.
Distributed Control Systems (DCS): Facilitates communication with external systems for seamless integration into control networks.
Process Control: Provides real-time monitoring and fault detection for complex industrial processes.
Power Generation and Petrochemical Industries: Perfect for industries requiring maximum reliability and fault tolerance in their control systems.

Conclusion

Designed to meet the highest standards of reliability and performance, the ICS Triplex T8120 is a critical component for Trusted TMR systems. Whether you are monitoring power generation, petrochemical processes, or other safety-critical operations, this adapter ensures optimal connectivity, protection, and real-time monitoring.
