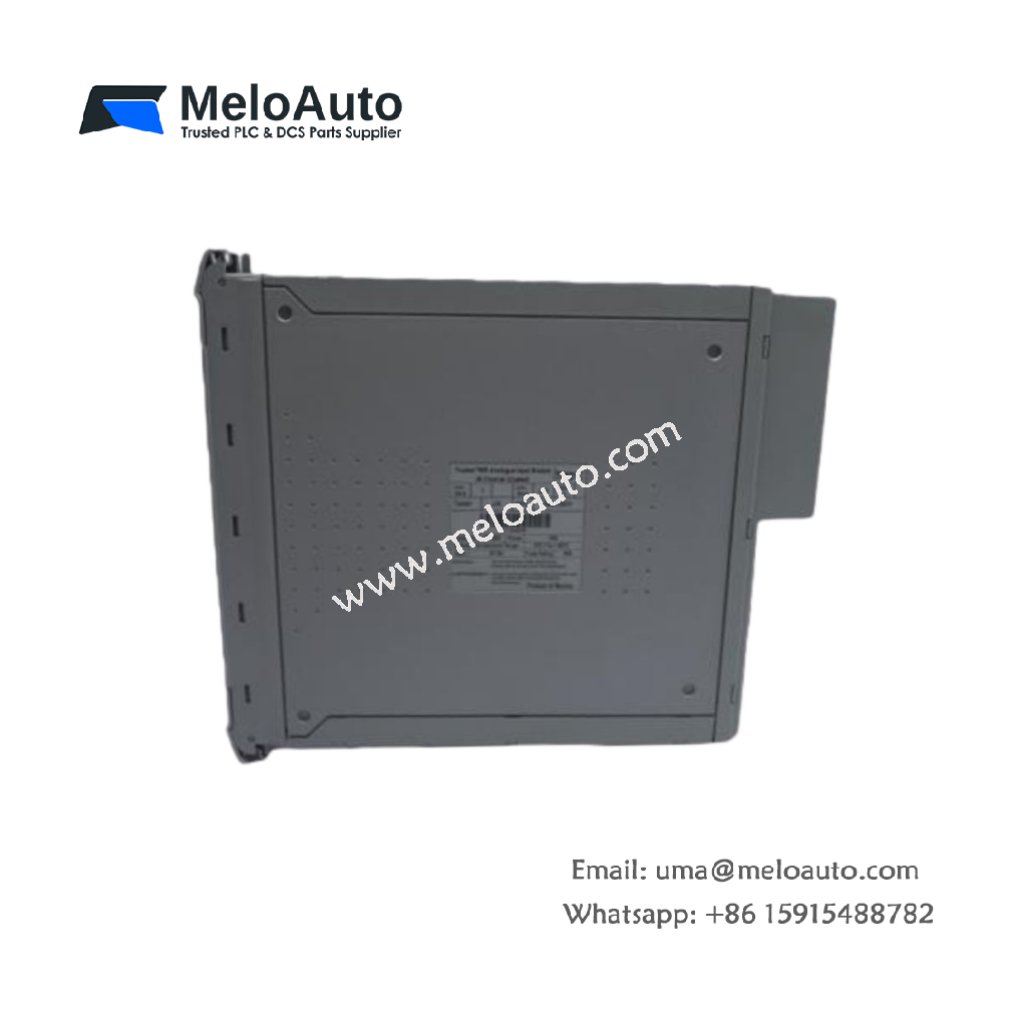

ICS Triplex T8110C Trusted TMR Processor

Product Overview

The ICS Triplex T8110C Trusted TMR Processor serves as the central processing unit in a Trusted System, providing reliable control and monitoring. This advanced module ensures seamless processing of both analogue and digital input/output (I/O) data across a Trusted TMR Inter-Module Communications Bus.

Designed for high-integrity applications, the ICS Triplex T8110C supports critical systems like fire and gas control, emergency shutdown, turbine control, and monitoring applications. Its robust architecture guarantees fault tolerance and continuous performance, making it a cornerstone for safety-critical industrial processes.

Key Features

Triple Modular Redundant (TMR): The ICS Triplex T8110C operates in a fault-tolerant 3-2-0 configuration, ensuring high reliability and continuous operation even during component failures.
Hardware-Implemented Fault Tolerant (HIFT) Architecture: This design improves system resilience by implementing fault tolerance directly in hardware.
Fast Fault Recognition & Response: The module features dedicated hardware and software testing regimes for extremely quick fault detection and response times.
Automatic Fault Handling: The processor automatically handles faults without triggering unnecessary alarms, ensuring smoother operation in critical environments.
Time-Stamped Fault Historian: This function provides a detailed log of all faults, time-stamped for accurate tracking and analysis.
Hot Replacement Capability: The ICS Triplex T8110C supports hot replacement, allowing modules to be swapped without reloading programs or interrupting system operation.
IEC 61131-3 Compliant: The module supports a full suite of IEC 61131-3 programming languages for flexible and standardized control programming.
Front Panel Indicators: Clear visual indicators on the front panel display module health and operational status.
RS232 Serial Diagnostics Port: This port provides access for system monitoring, configuration, and programming.
Time Synchronization: The ICS Triplex T8110C supports IRIG-B002 and 122 time synchronization signals (available on the T8110B model).
Processor Fault Contacts: Active and Standby processor fault and failure contacts help monitor processor performance and system health.
Flexible Connectivity: Includes two RS422/485 configurable 2 or 4 wire connections and one RS485 2-wire connection (available on T8110B model).
TÜV Certified: Compliant with IEC 61508 SIL 3 safety standards, ensuring the highest safety integrity levels.

Technical Specifications

Parameter	Value
Model	ICS Triplex T8110C
Processor Type	Trusted TMR Processor
Fault Tolerance	Triple Modular Redundant (TMR) 3-2-0 operation
Architecture	Hardware Implemented Fault Tolerant (HIFT)
Programming	IEC 61131-3 (Full suite)
Diagnostic Port	RS232 Serial Port
Time Synchronization	IRIG-B002 and 122 (T8110B model only)
Fault Handling	Automatic fault management without nuisance alarms
Hot Replacement	Yes
Certifications	TÜV IEC 61508 SIL 3
Connectivity	2 RS422/485 2 or 4 wire, 1 RS485 2-wire (T8110B only)
Front Panel Indicators	Health and status indicators
Temperature Range	-20°C to +60°C (Typical)
