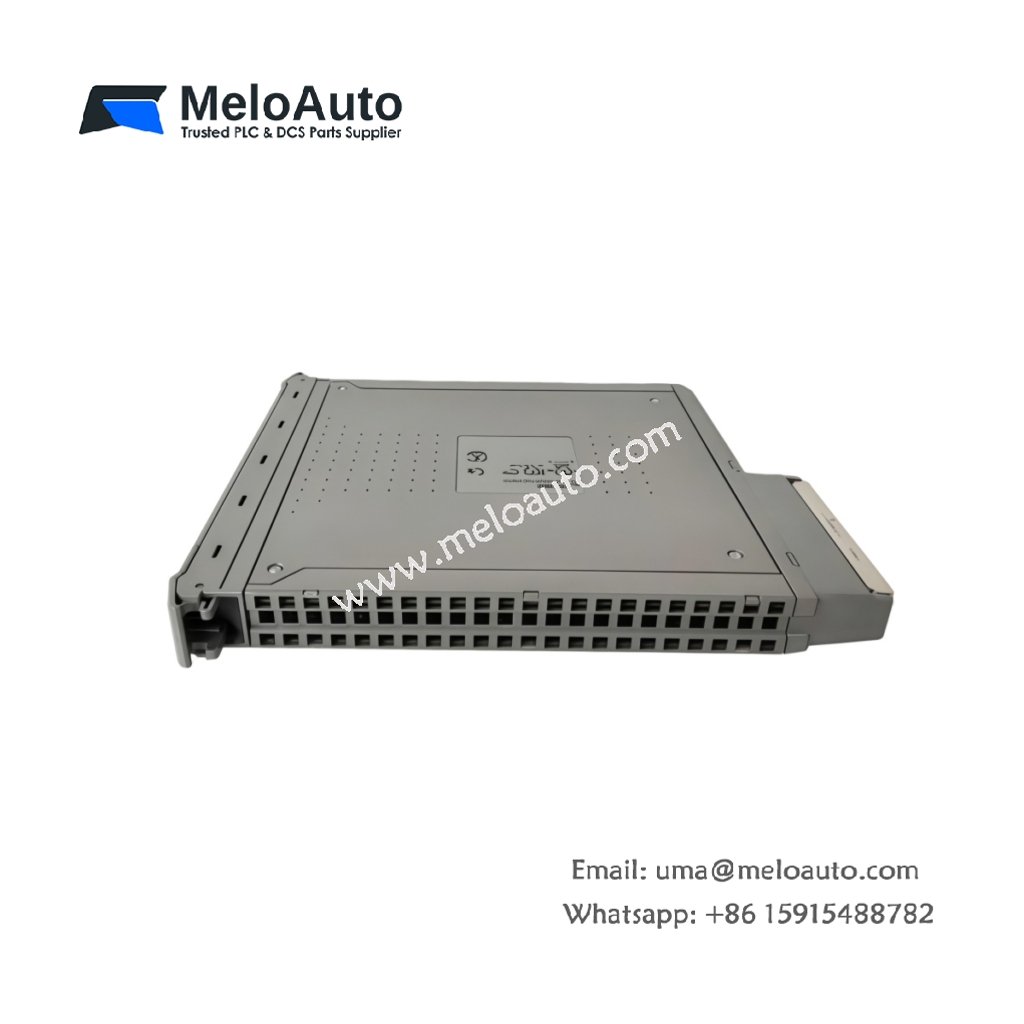

ICS Triplex T7150A Communication Module

The ICS Triplex T7150A handles data exchange between Trusted and Regent controllers across plant networks. System integrators choose this module when controllers must share process data reliably. Consequently, the unit sustains deterministic communication across redundant network paths.

Physical Dimensions and Weight Data

Cabinet depth often dictates how technicians arrange communication hardware inside racks. Therefore, the ICS Triplex T7150A keeps a compact profile while supporting dual network links. It weighs roughly 1.3 kg and fits a standard 6U rack slot. Additionally, its dimensions measure 233 mm by 160 mm by 40 mm.

Interfaces and Connectivity Features

Stable data exchange depends on secure connectors at every network port. The ICS Triplex T7150A provides dual redundant backplane interfaces for critical signal paths. Furthermore, front-panel LEDs let technicians verify link status instantly. Hot-swap support allows replacements without shutting down the control process.

Component Count and Energy Storage

Internal architecture shapes both diagnostic depth and service life. The ICS Triplex T7150A carries more than 320 discrete components across its processing stages. Moreover, a lithium battery retains configuration data for up to 90 days. This storage protects non-volatile memory whenever plant power drops.

Key Technical Specifications

Parameter	Specification
Module Type	Communication module
Dimensions	233 × 160 × 40 mm
Weight	1.3 kg
Rack Size	6U
Backplane Interfaces	Dual redundant
Network Ports	2 × Ethernet
Data Rate	100 Mbps
Component Count	320+ discrete parts
Energy Storage	Lithium battery, 90-day retention
Hot-Swap Support	Yes
Operating Temperature	0°C to 60°C
Isolation Voltage	500 VDC
Protocol Support	Trusted and Regent native

Protocol Performance and Compliance

Deterministic transfer directly influences overall control loop accuracy. The ICS Triplex T7150A maintains low latency across all redundant network paths. Meanwhile, isolation voltage reaches 500 VDC between network and internal circuits. Diagnostic coverage exceeds 99%, which strengthens fault detection.

Industrial sites also demand strict safety certifications before deployment. The module complies with IEC 61508 SIL 3 functional safety requirements. In addition, it meets CE and UL standards for electromagnetic compatibility. These credentials support dependable operation in harsh plant environments.
