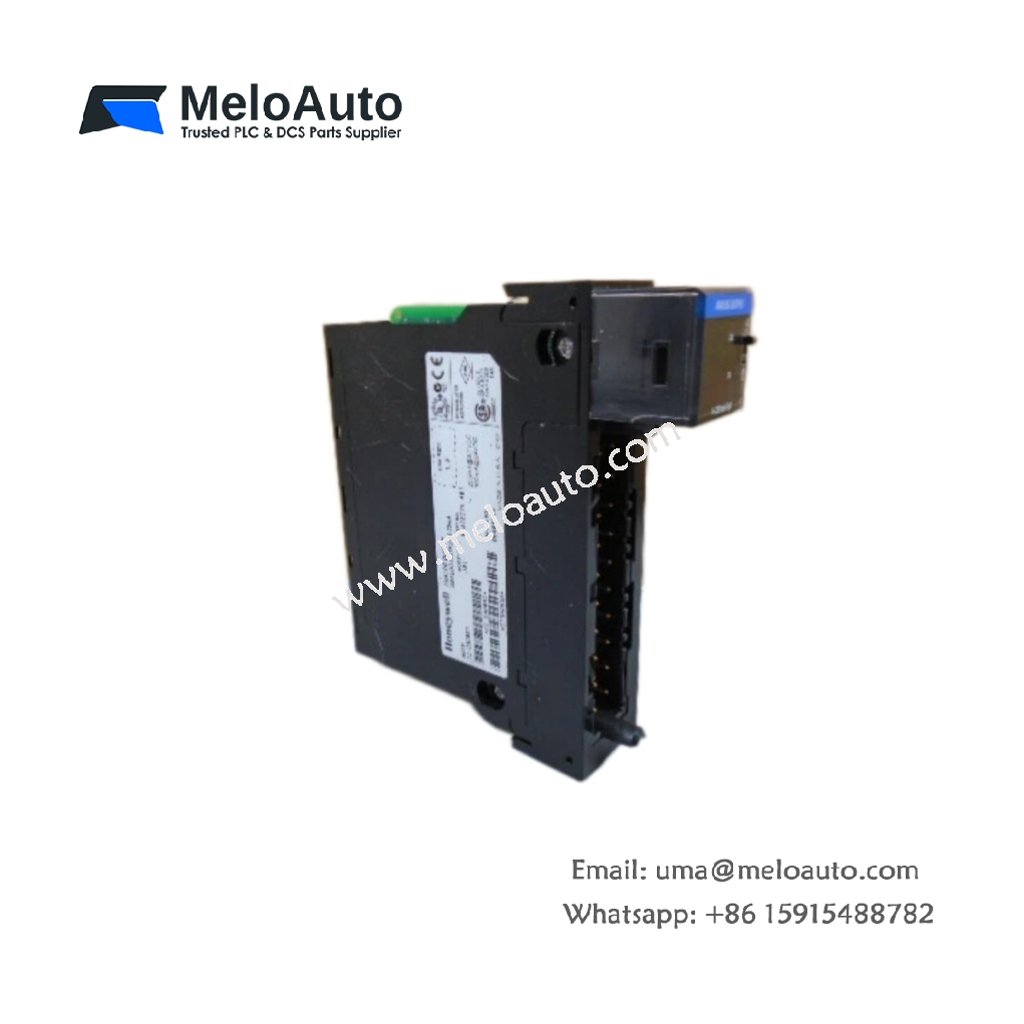

Honeywell TK-OAH061 Analog Output Module

This analog output module delivers precise current signals for Honeywell Experion process control systems. The TK-OAH061 converts digital control commands into 4-20 mA outputs for field instruments. It drives valves, positioners, and actuators with exceptional accuracy and stability. Control engineers choose this module for its high channel density and reliable performance. Its compact design fits seamlessly into the Experion I/O rack configuration.

Technical Specifications Summary

Parameter	Specification
Output Channels	6 isolated analog current outputs
Output Type	4-20 mA (standard process current loop)
Resolution	13-bit for high-precision output control
Accuracy	±0.05% of full scale at 25 °C
Temperature Drift	±25 ppm/°C maximum
Output Load Range	0-800 Ω at 24 V DC field power
Update Rate	5 ms per channel (all 6 in 30 ms)
Step Response	< 3 ms to 95% of final value
Output Protection	Short-circuit and overcurrent protection
Open Loop Detection	Automatic detection for wiring faults
Isolation Voltage	1500 V RMS between field and logic
Field Power Required	24 V DC ±10%, 150 mA maximum
LED Indicators	Power and channel fault status
Dimensions (H x W x D)	130 mm x 40 mm x 120 mm
Weight	0.3 kg
Power Consumption	3 W from +5 V DC backplane
Operating Temperature	0 °C to +55 °C
Storage Temperature	-40 °C to +85 °C
Relative Humidity	5% to 95% non-condensing

Output Channel Architecture and Configuration

The module provides six isolated analog output channels for current loop applications. Each channel sources a standard 4-20 mA signal to drive field instruments. The TK-OAH061 configures each channel individually through Experion software. It delivers exceptional accuracy with 13-bit resolution for precise control. The output load range extends from 0 to 800 ohms at 24 V DC. This load capacity suits long cable runs and high-impedance devices. Users can set output limits and ramp rates per channel for process safety. The module supports fail-safe output states for emergency conditions.

Precision Performance and Measurement Accuracy

The module delivers high-precision outputs with minimal error across its operating range. Accuracy reaches ±0.05% of full scale at 25 degrees Celsius ambient temperature. Temperature drift remains within ±25 parts per million per degree Celsius. The TK-OAH061 maintains stable output signals despite temperature variations. It includes automatic calibration routines for long-term accuracy. The module features 13-bit resolution for smooth and fine control adjustment. This resolution ensures precise positioning of control valves and actuators. These specifications suit demanding process control applications in refining and chemical plants.

Fast Response and Dynamic Performance

The module provides rapid output response for dynamic control requirements. It updates each channel within 5 milliseconds of receiving a new command. The module completes a full cycle across all 6 channels in 30 milliseconds. Step response time to 95% of final value is under 3 milliseconds. This fast response supports high-speed control loops and rapid process changes. The TK-OAH061 synchronizes output updates for coordinated multi-loop control. Engineers can configure the update sequencing to match specific application needs. This dynamic performance meets the demands of modern process automation.

Protection Features and Diagnostic Capabilities

The module incorporates comprehensive output protection and diagnostic features. Short-circuit protection on each channel prevents damage from wiring faults. Overcurrent limiting protects the output driver under abnormal load conditions. The TK-OAH061 automatically detects open circuits in the current loop wiring. It reports these faults to the host controller for operator notification. LED indicators display power status and individual channel faults clearly. The module also monitors field power supply status continuously. These protective and diagnostic features reduce unplanned downtime significantly.

Mechanical Construction and Installation Requirements

The module features a compact, space-efficient design for rack installation. It measures 130 millimeters high, 40 millimeters wide, and 120 millimeters deep. The unit weighs 0.3 kilograms for convenient handling. Power consumption draws 3 watts from the +5 V DC backplane supply. The module requires a separate 24 V DC field power source for output operation. A removable terminal block accepts 22-14 AWG field wiring securely. Installation involves inserting the module and connecting field wiring. The front panel provides easy access for inspection and maintenance.

Environmental Specifications and Operational Durability

Industrial process environments present moderate but consistent thermal demands. The TK-OAH061 operates reliably from 0 °C to 55 °C ambient temperatures. Storage conditions range from -40 °C to 85 °C for shipping and logistics. Humidity tolerance covers 5% to 95% without condensation affecting performance. Conformal coating protects circuit boards from moisture and airborne contaminants. The module includes transient suppression on all power and signal connections. These environmental safeguards ensure long-term dependable operation.
