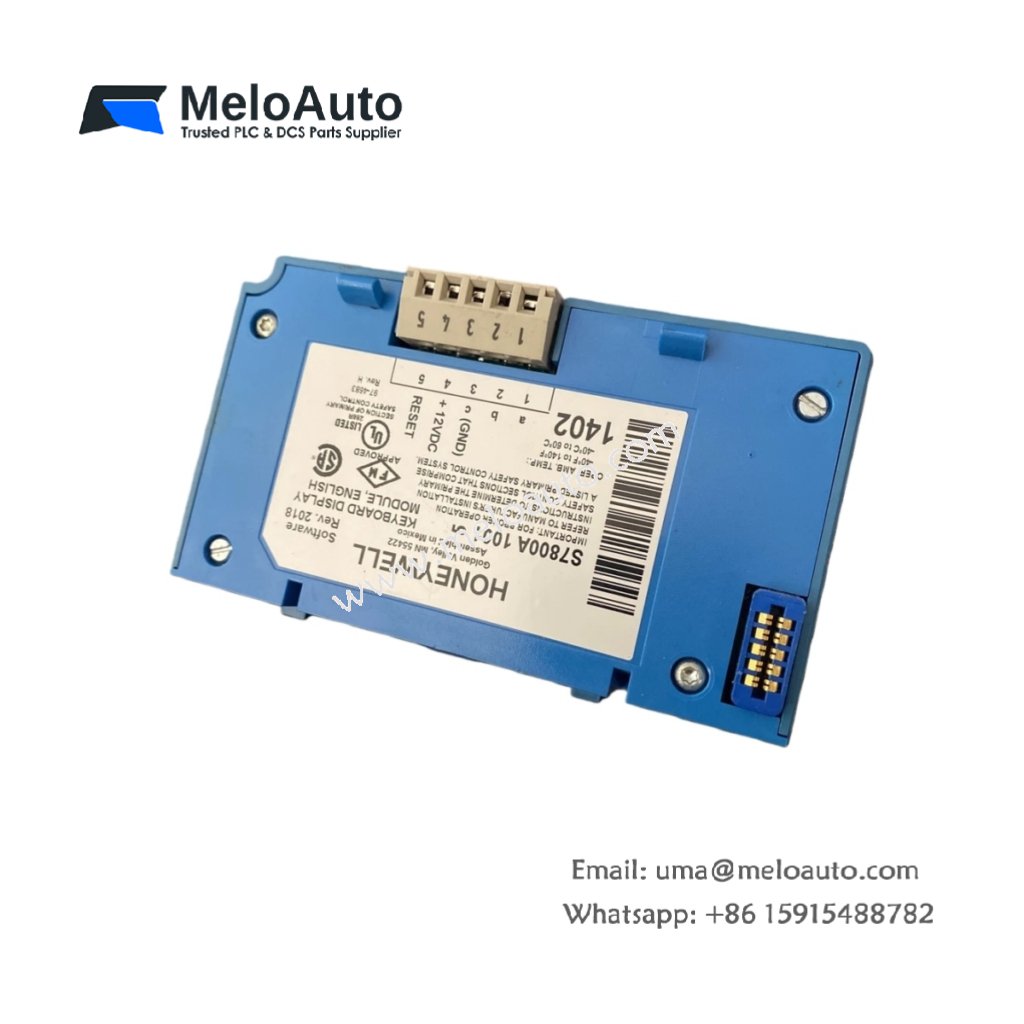

Honeywell S7800A1001 Burner Control Keyboard Display Module

The Honeywell S7800A1001 Burner Control Keyboard Display Module provides operators with essential control and monitoring features for burner systems. This intuitive display module offers easy interaction with burner controllers, providing real-time data, system diagnostics, and fault information. It is compatible with a variety of Honeywell burner control systems, making it a versatile solution for industrial applications.

Key Features

User-Friendly Interface: The S7800A1001 features a clear and easy-to-read display for quick diagnostics and burner status.
Real-Time Data Monitoring: Monitor key system parameters in real time to ensure optimal burner operation.
Diagnostics and Fault Indication: Quickly identify system faults with real-time diagnostics and fault codes.
Enhanced Control: Provides direct control over burner operation, including pre-ignition, flame supervision, and system status.
Compatibility: Works seamlessly with various Honeywell burner control modules, ensuring easy integration into existing systems.

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model	S7800A1001
Product Type	Burner Control Keyboard Display Module
Dimensions (inches)	6.5″ W x 4″ H x 2″ D
Dimensions (mm)	165 mm W x 102 mm H x 51 mm D
Weight	1 lb 4 oz (0.57 kg)
Display	LCD screen with backlight
Voltage	24 VDC
Current Consumption	0.5 A maximum
Operating Temperature Range	-40°F to +140°F (-40°C to +60°C)
Humidity	85% RH max (non-condensing)
Protection Rating	IP20
Mounting	Panel or surface mount
Communication Interface	RS485 (Modbus RTU)
Approvals	UL, CSA, CE

Applications

The Honeywell S7800A1001 Burner Control Keyboard Display Module is ideal for industrial burner management systems, including those in heating, combustion, and process control applications. It simplifies monitoring, diagnostics, and control, ensuring smooth and reliable operation of burner systems.

Additional Features

Clear Fault Reporting: Display provides visual alerts for fault conditions, helping operators troubleshoot quickly.
Real-Time System Feedback: View system performance, ensuring quick responses to changes in burner operation.
Easy to Install: The module is designed for easy installation and integration into Honeywell control systems.
