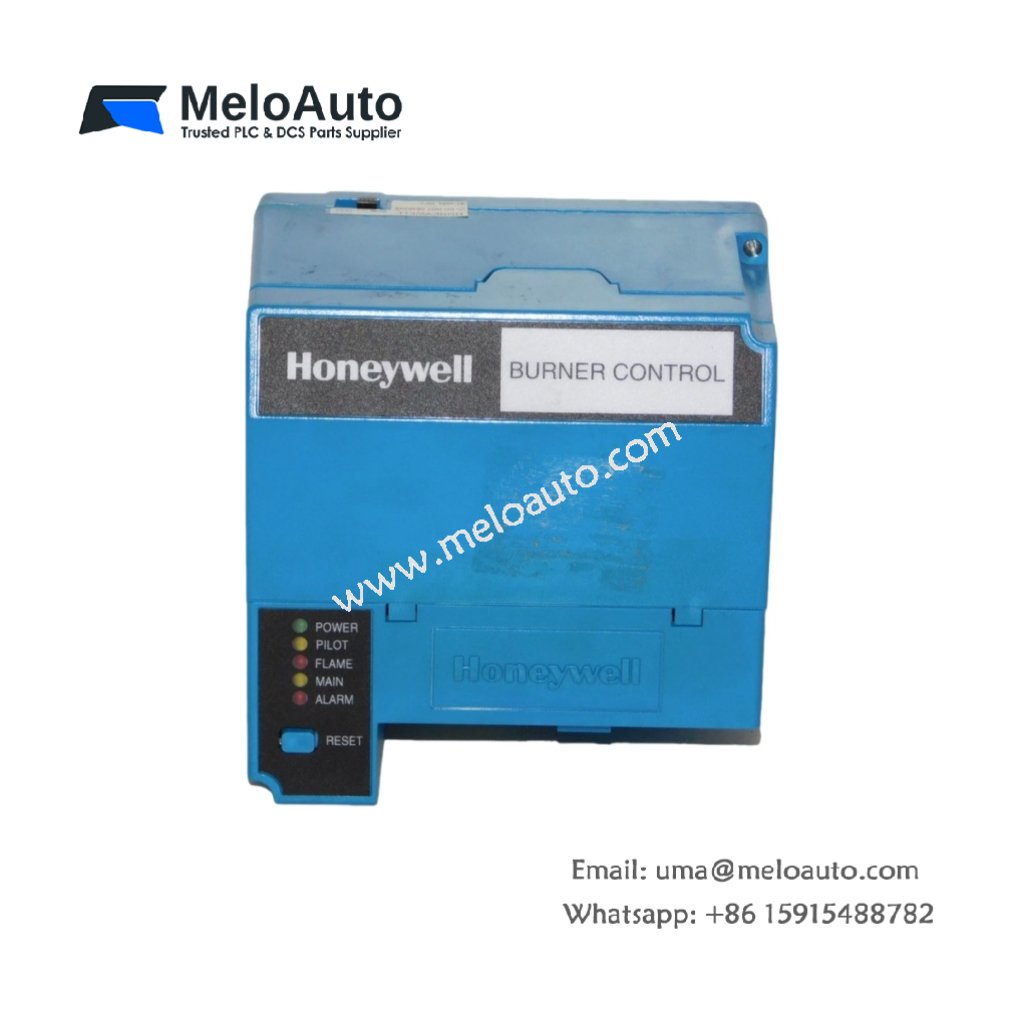

Honeywell RM7896C1010 Primary Burner Control Module

The Honeywell RM7896C1010 is a microprocessor-based, full-function primary burner control module designed for gas, oil, or combination fuel single burner applications. This advanced burner control system ensures optimal safety, functionality, and enhanced performance in industrial combustion systems. It integrates seamlessly into both new and existing setups, providing precise burner sequencing, flame supervision, and reliable diagnostics.

Key Features:

Automatic Burner Sequencing: The module automatically sequences the burner for efficient operation, ensuring optimal fuel combustion and system performance.
Flame Supervision: Constant flame monitoring enhances safety by ensuring proper flame detection during operation.
System Diagnostics: Built-in diagnostics provide real-time status updates, making troubleshooting easy. The system automatically detects faults and logs relevant data.
Status Indication: The module provides clear system status indicators, making it easy for operators to monitor performance.
Post-Purge Function: A 15-second post-purge cycle ensures proper system ventilation after burner shutdown to maintain safety and efficiency.
LED Indicators: Five LEDs display sequence information for quick visual feedback during operation.

Technical Specifications:

Specification	Value
Model Number	RM7896C1010
Type	Primary Burner Control Module
Voltage Rating	120V AC
Functionality	On-Off Primary Control with Pre/Post-Purge
Control Type	Microprocessor-based
System Components	Subbase, amplifier, purge card required for operation
Post-Purge Duration	15 seconds
Flame Supervision	Integrated flame supervision
Indicators	Five LEDs showing sequence information
Memory	Nonvolatile memory retains history files and sequencing status
Diagnostics	System diagnostics and troubleshooting capabilities
Optional Accessories	PC interface, keyboard display, DATA CONTROLBUS™ MODULE, remote display module, first-out expanded annunciator, COMBUSTION SYSTEM MANAGER™ software
Safety Features	Optional remote reset, report generation capability
Certifications	UL Certified

Why Choose the Honeywell RM7896C1010 Burner Control Module?

The Honeywell RM7896C1010 offers superior functionality and safety for industrial combustion applications. With its microprocessor-based design, it exceeds the capabilities of conventional burner controls, offering automatic sequencing, flame supervision, and a comprehensive suite of diagnostic tools. The 15-second post-purge function ensures a safe shutdown, while the LED indicators provide clear status information for easier operation.

This control module is ideal for users seeking an advanced, reliable solution for their combustion systems. Whether you are upgrading an existing burner control system or implementing a new one, the Honeywell RM7896C1010 offers unmatched performance, safety, and convenience. Optional features like remote reset and report generation further enhance its versatility.
