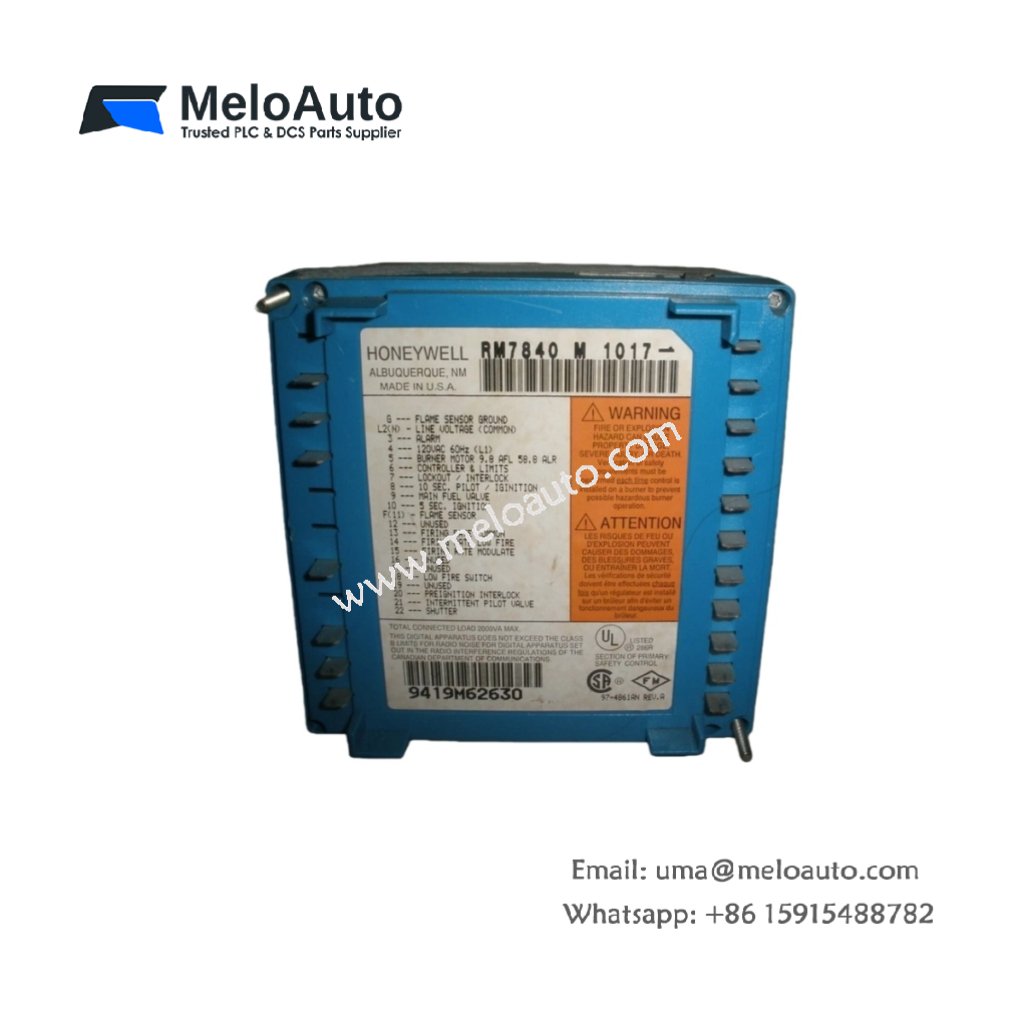

Honeywell RM7840M1017 FSG 7800 Programmer Control

The Honeywell RM7840M1017 FSG 7800 Programmer Control delivers precise management for industrial burner systems. It integrates seamlessly with the 7800 Series components, enabling full control over ignition, flame monitoring, and fuel sequencing. Operators benefit from intuitive programming, reliable operation, and enhanced system diagnostics for safe and efficient burner performance.

Key Features and Benefits

Advanced Burner Programming: The RM7840M1017 allows flexible programming of ignition sequences, post-purge, and flame supervision for multiple burners.
System Compatibility: Works alongside the 7800 Series relay modules and display interfaces to enhance automation and operational efficiency.
Intuitive Interface: Includes a user-friendly programming interface that simplifies configuration and enables easy monitoring of system status.
Safety Controls: Supports pre-ignition safety checks, lockout functions, and fault detection to prevent equipment damage.
Efficient Energy Use: Maintains low power consumption while controlling complex burner sequences accurately.

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model	RM7840M1017
Product Type	Programmer Control
Series	7800 Series
Voltage Rating	120 VAC (+10/-15%)
Frequency	50/60 Hz (±10%)
Power Consumption	10 W
Control Functions	Pre-ignition, Lockout, Flame Supervision, Post-Purge
Interfaces	Keyboard Display Module, Relay Modules
Weight	0.75 kg
Dimensions (L x W x H)	10 cm x 8 cm x 5 cm
Operating Temperature Range	-40°F to 140°F (-40°C to +60°C)
Humidity	85% relative humidity, non-condensing
Compliance	CE, UL, CSA

Applications

The Honeywell RM7840M1017 suits industrial burner applications requiring programmable sequencing, flame supervision, and operational safety. Its integration with 7800 Series relay and display modules ensures reliable and efficient burner control across diverse industrial systems.
