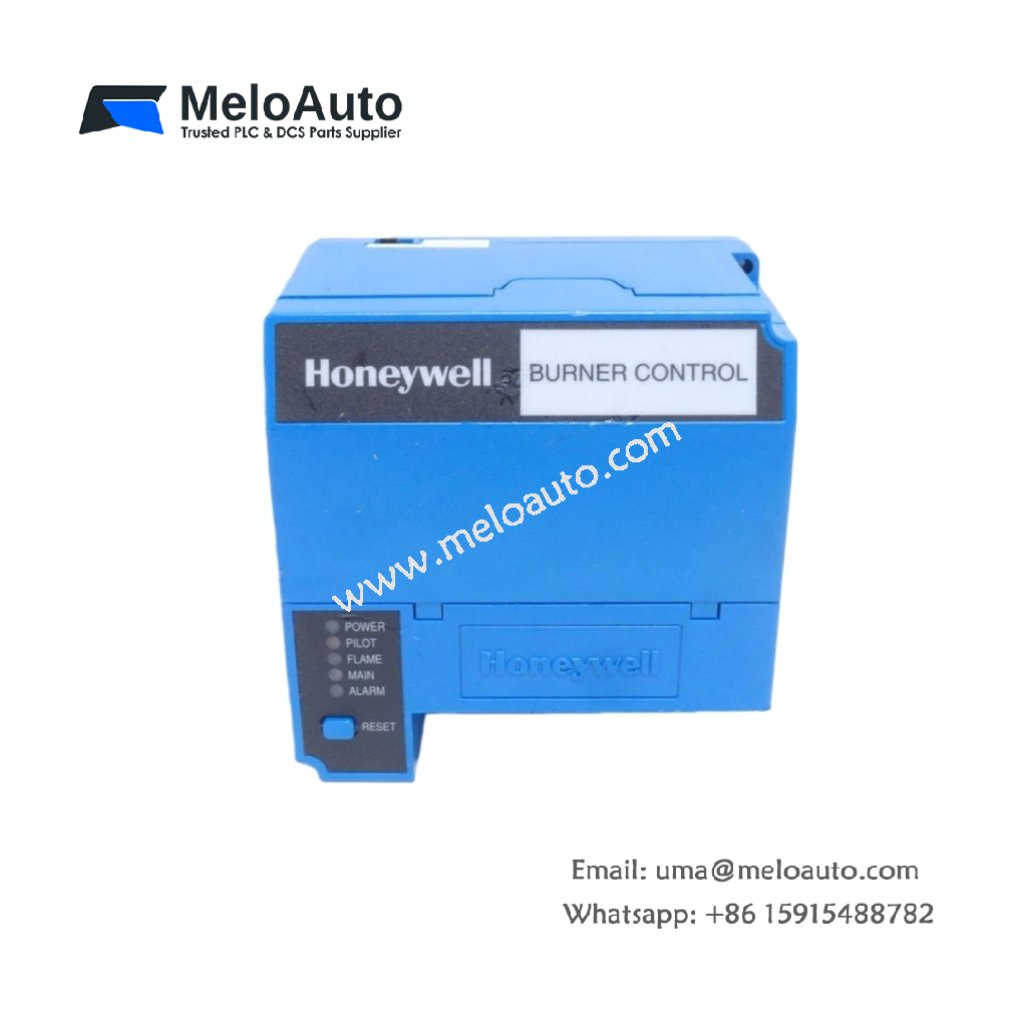

Honeywell RM7840L1026 Burner Control Unit

The Honeywell RM7840L1026 is a high-performance burner control unit from the 7800 Series. It offers reliable programming control and superior flame management, making it ideal for industrial combustion systems. Additionally, this unit includes multiple features like airflow checks, early spark termination, and post-purge functionality. These features provide a safe and efficient burner operation, ensuring peak performance in various industrial applications.

Key Features & Specifications of Honeywell RM7840L1026

• Manufacturer: Honeywell
• Part Number: RM7840L1026
• Type: Burner Control Unit
• Series: 7800 Series
• Control Type: Programming Control
• Pilot Type: Interrupted Pilot
• Valve Type: Intermittent Second Stage Pilot Valve
• User Selectable: Airflow Check
• Spark Termination: 5-second Early Spark Termination
• Post-Purge: 15-second Post Purge
• Dust Cover: Included for enhanced protection
• Voltage: 120 VAC, 50/60 Hz

Detailed Overview of Honeywell RM7840L1026

The Honeywell RM7840L1026 is an advanced burner control unit, designed to manage a wide range of industrial combustion systems efficiently. This unit supports interrupted pilot types and intermittent second-stage pilot valves, providing enhanced flexibility for managing complex burner operations. As a result, operators can achieve optimal performance and safety in any application.

One of the key features of the RM7840L1026 is its user-selectable airflow check. This allows operators to easily adjust the airflow, ensuring optimal burner efficiency and performance. Furthermore, the 5-second early spark termination feature quickly cuts off the spark in case of ignition failure, minimizing potential safety risks.

Moreover, the 15-second post-purge function ensures that combustion gases are safely removed from the burner system after it shuts down. This feature prevents any hazardous build-up in the system, which could otherwise lead to operational issues. To protect the unit from contaminants, the dust cover shields the internal components, extending the unit’s lifespan.

The RM7840L1026 is powered by 120 VAC and supports 50/60 Hz operation, making it suitable for a variety of industrial applications. It also integrates seamlessly with other Honeywell components, offering easy serviceability and long-term reliability.

Technical Specifications

Application and Installation of Honeywell RM7840L1026

The Honeywell RM7840L1026 is perfect for managing a variety of combustion systems, including industrial furnaces, boilers, and heating equipment. The unit’s user-selectable airflow check allows it to be fine-tuned for maximum efficiency, while its early spark termination ensures a quick response to ignition failures.

Moreover, the 15-second post-purge function ensures that the burner system is properly cleared after operation. This reduces the risk of dangerous gas build-up. The included dust cover is an added advantage, protecting the unit against dirt and debris that could compromise its performance.

With its easy integration into existing Honeywell systems, the RM7840L1026 simplifies installation and enhances system longevity. It’s a reliable solution for industries requiring high-efficiency combustion management.
