Honeywell RM7823A1016 Flame Switch

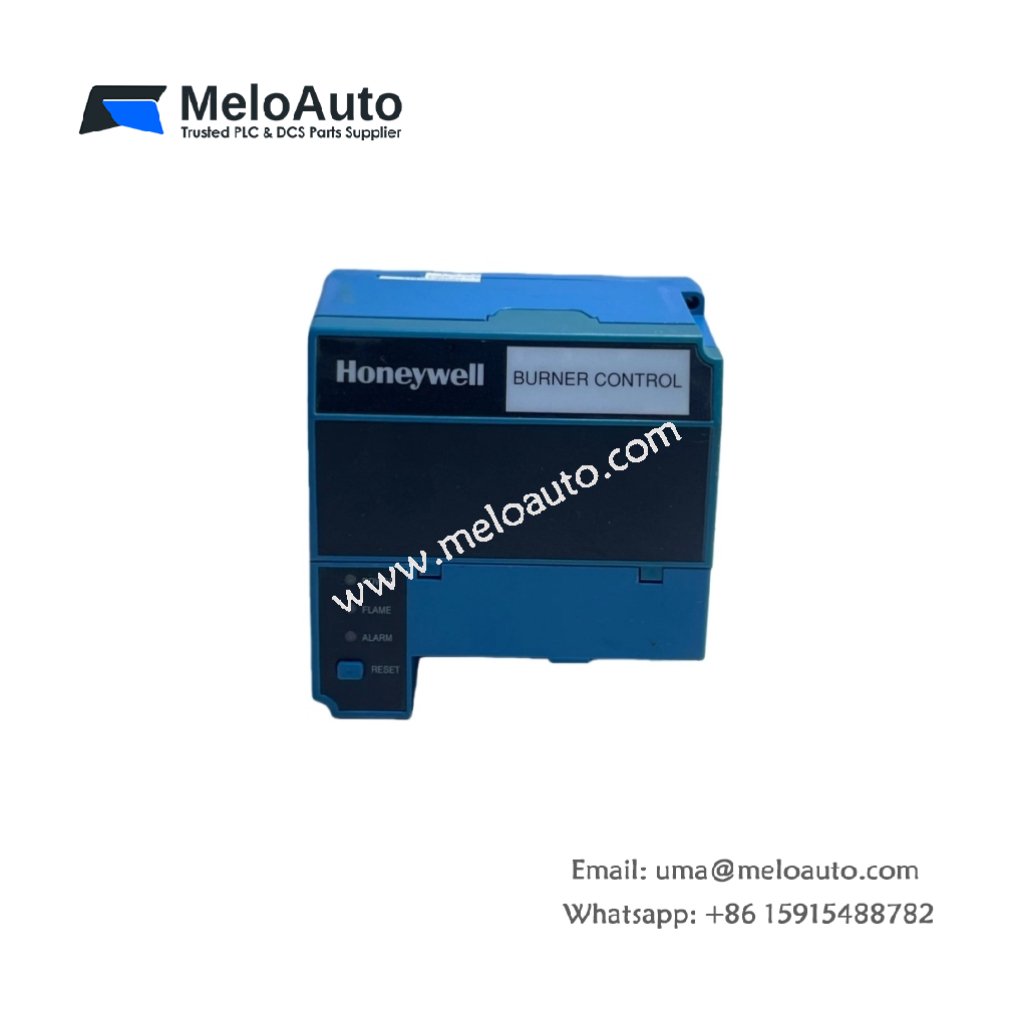

The Honeywell RM7823A1016 Flame Switch is an advanced microprocessor-based integrated device designed to detect a flame using rectification, ultraviolet (UV), or infrared (IR) sources. This unit offers superior safety, functional capabilities, and features that exceed conventional flame detection controls. It is an essential component in flame safeguard systems, ensuring reliable operation and providing critical safety features for industrial applications.

Key Features and Specifications of the RM7823A1016 Flame Switch

The Honeywell RM7823A1016 Flame Switch combines reliability with advanced technology. Below are its key specifications:

Specification	Details
Model	RM7823A1016
Product Type	Flame Switch with Two SPDT Outputs
Detection Method	Rectification, UV, or IR Flame Detection
Relay Outputs	Two SPDT relays (Flame present or not present)
Power Supply	24 VDC ±10%, 50/60 Hz
LED Indicators	Three LEDs (Power, Flame, Alarm)
Memory Type	Non-volatile memory
Shutter Drive Output	Yes
Compatibility	Compatible with Honeywell 7800 Series Amplifiers
Safety Features	Dynamic AMPLI-CHECK®, Dynamic self-check logic, Tamper resistant logic
Diagnostics	Optional Vacuum Fluorescent Display (VFD) for system diagnostics
Communication Interface	Yes
Flame Failure Response Time (FFRT)	0.8 or 3.0 seconds (depending on selected amplifier)
Mounting Type	Interchangeable plug-in flame amplifiers
Temperature Range	-40°C to 70°C (-40°F to 158°F)
Dimensions	6.0 x 5.0 x 3.0 inches
Weight	0.5 kg (1.1 lbs)

The RM7823A1016 Flame Switch features a built-in microcomputer technology, ensuring reliable long-term performance. Its non-volatile memory stores system data even during power loss, while the dynamic self-check logic continuously monitors the flame detection process, providing added safety. The unit also includes shutter drive output and compatibility with existing Honeywell flame detectors, offering flexibility in installation.

Applications of the RM7823A1016 Flame Switch

The Honeywell RM7823A1016 Flame Switch is ideal for use in flame detection and flame safeguard systems across various industries, including power generation, oil and gas, and manufacturing. It ensures safe ignition, shutdown, and monitoring of burners, providing early detection of flame failure and preventing system downtime. Its dynamic self-check logic guarantees reliable operation in demanding environments.

Why Choose the RM7823A1016 Flame Switch?

Choose the Honeywell RM7823A1016 Flame Switch for its advanced safety features and reliable flame detection capabilities. Its integration with Honeywell 7800 Series Amplifiers ensures seamless operation, while its non-volatile memory guarantees that critical data remains intact during power outages. The unit’s diagnostic capabilities and shutter drive output enhance system performance and enable easy troubleshooting, making it an excellent choice for critical applications.
