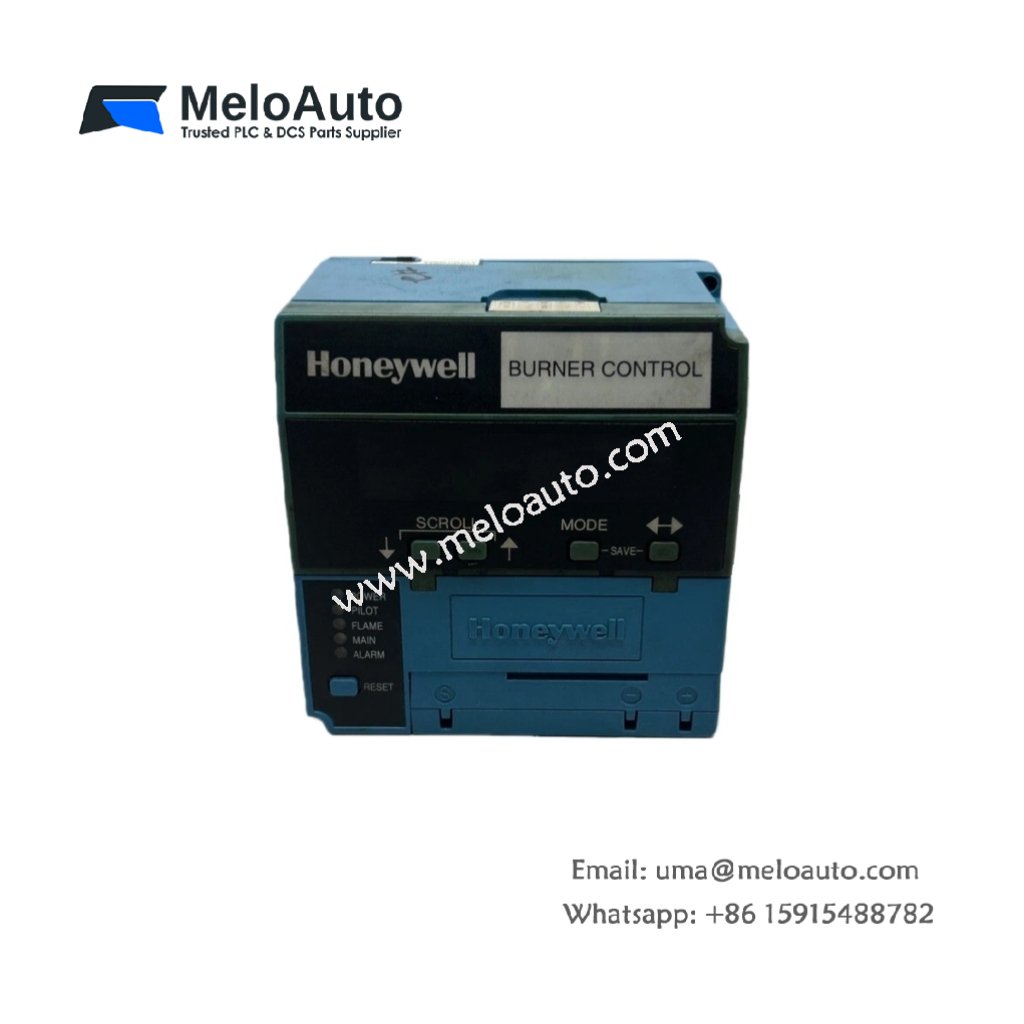

Honeywell RM7800L1046 Flame Safeguard Control Module

The Honeywell RM7800L1046 Flame Safeguard Control Module ensures efficient flame monitoring and control in combustion processes. This advanced control unit provides comprehensive diagnostics, flexible applications, and precise flame detection. Its reliable operation is essential for maintaining safe and optimal performance in industrial applications.

Key Features of the Honeywell RM7800L1046

Manufacturer: Honeywell
Product Type: Flame Safeguard Control Module
Part Number: RM7800L1046
Dimensions:
- 5 inches (127 mm) wide
- 5 inches (127 mm) high
- 5 1/4 inches (133 mm) deep with Q7800A Subbase
- 6 3/32 inches (155 mm) deep with Q7800B Subbase
Voltage: 120 Vac (+10%, -15%)
Frequency: 50 Hz / 60 Hz (±10%)
Approvals:
- UL Recognized Component (File No. MP268, Guide No. MCCZ)
- CSA Certified (File No. LR95329-3)
Flame Amplifiers: Interchangeable plug-in amplifiers for easy maintenance
Interface Capabilities: Provides communication flexibility for external electrical voltage checks
Indicators: Five LEDs to show sequence information for easy monitoring
Run/Test Switch: Includes a five-function switch for testing and operation
Memory: Nonvolatile memory retains history and lockout status after power loss
Keyboard Display Module: Includes an integrated keyboard display module for intuitive control

Overview

The Honeywell RM7800L1046 Flame Safeguard Control Module is designed to provide advanced flame detection and safeguard functionality in industrial combustion systems. Its built-in diagnostic capabilities and customizable settings make it an essential component for efficient flame monitoring. The module offers great flexibility with its interchangeable flame amplifiers and multiple communication interfaces.

Thanks to its five LEDs, operators can easily track the system’s sequence and operation status. The module includes a five-function Run/Test switch that allows users to quickly verify the system’s operation. The RM7800L1046 also features nonvolatile memory, ensuring that critical history files and lockout status are retained even after power loss.

This control module is fully compatible with Honeywell’s existing flame detectors, simplifying integration into existing systems. It is perfect for industrial applications that require reliable flame safeguard functionality, precise diagnostics, and flexible configuration options.

Technical Specifications

Feature	Specification
Manufacturer	Honeywell
Part Number	RM7800L1046
Product Type	Flame Safeguard Control Module
Dimensions (in.)	5 in. wide x 5 in. high x 5 1/4 in. deep (Q7800A)
Dimensions (mm)	127 mm wide x 127 mm high x 133 mm deep (Q7800A)
Voltage	120 Vac (+10%, -15%)
Frequency	50 Hz / 60 Hz (±10%)
LED Indicators	Five LEDs for sequence information
Approvals	UL, CSA Certified
Memory	Nonvolatile memory for history retention
Flame Amplifiers	Interchangeable plug-in amplifiers
Keyboard Display Module	Includes integrated display module
Communication Interface	External electrical voltage checks supported

Application and Installation

The Honeywell RM7800L1046 is ideal for controlling and safeguarding combustion processes in industrial applications. Installation is straightforward, and the module’s flexible configuration options ensure it meets a wide variety of system requirements. After installation, the unit provides real-time diagnostics and precise flame safeguard control, essential for optimizing system performance and minimizing downtime.

The RM7800L1046 ensures safe and reliable operation, even in the event of power loss, with its nonvolatile memory retaining all critical history files. Additionally, the modular design and plug-in amplifiers make maintenance and upgrades simple, allowing for long-term reliability.
