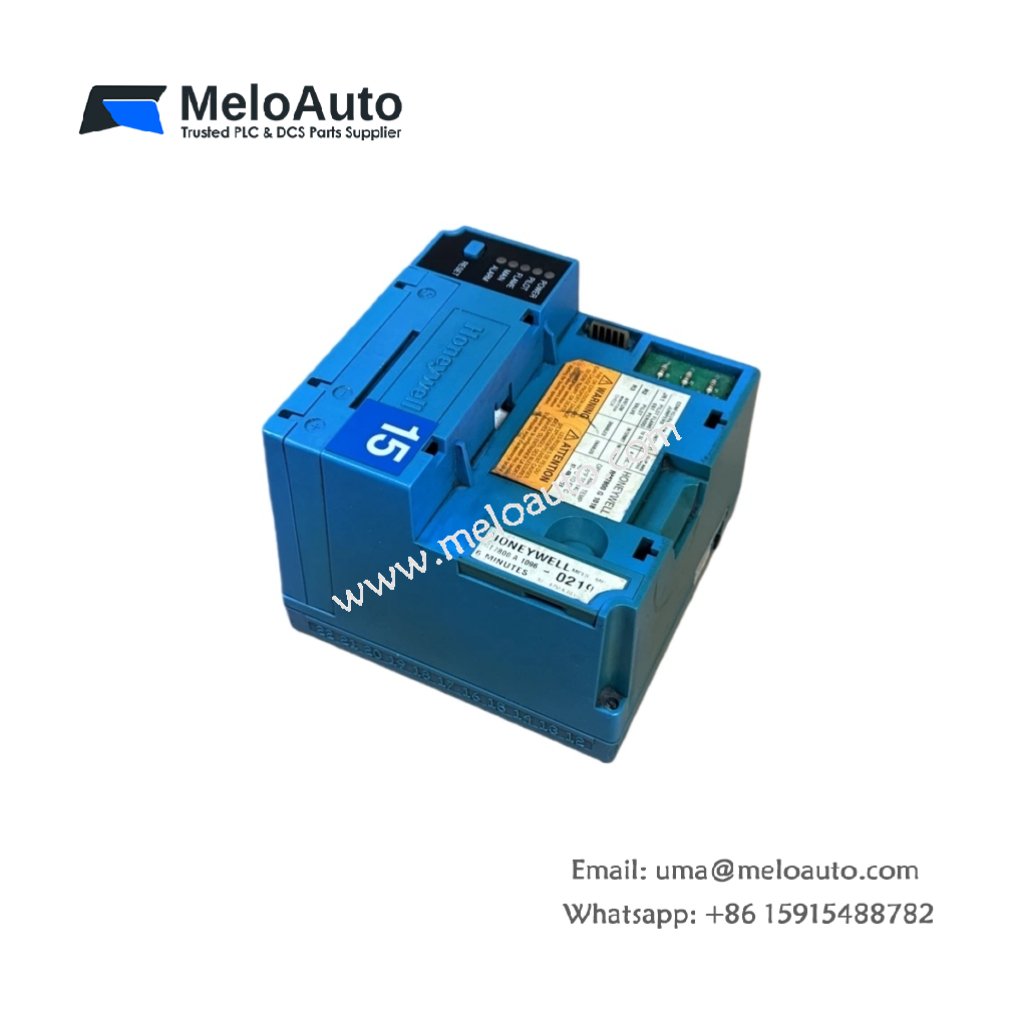

Honeywell RM7800G1018 Programmer Control Module

The Honeywell RM7800G1018 is a reliable and versatile programmer control module. Designed for industrial burner control systems, it enables seamless burner sequencing, flame supervision, and comprehensive diagnostics. The module is equipped with features that improve both operation and maintenance, ensuring long-term reliability and efficiency.

Key Features

Automatic Burner Sequencing: The RM7800G1018 automatically sequences burners for efficient and consistent performance.
Flame Supervision: It continuously monitors the flame, ensuring safety and operational stability.
System Diagnostics: The system runs diagnostics, helping operators identify issues quickly and accurately.
Sequence Information LEDs: With five dedicated LEDs, it provides clear sequence information to keep operators informed.
User-Friendly Interface: The RM7800G1018 comes with an intuitive five-function Run/Test switch for easy operation.
Flexible Communication Interfaces: It supports a range of communication interfaces, providing application flexibility.
External Voltage Check Access: The module provides access for external voltage checks, making maintenance easier.
Interchangeable Flame Amplifiers: Replace flame amplifiers quickly for less downtime during maintenance.
Non-Volatile Memory: The system retains vital data like history files and lockout status, even after power loss.
Local/Remote Annunciation: With optional local or remote annunciation, the system allows for remote fault monitoring.
Keyboard Display Module: The RM7800G1018 comes with an integrated Keyboard Display Module for straightforward control and monitoring.

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model	RM7800G1018
Product Type	Programmer Control Module
Application	Programming Control
Dimensions (inches)	5 in. wide x 5 in. high x 5 1/4 in. deep
Dimensions with Q7800A Subbase	5 in. x 5 in. x 6 3/32 in. deep
Dimensions with Q7800B Subbase	5 in. x 5 in. x 6 3/32 in. deep
Dimensions (mm)	127 mm x 127 mm x 133 mm with Q7800A Subbase
Weight	1.2 lbs (0.54 kg)
Power Supply	120 Vac
Frequency	50/60 Hz
Operating Temperature	-40°F to +140°F (-40°C to +60°C)
Humidity	85% RH (non-condensing)
Vibration Resistance	0.5 G
Approvals	UL Listed, cULus Listed
Flame Amplifiers	Interchangeable, easy to replace

Applications

The Honeywell RM7800G1018 is designed for industrial burner control systems. It’s perfect for applications requiring burner sequencing, flame supervision, and system diagnostics. The module is compatible with Honeywell’s flame detectors, making it an ideal upgrade for existing systems.

Additional Features

Advanced Diagnostics: The system’s diagnostic capabilities allow operators to troubleshoot effectively, minimizing downtime.
Reliable Data Retention: The non-volatile memory keeps critical data intact even after power interruptions.
Flexible Operation: You can monitor the system either locally or remotely, enhancing operational convenience.
