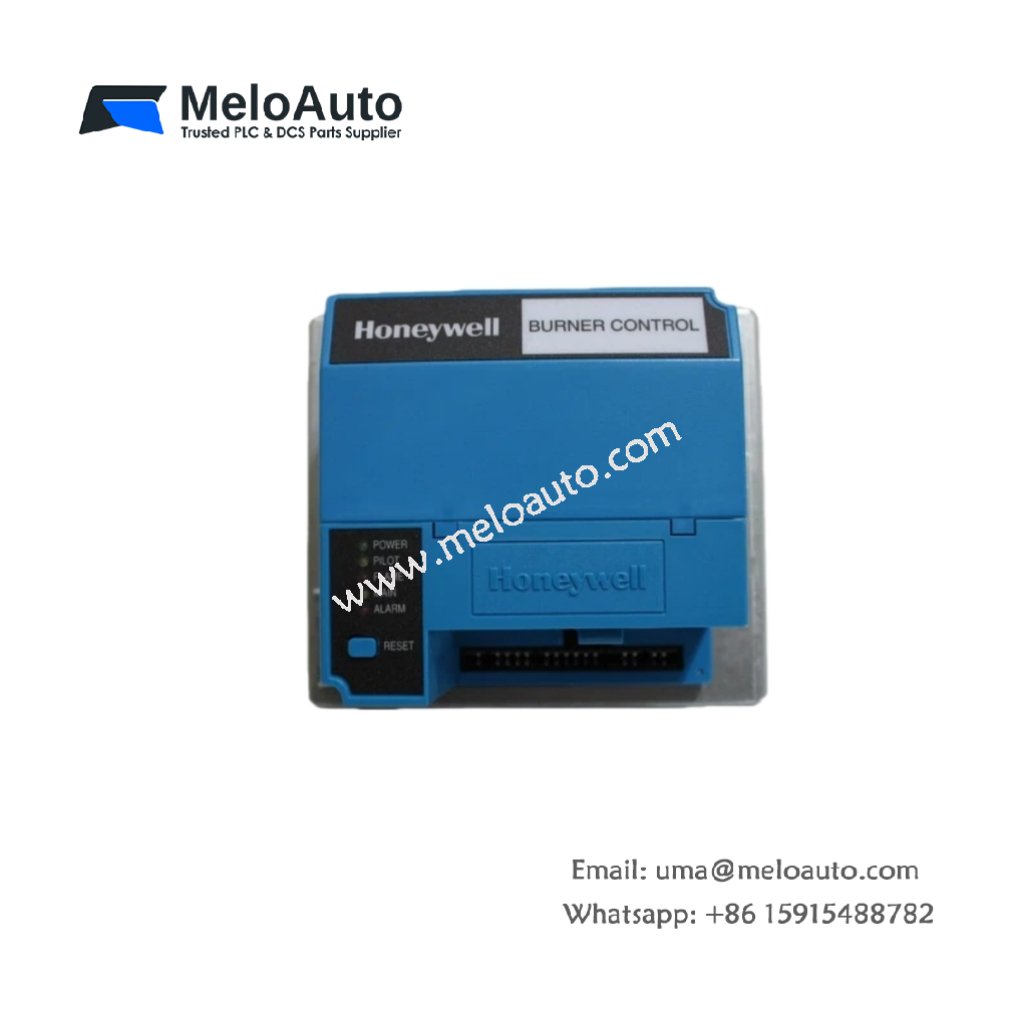

Honeywell R7140M1007 Programmer Burner Control

The Honeywell R7140M1007 is a high-performance Programmer Burner Control designed for precise management of industrial burner systems. This unit ensures safe and efficient operation by controlling burner sequences and offering key features like diagnostic LEDs, purge time control, and multiple output relays.

Key Features of the Honeywell R7140M1007

Manufacturer: Honeywell
Part Number: R7140M1007
Product Type: Programmer Burner Control
Input Voltage: 120 VAC
Frequency: 50/60 Hz
Post Purge Time: 15 seconds
Pre Purge Time: Set by ST7800A Purge Timer Card
Output Relays: Multiple outputs for burner management
Diagnostic LEDs: Yes, for real-time fault detection
Mounting Options: Panel or DIN rail installation

Product Overview

The Honeywell R7140M1007 enhances burner control efficiency by providing precise regulation over the burner’s operation. With 120 VAC input voltage and 50/60 Hz frequency, it offers compatibility with a wide range of industrial systems. Additionally, this unit includes a variety of features such as post-purge and pre-purge functions, which can be configured for optimal burner performance.

The diagnostic LEDs make it easier to monitor system performance, providing immediate feedback in case of faults. Moreover, the control unit supports both panel mounting and DIN rail installation, making it flexible for different installation scenarios. These key attributes ensure that the R7140M1007 performs consistently and safely across diverse burner systems.

Technical Specifications

Feature	Specification
Manufacturer	Honeywell
Part Number	R7140M1007
Product Type	Programmer Burner Control
Input Voltage	120 VAC
Frequency	50/60 Hz
Post Purge Time	15 seconds
Pre Purge Time	Set by ST7800A Purge Timer Card
Output Relays	Multiple relays for burner control
Diagnostic LEDs	Yes, for fault detection
Mounting	Panel or DIN rail installation

Installation and Usage

When installing the Honeywell R7140M1007, first ensure that the power is turned off. Next, mount the unit according to your preference, whether on a panel or a DIN rail. Once properly installed, the unit will begin managing the burner’s sequence of operations.

You can rely on the diagnostic LEDs for real-time system status. If a fault occurs, the LEDs will immediately indicate the problem, allowing you to take corrective action. Furthermore, the pre-purge and post-purge features help maintain efficiency and safety during burner operation.
