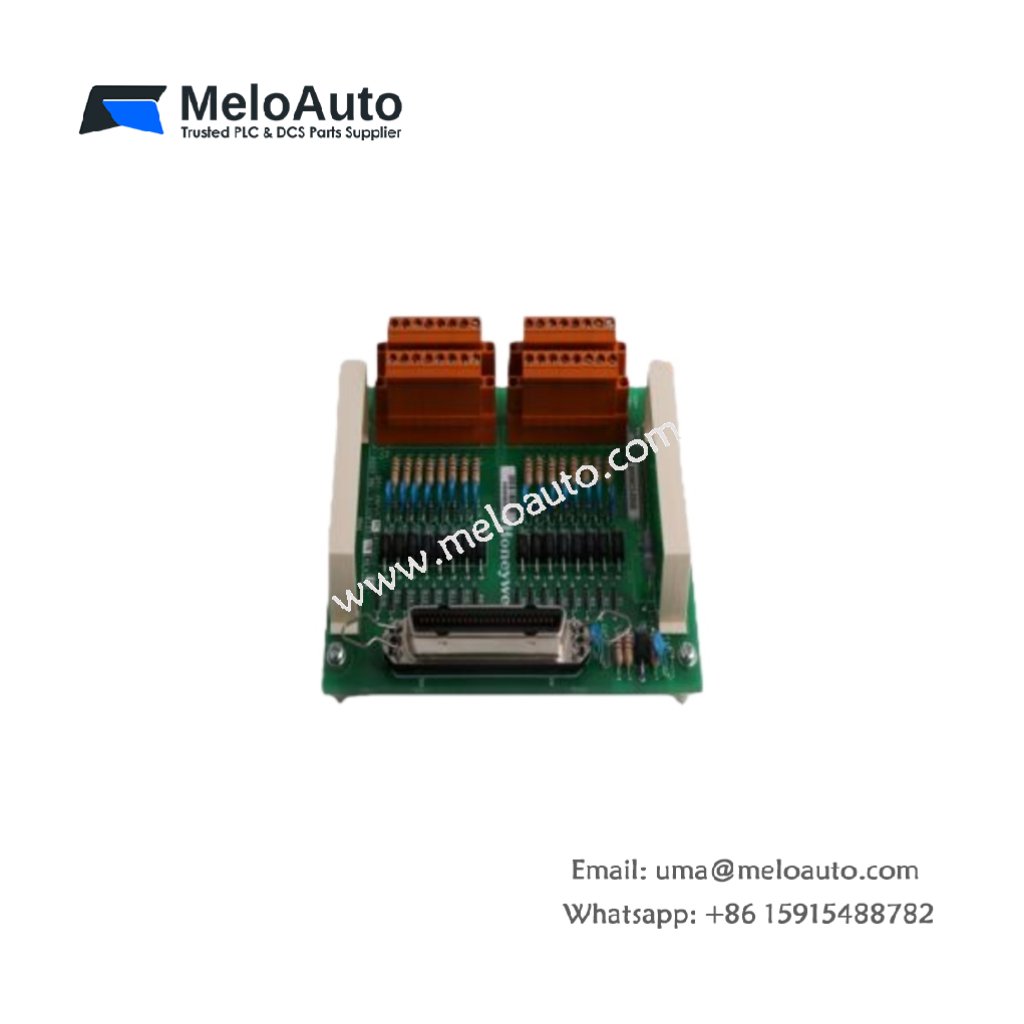

Honeywell MC-TSTX03 Smart Transmitter Interface

Overview

The Honeywell MC-TSTX03 is a versatile Smart Transmitter Interface (STI) designed to integrate smart transmitters into industrial automation systems. It plays a key role in Honeywell’s TotalPlant Solution (TPS), providing seamless communication between various field devices and control systems. This interface enables the efficient processing and transfer of analog and digital signals, ensuring reliable data transmission and control in critical industrial environments.

Key Features

Universal Compatibility: The MC-TSTX03 supports a wide range of input signals, including 4-20 mA, 0-10 V, and RTD, making it suitable for a variety of industrial applications.
Built-in HART Interface: Integrated HART communication protocol allows for enhanced device diagnostics and parameter adjustments.
Easy Installation: Designed for quick installation and straightforward configuration, reducing system downtime and setup complexity.
Rugged Design: Built to withstand harsh industrial conditions with a robust IP67 protection rating, ensuring reliable performance even in demanding environments.
High Data Transfer Rate: Supports a data transfer rate of up to 1 Mbps over RS-485 communication, ensuring fast and accurate signal processing.

Technical Specifications

Parameter	Specification
Model Number	MC-TSTX03
Manufacturer	Honeywell
Product Type	Smart Transmitter Interface (STI)
Input Type	Digital Input
Communication Protocol	RS-485, HART
Data Transfer Rate	Up to 1 Mbps
Input Voltage	12-24 VDC
Output Current	4-20 mA
Power Consumption	< 100 mA at 5 VDC
Operating Temperature Range	-40°C to 85°C (-40°F to 185°F)
Storage Temperature Range	-40°C to 125°C (-40°F to 257°F)
Protection Class	IP67
Weight	1.00 lbs (approx. 450 g)
Dimensions	50 x 25 x 15 mm

Applications

The Honeywell MC-TSTX03 is ideal for various industrial automation applications, including:

Process Control: Ensures smooth integration of smart transmitters into control systems for reliable process monitoring.
Building Automation: Facilitates seamless control of building systems, such as HVAC, lighting, and security systems.
HVAC Systems: Supports precise monitoring and control of HVAC systems, ensuring optimal temperature and air quality management in industrial settings.

Why Choose the Honeywell MC-TSTX03?

The Honeywell MC-TSTX03 Smart Transmitter Interface (STI) offers flexibility, ease of integration, and robust performance for industrial automation. With its wide compatibility, built-in HART interface, and IP67 protection, this interface is built to operate in demanding environments. It simplifies the connection of smart transmitters to Honeywell control systems, ensuring efficient and reliable communication.
