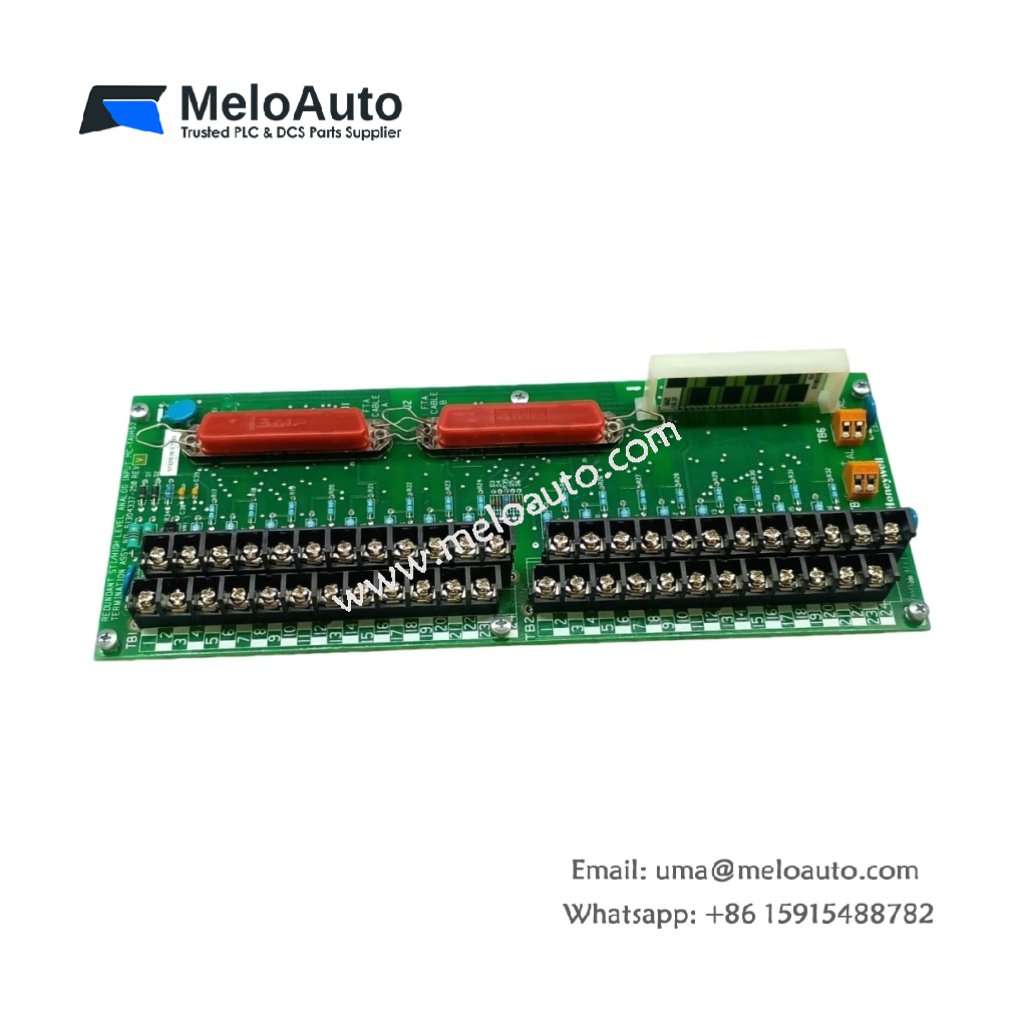

Honeywell MC-TAIH23 High-Level Analog Input Module

Overview

The Honeywell MC-TAIH23 is a high-performance analog input (AI) module designed for industrial automation and process control applications. This module provides 40 differential analog input channels, supporting voltage and current signals. It features compression terminal connections for easy integration with sensors and transmitters, making setup and maintenance hassle-free. With its enhanced power design, the MC-TAIH23 ensures reliable performance and accurate data capture, even in challenging industrial environments.

As part of the Honeywell Experion PKS C300 process control system, the MC-TAIH23 is built for high-accuracy and demanding industrial applications, offering a dependable solution for a variety of field devices.

Key Features

40 Differential Analog Input Channels: Supports both voltage and current signals, offering flexibility for different types of field devices.
Compression Terminals: Makes sensor and transmitter connections easy and efficient, simplifying installation and maintenance tasks.
Enhanced Power Design: Provides stable power for improved accuracy and reliable operation, ensuring optimal system performance.
CE Marking: Meets European Community (EC) standards, ensuring safety and compatibility in a wide range of industrial applications.
Hot Swappable: Designed for easy replacement without downtime, enhancing system reliability and uptime.
Redundant Communication Paths: Supports redundant communication paths for continuous data flow, ensuring high availability in mission-critical applications.
Wide Operating Temperature Range: Operates in environments with temperatures ranging from -40°C to 85°C, making it ideal for use in harsh industrial conditions.
Noise Reduction Design: The isolated design reduces noise and improves signal integrity, ensuring high-quality data transmission.

Applications

The MC-TAIH23 is widely used in industrial control systems, including:

Process Control: Enables precise monitoring and control of industrial processes.
Machine Control: Facilitates accurate machine operation in automation systems.
Testing and Measurement: Ensures reliable data acquisition for testing and measurement applications.
Data Acquisition: Captures and transmits critical data from field devices in real-time.

Technical Specifications

Parameter	Specification
Input Type	Voltage or current (4-wire or self-powered transmitters)
Input Channels	40 differential input channels
Common Mode Rejection Ratio (CMRR)	70 dB (0-60 Hz, 520Ω source imbalance)
Input Scan Rate	4 samples per second per channel (complete in 250 ms)
Dimensions	120mm (W) x 80mm (H) x 40mm (D)
Weight	0.45 kg
Operating Temperature	-40°C to 85°C
Power Supply	24 VDC
Number of I/O Points	8
I/O Type	Analog
Input Voltage Range	+10V, 0-20mA, 4-20mA
Input Impedance	100 kΩ
Accuracy	±0.1% of full scale
Isolation	2500V AC

Additional Information

Category: High-Level Analog Input Module
Model: MC-TAIH23
Brand: Honeywell
Application: Process control, machine control, data acquisition, and testing.

The Honeywell MC-TAIH23 provides exceptional accuracy, reliability, and ease of use. Whether used for process control or data acquisition, this module ensures seamless integration into any industrial automation setup.
