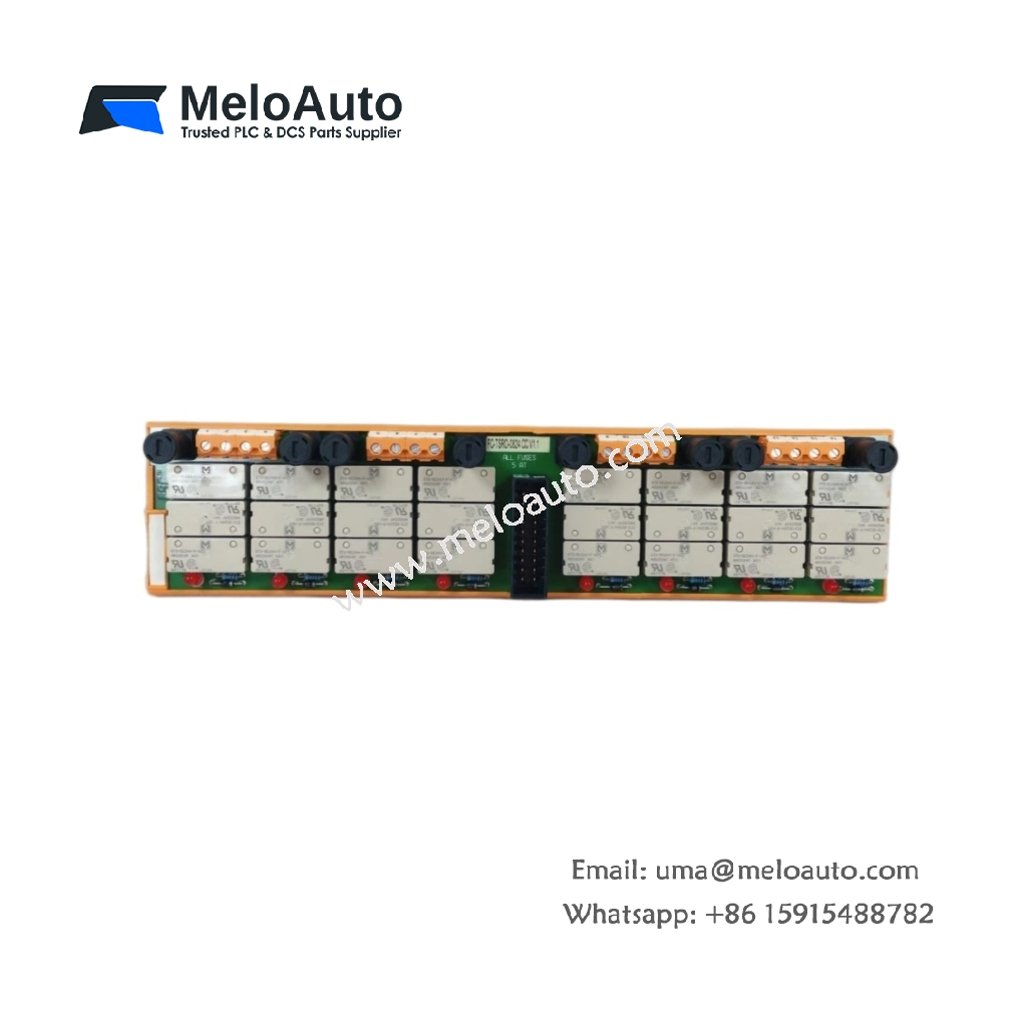

Honeywell FC-TSRO-0824 Digital Output Module

This digital output module provides eight isolated channels for controlling field actuators and indicators. The FC-TSRO-0824 delivers reliable switching performance for Honeywell control systems in industrial environments. Its compact design maximizes panel space while offering robust output drive capability. This unit simplifies integration with existing PLC and DCS architectures.

Output Characteristics and Electrical Ratings

The FC-TSRO-0824 operates on a nominal 24V DC supply with individual channel protection. Each output handles continuous currents up to 0.5 amps and supports inductive loads with built-in snubber circuits. The module uses solid-state MOSFET technology, which ensures fast switching and eliminates mechanical contact wear. Furthermore, the optical isolation between the backplane and field circuits provides excellent noise immunity.

Parameter	Specification
Model Number	FC-TSRO-0824
Product Type	Digital Output Module
Number of Channels	8 isolated outputs
Nominal Voltage	24V DC (18-32V operating range)
Output Current	0.5A continuous per channel
Switching Technology	Solid-state MOSFET
Isolation Voltage	1500V between field and logic
Protection	Short-circuit and thermal shutdown
Response Time	< 1ms typical
Power Dissipation	4.2W maximum
Status Indicators	Green LEDs per channel

Physical Dimensions and Mounting Details

The FC-TSRO-0824 measures 130mm wide, 100mm high, and 70mm deep. This output module weighs approximately 0.6 kilograms and mounts directly onto standard DIN rails. The front panel provides a removable 18-pin terminal block for all field wiring connections. Each channel terminal clearly labels its output and common connections. Additionally, the rugged housing protects internal circuitry from dust and moisture ingress.

Energy Storage and Power Consumption

This digital output module draws a maximum of 4.2 watts from the backplane under full load. The FC-TSRO-0824 does not contain any batteries or supercapacitors for energy retention. Instead, the module relies entirely on the system power supply for its operation. The efficient thermal design allows natural convection cooling without requiring forced airflow. Consequently, this module delivers long-term reliability with minimal maintenance interventions.

System Integration and Diagnostic Features

The FC-TSRO-0824 integrates seamlessly with Honeywell S300 and Experion control platforms. You can configure this module using standard engineering tools for rapid deployment. The built-in diagnostic functions include open-wire detection and over-temperature monitoring. Therefore, this digital output module provides a dependable solution for discrete control applications.
