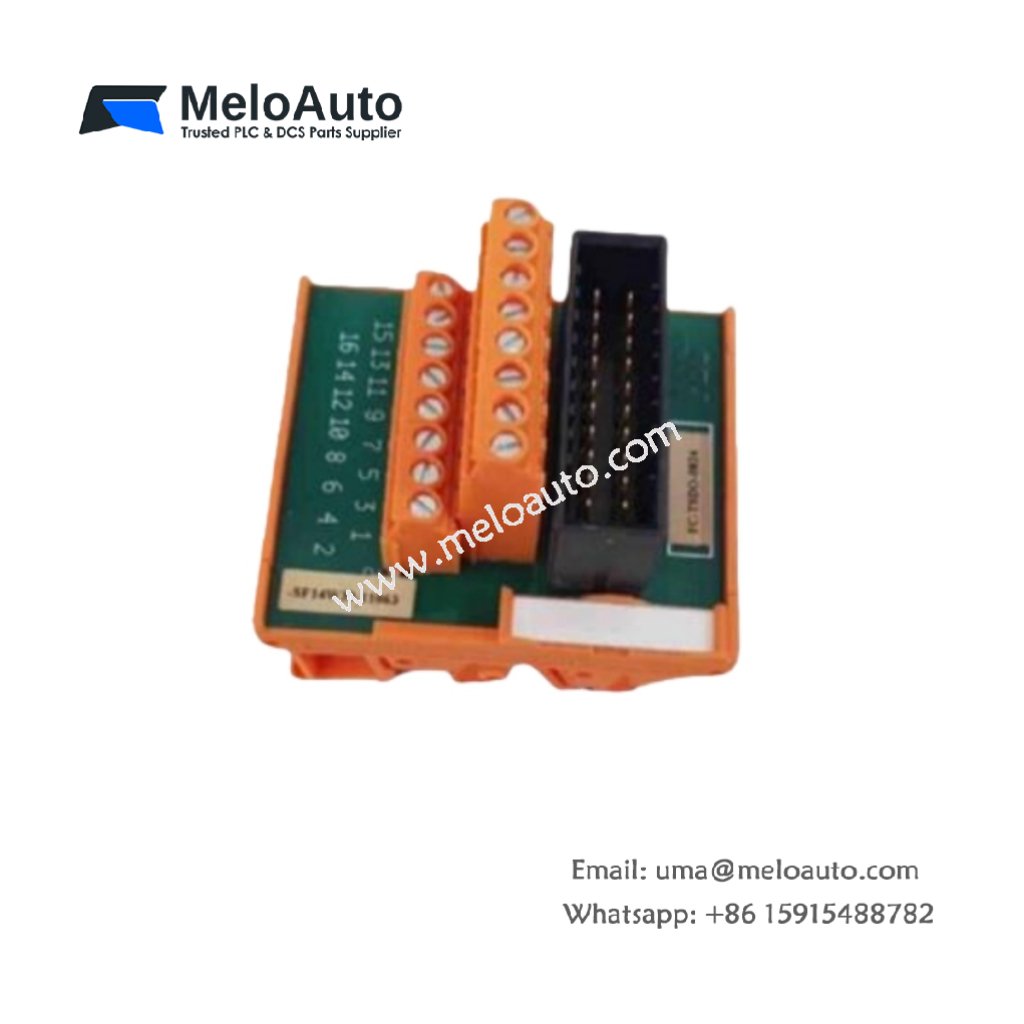

Honeywell FC-SDO-0824 Digital Output Module

The Honeywell FC-SDO-0824 is a high-performance digital output module designed to control and monitor industrial loads. It features eight 24 VDC, 550 mA output channels, making it ideal for driving resistive loads like lamps and inductive devices such as solenoids. With built-in protection and diagnostic features, this module ensures safe, efficient operation in industrial environments.

Key Features:

Eight 24 VDC Solid-State Outputs: The module provides eight outputs, each capable of driving loads up to 13 W, ideal for various automation applications.
Short-Circuit Protection: Each output channel is equipped with short-circuit protection to prevent system damage.
Inductive Load Protection: Suppression diodes ensure safe operation when driving inductive loads such as solenoids or relays.
Diagnostic Tests: The module conducts multiple diagnostic tests, including de-energizing capability and suppression diode functionality, ensuring optimal performance.
Secondary De-Energizing: Each group of four outputs has a secondary de-energizing mechanism (SMOD), improving shutdown selectivity in case of failure.
Compliant with Industry Standards: Certified with CE, TUV, UL, CSA, and FM approvals, the module meets rigorous industry safety standards.

Product Specifications:

Specification	Details
Manufacturer	Honeywell
Product Type	Digital Output Module
Part Number	FC-SDO-0824
Number of Output Channels	8
Output Type	24 VDC solid-state source, short-circuit proof
Maximum Current	550 mA (limited to 350 mA at 70°C)
Maximum Lamp Load	120 mA (2.9 W)
Maximum Load Capacitance	1 μF
Voltage Drop	< 2.0 VDC at 500 mA
Off Current	< 0.1 mA
Watchdog Input Current	8 mA
Space Requirements	4 TE, 3 HE (= 4 HP, 3U)
Power Requirements	5 VDC: 25 mA, 24 VDC (internal): 25 mA, 24 VDC (external): 70 mA (without output load)
Approvals	CE, TUV, UL, CSA, FM

Cooling and Mounting:

Mounting: Designed for easy panel installation, the FC-SDO-0824 uses a 4 TE and 3 HE size for compatibility with standard rack systems.
Cooling: The module features an efficient heat dissipation system, ensuring stable operation even in high-temperature environments.

Applications:

Process Control: Used in industrial process control systems requiring reliable and precise digital output channels.
Industrial Automation: Ideal for controlling devices like lamps, solenoids, and valves in automation processes.
Safety Systems: Suited for applications that demand high reliability and safety, such as emergency shutdown systems.

Why Choose the Honeywell FC-SDO-0824?

The Honeywell FC-SDO-0824 ensures superior safety with features like suppression diodes, short-circuit protection, and diagnostic tests. Additionally, its secondary de-energizing capability guarantees system reliability and reduces downtime during operation. Whether used for process control or industrial automation, this module delivers dependable performance in demanding environments.
