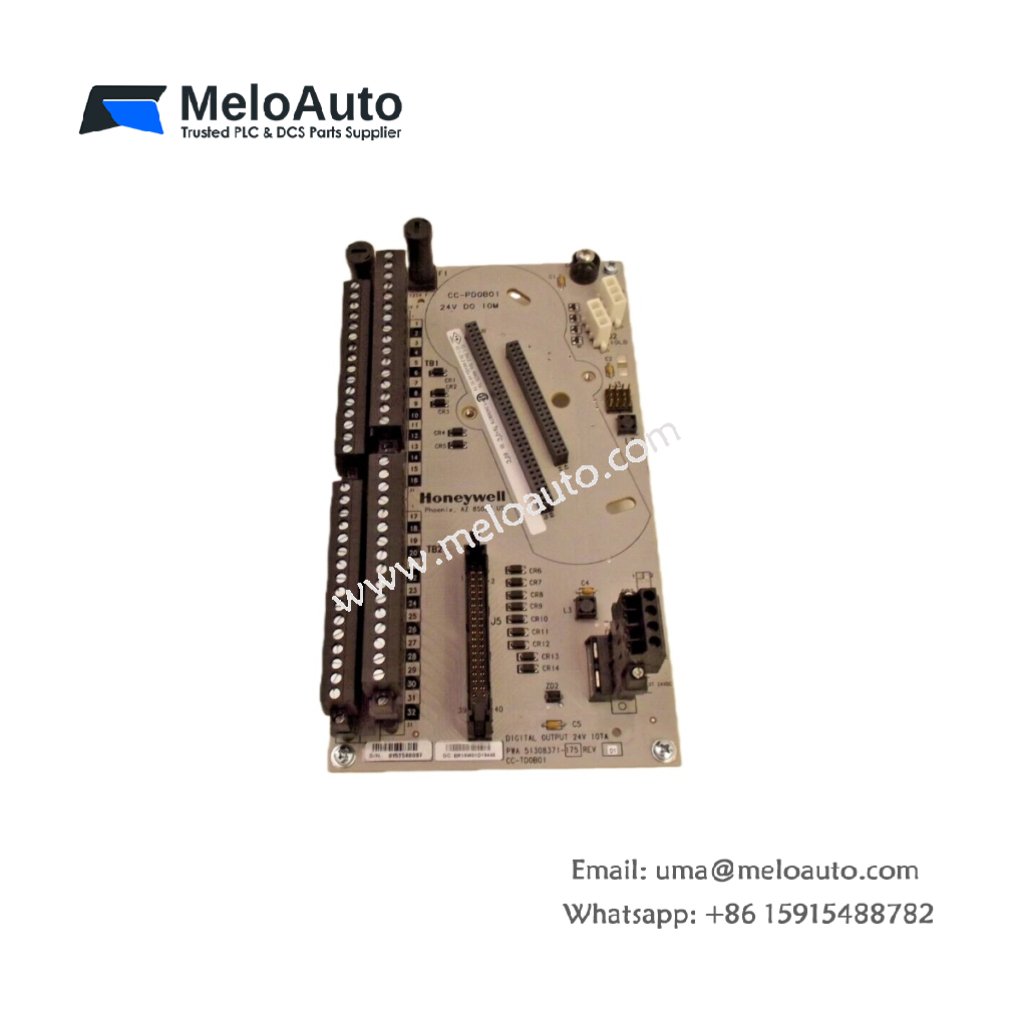

Honeywell CC-TDOB01 51308371-175 Output Bridge Module

Overview

The Honeywell CC-TDOB01 51308371-175 is a Digital Output Bridge Module designed for use in TotalPlant Solution (TPS) Distributed Control Systems (DCS). It enables the interfacing of digital output signals to the TPS DCS, providing control over industrial devices such as motors, solenoids, and contactors. With its robust design, this module ensures precise and reliable control for various industrial applications.

Key Features

16 Digital Output Channels: Provides reliable control for up to 16 devices simultaneously.
Output Voltage: Operates with a nominal 24V DC output voltage, ensuring compatibility with various industrial equipment.
Output Current: Each channel supports up to 2A output current, suitable for powering high-demand devices.
Isolation: 1500V isolation between channels ensures enhanced safety and reduces the risk of electrical faults.
Fast Response Time: Provides a response time of just 1ms, ensuring quick and accurate signal transmission.
Wide Operating Temperature Range: Capable of operating between -40°C and 70°C, making it suitable for harsh industrial environments.
High Humidity Tolerance: Designed to withstand 5% to 95% RH humidity, non-condensing, making it ideal for diverse environmental conditions.
Hot-Swappable: Allows for maintenance and replacement without interrupting system operations.

Technical Specifications

Specification	Details
Manufacturer	Honeywell
Model Number	CC-TDOB01 51308371-175
Product Type	Digital Output Bridge Module
Number of Channels	16 Digital output channels
Output Voltage	24V DC nominal
Output Current	2A maximum per channel
Isolation	1500V isolation between channels
Response Time	1ms
Operating Temperature Range	-40°C to 70°C
Humidity Range	5% to 95% RH, non-condensing
Dimensions	110 x 63 x 30 mm
Weight	200 grams

Applications

The Honeywell CC-TDOB01 51308371-175 is suitable for a wide range of industrial applications, including:

Industrial Automation: Provides reliable control for machinery, equipment, and systems.
Process Control: Ensures precise control in industries like chemical processing and oil refining.
Power Generation: Controls power distribution equipment and ensures system stability.
Oil and Gas: Optimizes device control in challenging and hazardous environments.
Food and Beverage Processing: Supports automated control systems for manufacturing and production lines.
Pharmaceutical Manufacturing: Maintains accuracy and consistency in pharmaceutical production processes.

Why Choose the Honeywell CC-TDOB01 51308371-175?

The Honeywell CC-TDOB01 51308371-175 offers exceptional control for critical industrial processes. With its 16 output channels, 2A current per channel, and 1500V isolation, this module ensures high reliability and safety in diverse industrial environments. The fast response time and wide operating temperature range make it adaptable to various applications, while the hot-swappable design minimizes downtime during maintenance.
