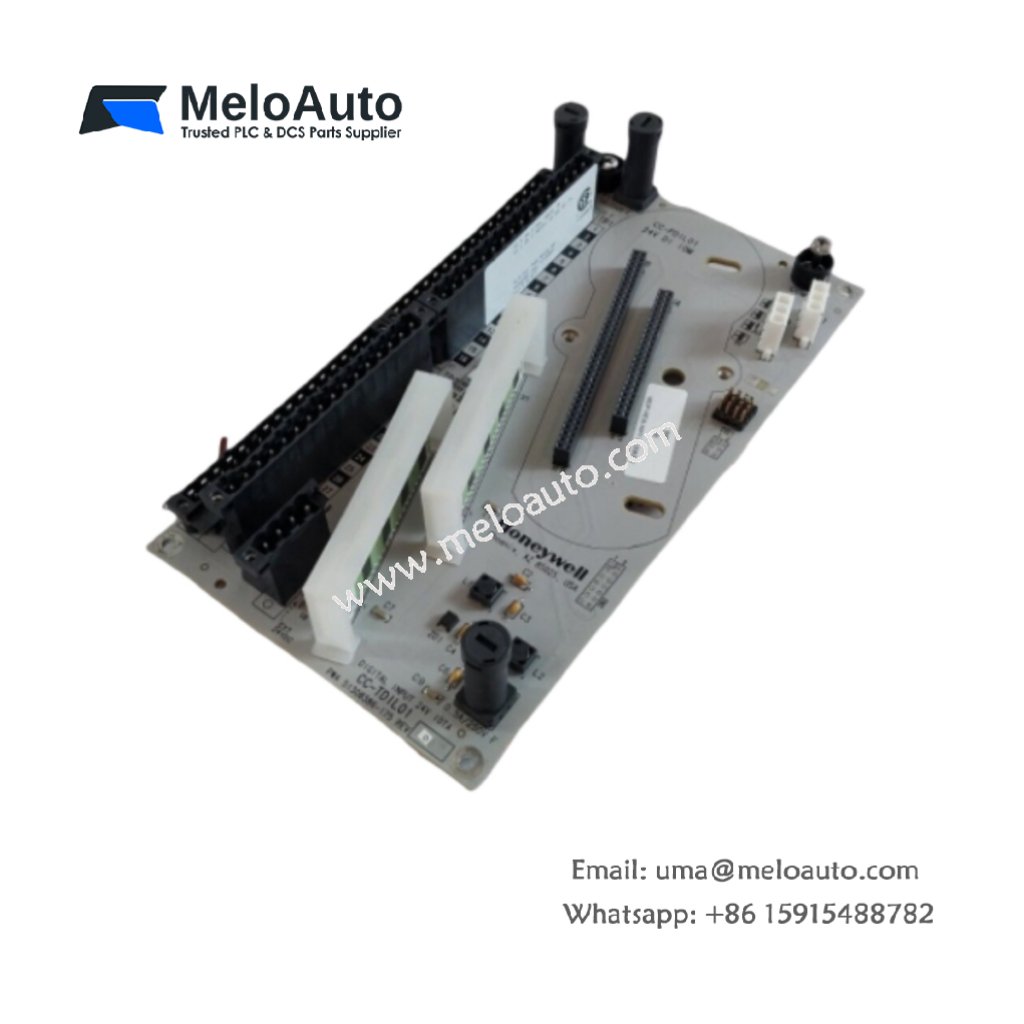

Honeywell CC-TDIL01 Digital Input Module

Overview

The Honeywell CC-TDIL01 (part number 51308386-175) is a durable digital input module designed specifically for use in Honeywell’s Series C control systems. This module captures 24VDC discrete signals from field devices with exceptional reliability and isolation, making it ideal for demanding industrial environments. Its rugged design ensures long-lasting performance, even in harsh conditions, while providing seamless integration with Honeywell Series C and IOTA platforms.

Key Features

Input Type: Digital, 24VDC signals, suitable for standard industrial applications.
Channel Count: Typically supports 16 or 32 input channels, depending on configuration.
Wide Input Voltage Range: Accepts an input range of 18-30 VDC, providing compatibility with various field devices.
High Isolation: Offers both channel-to-channel and channel-to-system isolation, ensuring system integrity and preventing signal interference.
Compact Design: Space-efficient, making it ideal for installation in dense control panel environments.
Temperature Tolerance: Reliable operation across an extreme temperature range, from -40°C to +85°C.
Shock and Vibration Resistance: Built to withstand rugged field conditions, ensuring high durability.
System Compatibility: Integrates seamlessly with Honeywell Series C control systems and IOTA racks.

Specifications

Specification	Details
Model Number	CC-TDIL01
Part Number	51308386-175
Input Type	Digital, 24VDC
Input Voltage Range	18-30 VDC
Channel Count	16 or 32 (depends on configuration)
Isolation	Channel-to-channel and channel-to-system
Dimensions	Approx. 4.7 x 2.7 x 1.2 inches
Weight	0.2 lbs
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Humidity Range	5% to 95% RH, non-condensing
Mounting Compatibility	Compatible with Honeywell IOTA racks
Current Consumption	0.190 Amps @ 24VDC
Heat Dissipation	4.22 Watts
Warranty	12 months
Condition	Brand new

Additional Features

Diagnostic Capabilities: Supports system diagnostics for enhanced monitoring and maintenance.
Efficient Power Usage: Consumes only 0.190 Amps at 24VDC, ensuring efficient energy consumption for extended use.
Thermal Management: The module generates 4.22 Watts of heat dissipation, requiring appropriate thermal management during operation.

Applications

The Honeywell CC-TDIL01 is designed for use in various industrial automation and control applications, including:

Industrial Automation: Captures and processes discrete digital signals from field devices, making it ideal for controlling machinery and processes.
Process Control: Ensures accurate input processing for process control systems, improving system efficiency and reliability.
Building Automation: Suitable for systems managing heating, ventilation, and air conditioning (HVAC) systems.
Safety and Security Systems: Helps integrate safety monitoring devices within control systems, ensuring system integrity.
