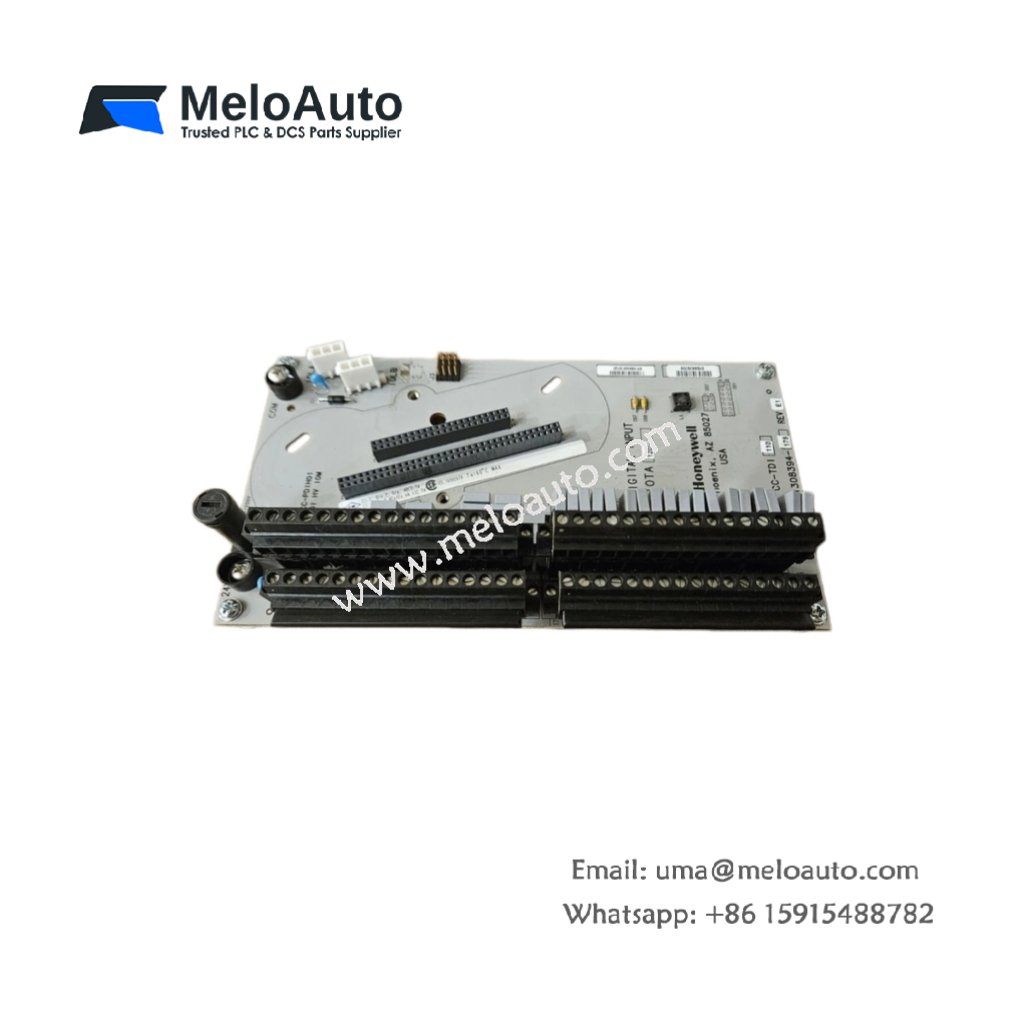

Honeywell CC-TDI110 Digital Input Module

Technical Overview

The Honeywell CC-TDI110 is a digital input IOTA (Input/Output Termination Assembly) module designed for the Experion PKS distributed control system and C300 controller platform . This module acquires discrete AC signals from field devices such as limit switches, proximity sensors, and relay contacts, converting them into digital data for the controller .

The Honeywell CC-TDI110 features 16 optically isolated input channels, each with a dedicated LED indicator for real-time status monitoring . It supports 120 VAC nominal input with a voltage range of 90–132 VAC RMS . The module provides robust isolation of 1500 VAC RMS, effectively protecting the control system from electrical noise and voltage transients .

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model Number	CC-TDI110
Part Number	51308394-175
Product Type	Digital Input IOTA Module
System Compatibility	Experion PKS, C300 Controller, TPS, TDC 3000
Input Channels	16
Nominal Voltage	120 VAC
Input Voltage Range	90–132 VAC RMS
Frequency Range	47–63 Hz
Sense Current (ON)	1.0 mA minimum
Sense Current (OFF)	0.32 mA maximum
Pick-Up Voltage (ON)	90 VAC RMS minimum
Drop-Out Voltage (OFF)	25 VAC RMS maximum
Input Delay (Max)	25 ms
Isolation	1500 VAC RMS
Response Time	<10 ms
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Dimensions	241.3 x 63.5 x 19 mm
Weight	0.23 kg
Mounting	IOTA baseplate, DIN rail compatible
Certifications	CE, UL, RoHS
Country of Origin	USA

Key Features

High Channel Density – The Honeywell CC-TDI110 provides 16 digital input channels in a single slot, maximizing cabinet space efficiency and reducing system costs .

Optical Isolation – The module delivers 1500 VAC RMS isolation between input channels and the system, effectively protecting the control electronics from electrical noise and ground loops .

Visual Status Indication – Each channel features a dedicated LED indicator that displays the ON-OFF status of each input point, simplifying troubleshooting and reducing diagnostic time .

Hot-Swap Capability – Users can replace the module during operation without powering down the system, minimizing process interruption in critical applications .

Redundancy Support – The Honeywell CC-TDI110 supports redundant configurations for enhanced system availability in critical control applications .

Industrial-Grade Reliability – The module operates reliably from -20°C to +70°C and features strong electromagnetic immunity for harsh industrial environments .

Applications

The Honeywell CC-TDI110 excels in oil and gas refineries, chemical processing plants, power generation facilities, and pharmaceutical manufacturing environments . It provides reliable digital input acquisition for motor status monitoring, valve position feedback, limit switch detection, and alarm monitoring within Experion PKS-based distributed control systems.
