Honeywell CC-PUIO01/C Universal IO Module

Versatile Analog and Digital Processing for Experion PKS

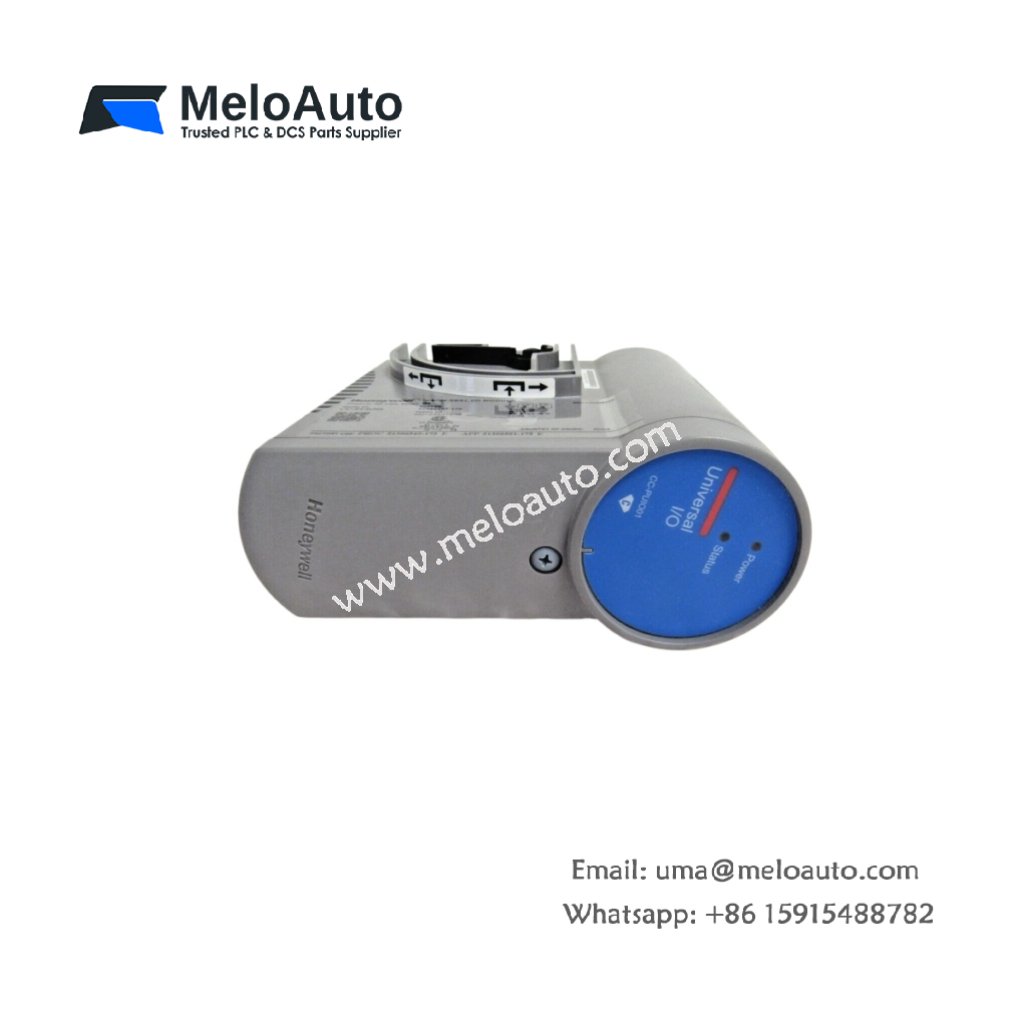

The Honeywell CC-PUIO01/C functions as a universal process I/O module within the Experion PKS distributed control system. This module handles both analog and digital signals, offering exceptional flexibility for process applications. Its robust housing measures 130 mm in height, 45 mm in width, and 120 mm in depth, fitting standard Series C termination assemblies. The total weight reaches approximately 0.45 kg, providing durability for continuous process environments.

This module provides 16 universal channels, configurable for analog input, analog output, or digital I/O functions. The following table details the complete technical specifications for this versatile process I/O solution:

Parameter	Specification
Product Brand	Honeywell
Product Model	CC-PUIO01/C
Product Category	Universal Process IO Module
Platform Compatibility	Experion PKS (Series C)
Number of Channels	16 (universal)
Analog Input Types	4-20 mA, 0-10 V, RTD, thermocouple
Analog Output Types	4-20 mA, 0-10 V
Digital Input	24 V DC (sink/source)
Digital Output	24 V DC, 0.5 A
Resolution	16-bit (analog)
Dimensions (H x W x D)	130 mm x 45 mm x 120 mm
Weight	0.45 kg
Supply Voltage	24 V DC
Power Consumption	6.0 W typical
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Isolation Voltage	1500 V AC (channel-to-backplane)

Channel Configuration and Signal Versatility

The 16 universal channels support analog inputs, analog outputs, and digital I/O in any combination. Analog inputs accept 4-20 mA, 0-10 V, RTD, and thermocouple signals for comprehensive process measurement. Analog outputs generate 4-20 mA or 0-10 V signals for final control elements. This flexibility allows engineers to match the module to specific application requirements.

Resolution and Measurement Accuracy

Each analog channel delivers 16-bit resolution for precise measurement and control. This resolution ensures accurate representation of process variables. The module maintains consistent accuracy across the full operating temperature range. Users benefit from reliable performance in demanding process applications.

System Integration and Communication

The CC-PUIO01/C interfaces with the Experion PKS controller through the Series C backplane. This module supports online configuration for effortless channel reassignment. The system provides comprehensive diagnostics for each channel. Process engineers can therefore adapt the module to evolving plant requirements.
