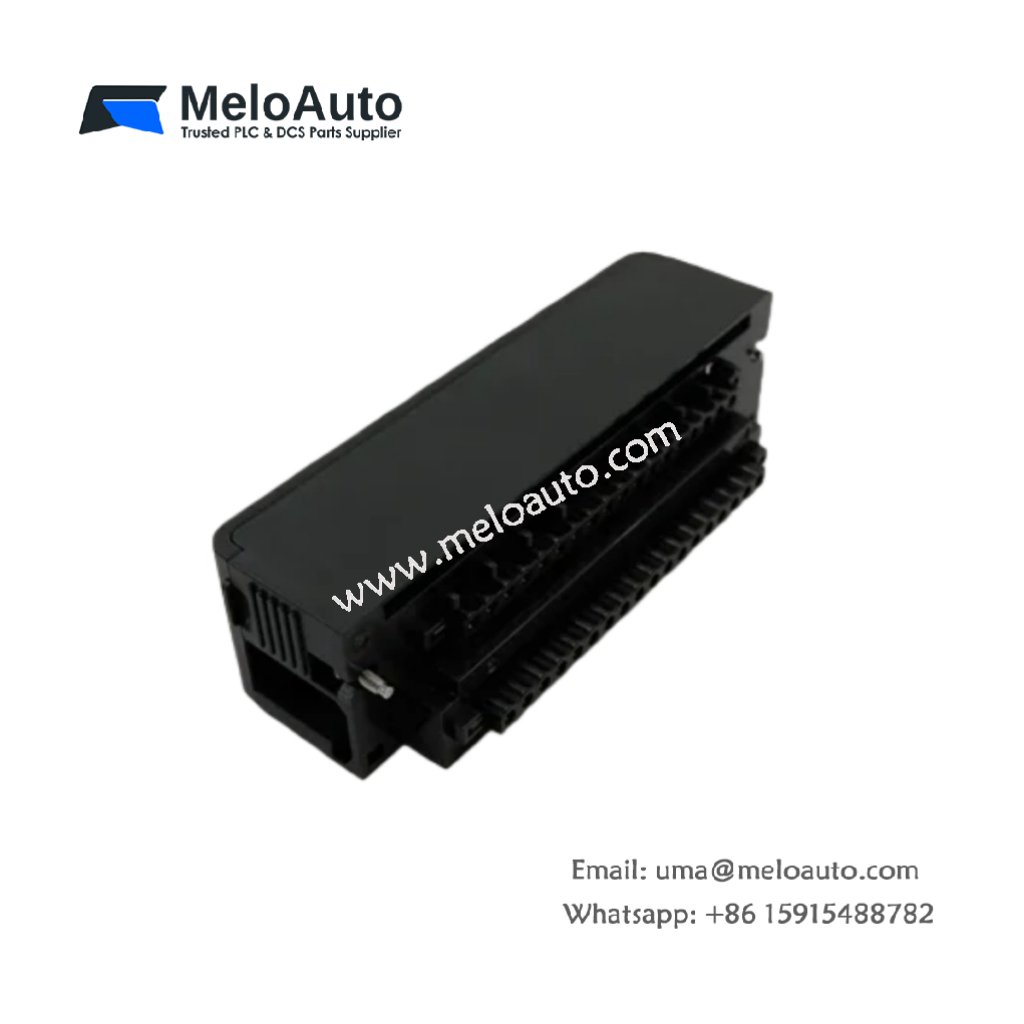

Honeywell 900TCK-0200 36-Channel Voltage Terminal Block

The Honeywell 900TCK-0200 is a high-performance 36-channel terminal block designed specifically for ControlEdge HC900 VO modules. It offers a compact and high-density wiring solution, ensuring secure and reliable connectivity for industrial applications. This terminal block is ideal for systems that require efficient, space-saving, and reliable connections in demanding environments.

Key Features of the Honeywell 900TCK-0200

High Channel Capacity: With 36 channels, the Honeywell 900TCK-0200 provides ample space for wiring and ensures easy management of connections in complex systems.
Flexible Mounting Options: The terminal block supports both DIN rail and panel mounting, offering versatile installation options depending on your system requirements.
Wide Voltage Rating: It supports a wide voltage range from 24V DC to 300V AC, making it suitable for various industrial control applications.
Robust Current Handling: This terminal block can handle 10A to 15A of current, providing safe and reliable power distribution for industrial circuits.
Wire Compatibility: It accommodates AWG 14-26 solid wires and AWG 12 stranded wires, making it compatible with a wide variety of wire sizes.
Durable and Reliable: Built for harsh industrial environments, it operates within a temperature range of -40°C to +85°C, ensuring dependable performance in extreme conditions.
Certifications: The Honeywell 900TCK-0200 is certified for safety and compliance with CE, UL508, CSA, and TUV standards.

Technical Specifications

Parameter	Specification
Model	Honeywell 900TCK-0200
Type	Voltage Terminal Block
Channel Capacity	36 channels
Mounting Type	DIN rail or panel-mounted
Voltage Rating	24V DC / up to 300V AC
Current Rating	10A – 15A
Wire Size Supported	AWG 14-26 solid / AWG 12 stranded
Dimensions	Approx. 9.7 x 8.7 x 6.7 cm
Weight	~0.85 lbs (0.39 kg)
Operating Temperature	-40°C to +85°C
Certifications	CE, UL508, CSA, TUV
Insulation Resistance	100 MΩ at 500V DC
Dielectric Strength	2.5 kV AC for 1 minute

Applications

The Honeywell 900TCK-0200 terminal block is ideal for various industrial control systems, including:

Control Systems: Perfect for managing control signals and power distribution in automation systems.
Machine Automation: Essential for connecting electrical components in machinery control systems.
Process Control: Provides secure and efficient wiring in process control applications, ensuring reliable connections in complex environments.
Energy Management: Supports energy-efficient operations in industrial plants and energy management systems.

Conclusion

The Honeywell 900TCK-0200 is a durable, reliable, and versatile terminal block that offers 36 channels for secure and efficient wiring. With its wide voltage range, robust current handling, and flexible mounting options, it is the perfect choice for industrial control systems in demanding environments.
