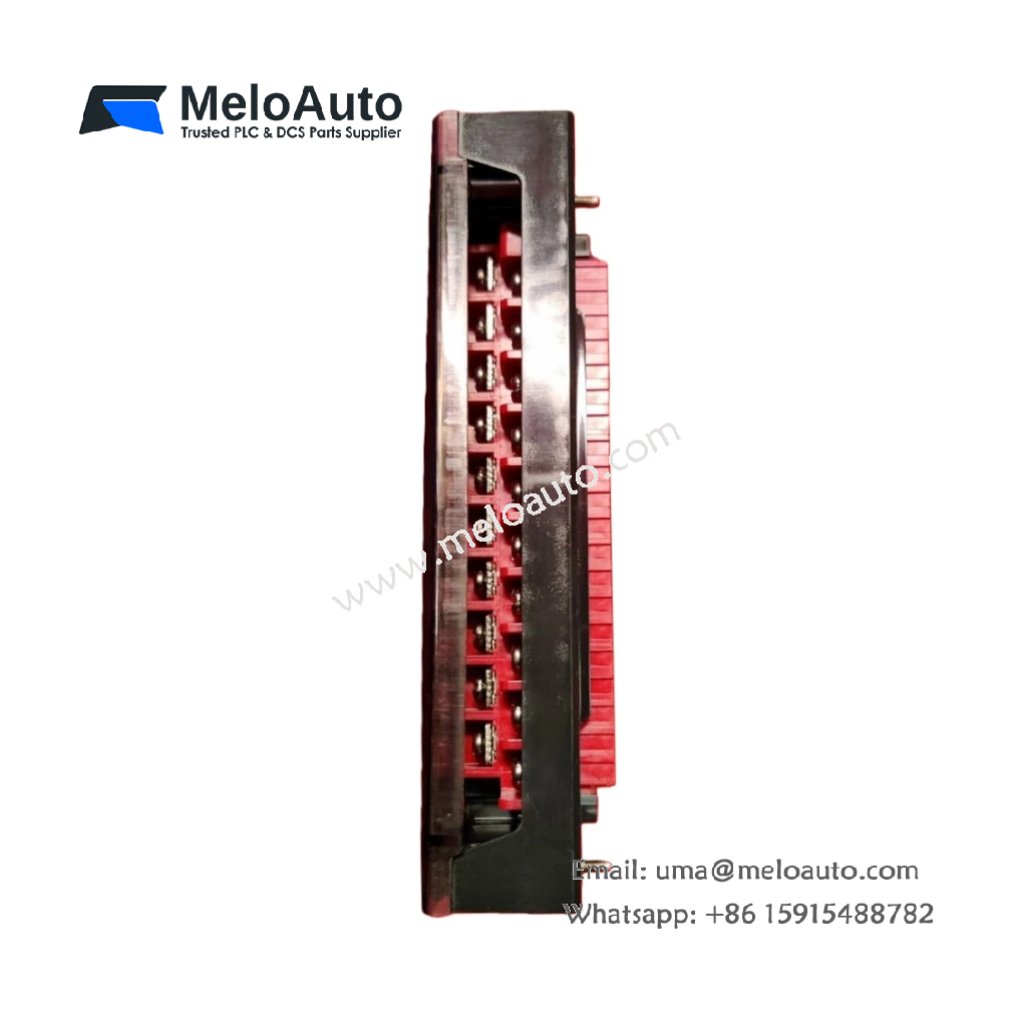

Honeywell 900TBR-0001 ControlEdge HC900 Controller

Overview

The Honeywell 900TBR-0001 ControlEdge HC900 Controller is a sophisticated, modular loop and logic controller engineered for complex process control and data acquisition tasks. Its flexible architecture allows for seamless customization, ensuring superior performance across a wide range of industrial applications.

Technical Specifications

The ControlEdge HC900 is designed to support a variety of I/O modules, enabling the creation of a tailored control solution. Below are the detailed specifications for the available modules:

I/O Modules for Custom Control

Module Type	Description
16-Channel Universal I/O Module	Galvanically isolated from the chassis.
8-Point Universal Analog Input Modules	Supports thermocouples, RTDs, and voltages. Includes high-point galvanic isolation, reducing the need for external isolation hardware.
16-Point High-Level Analog Input Module	Configurable for V or mA. Features galvanic isolation from the chassis and between points. Includes 250-ohm shunt resistors.
4-Point Galvanically Isolated Analog Output Module	Supports 0 to 20mA per point.
8-Point Analog Output Module	Organized into two groups of 4, with galvanic isolation. Supports 0 to 20mA per point.
16-Point Analog Output Module	Divided into four groups of 4. Galvanically isolated, supporting 0 to 20mA per point.
16-Point Digital Input Modules	Supports contact closure, DC voltage, and AC voltage inputs, with galvanic isolation.
32-Point Digital Input Module	DC voltage inputs, galvanically isolated in two groups of 16.
8-Point DC or 16-Point AC Digital Output Modules	Sinking type, with galvanic isolation.
32-Point Digital Output Module	DC voltage (sourcing type), with galvanic isolation.
8-Point Relay Output Module	Features four form C and four form A relays, with isolation.
4-Channel Pulse/Frequency/Quadrature I/O Module	Galvanically isolated from the chassis.

Easy I/O Maintenance

The ControlEdge HC900 ensures easy I/O module maintenance by supporting module insertion and removal under power. The controller automatically detects and configures newly inserted modules, minimizing system downtime.

Additional Modules Available

Module	Description
Scanner 1 Module (Single Port)	For enhanced control functionality.
Scanner 2 Module (Dual Port)	Dual port version for higher data throughput.
Universal AC Power Supply (60W)	Provides reliable power for the system.
24VDC Power Supply (60W)	Ensures stable power supply in industrial environments.
Redundant Switch Module	Offers redundant switching for improved system reliability.
Power Status Module	Monitors and reports the power status of the system.
