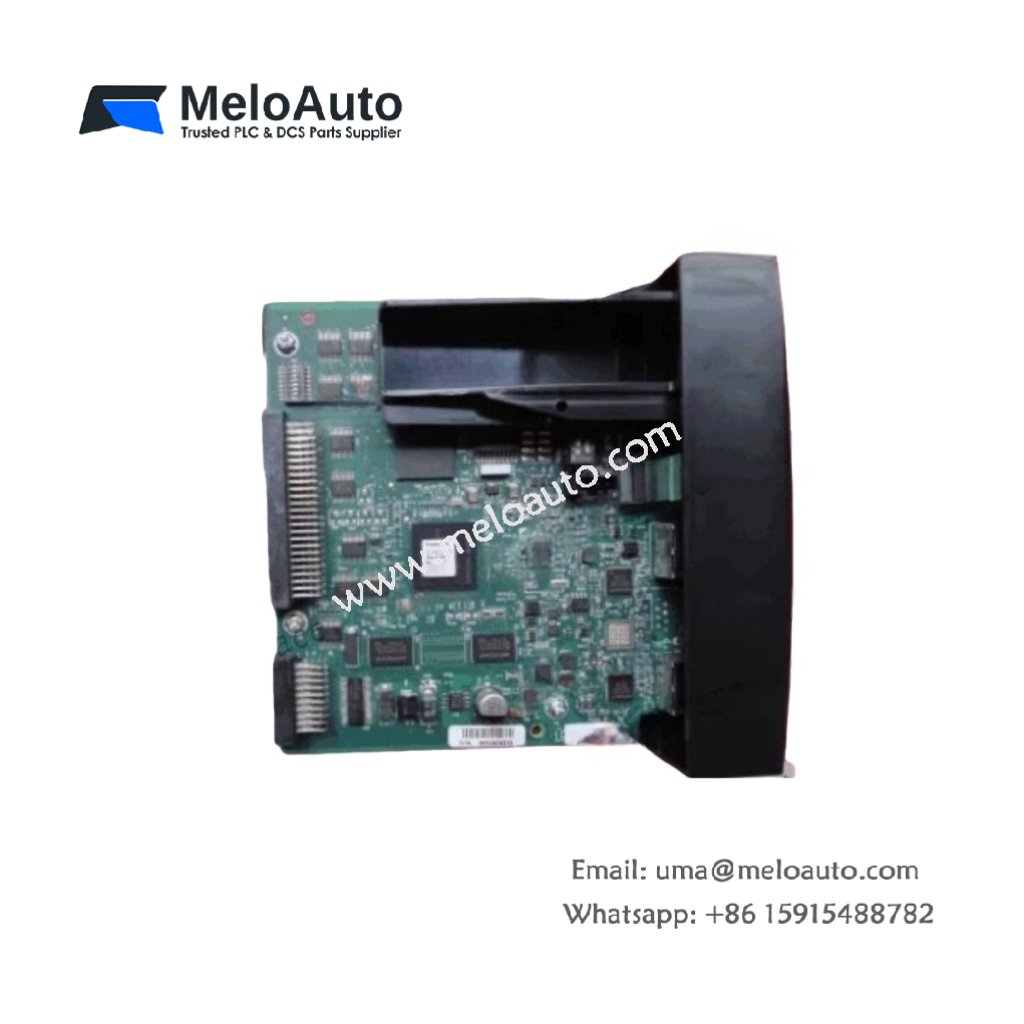

Honeywell 900S75-0460 I/O Scanner Module

The Honeywell 900S75-0460 is a high-performance I/O scanner module designed for seamless communication in industrial automation systems. It ensures reliable, fast, and scalable integration between controllers and distributed I/O devices within the ControlEdge HC900 platform. This module is essential for high-availability systems that demand high-speed data acquisition and robust performance.

Key Features of the Honeywell 900S75-0460

Model: Honeywell 900S75-0460
Manufacturer: Honeywell
Product Type: I/O Scanner Module
Platform: ControlEdge HC900
Communication Protocols: Modbus RTU, Modbus TCP
Communication Ports: Dual I/O rack configurations (2 ports)
Power Supply: 12 V DC
Power Consumption: Less than 2.5 W
Data Acquisition Speed: Up to 100 ms per channel
Supported Signals: Digital and configurable I/O
Ingress Protection: IP65, ensuring dust and water resistance
Operating Temperature Range: -40°C to +85°C
Humidity Range: 5-95% non-condensing
Certifications: CE, UL508, CSA, TUV

The Honeywell 900S75-0460 is ideal for demanding industrial environments, offering fast and reliable data transmission while maintaining low power consumption. Its IP65 rating ensures durability in harsh conditions, making it a perfect choice for both indoor and outdoor applications.

Applications

Industrial Automation: Enables high-speed data acquisition and reliable communication between distributed I/O devices.
Process Control Systems: Ensures seamless integration with various process control systems, improving efficiency and reducing downtime.
Building Automation: Ideal for large-scale building management systems, supporting diverse I/O configurations.
Power Generation: Used in power plants and other energy systems for efficient data management and real-time communication.

Installation and Configuration

Installation: Simply install the Honeywell 900S75-0460 module into a designated slot within the HC900 rack.
Powering: Ensure the system is properly grounded and shielded to meet EMC compliance. Disconnect field power before removing terminal blocks.
Configuration: The module can be configured via Honeywell’s Process Control Designer. DIP switches on the module allow for easy address settings.
Hot Swap Support: The module supports hot-swapping under controller power, ensuring minimal system downtime.
Real-time Diagnostics: Built-in diagnostic LEDs provide immediate status feedback for troubleshooting.

Technical Specifications

Parameter	Value
Model	Honeywell 900S75-0460
Manufacturer	Honeywell
Product Type	I/O Scanner Module
Platform	ControlEdge HC900
Communication Protocols	Modbus RTU, Modbus TCP
Communication Ports	2 ports (dual I/O rack configurations)
Power Supply	12 V DC
Power Consumption	< 2.5 W
Data Acquisition Speed	Up to 100 ms per channel
Supported Signals	Digital, Configurable I/O
Ingress Protection	IP65 (dust and water-resistant)
Operating Temperature	-40°C to +85°C
Humidity	5-95% non-condensing
Dimensions	100 mm x 60 mm x 30 mm
Weight	0.4 kg
Certifications	CE, UL508, CSA, TUV
Country of Origin	USA

Benefits of the Honeywell 900S75-0460

High-Speed Communication: Data is transmitted quickly, with up to 100 ms acquisition speed per channel.
Robust Design: The IP65 rating ensures resistance to dust, water, and harsh environmental conditions.
Scalability: The module supports dual I/O rack configurations, providing flexibility for future expansions.
Efficient Installation: Hot-swap capability and easy configuration simplify installation and maintenance.
