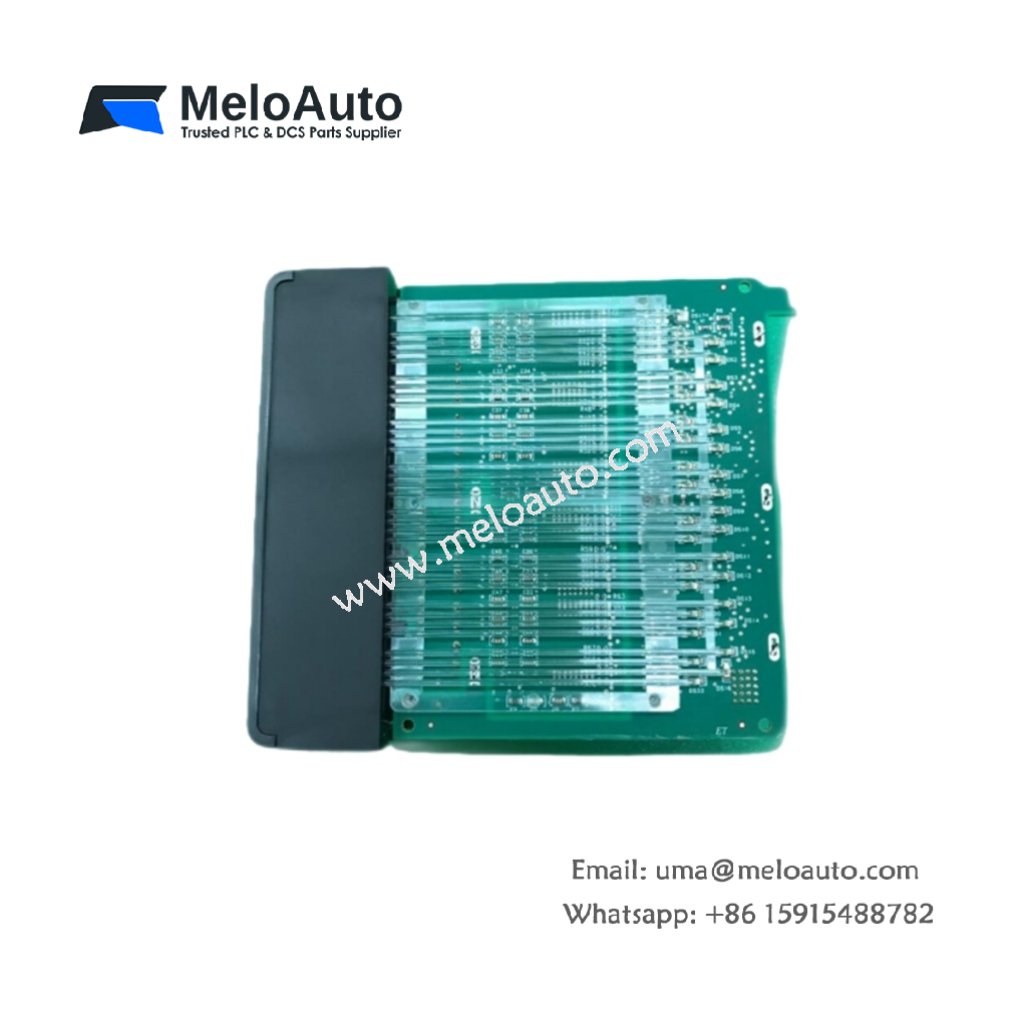

Honeywell 900H32-0102 32-Channel Digital Output Module

The Honeywell 900H32-0102 is a powerful 32-channel digital output module, specifically designed for integration with Honeywell ControlEdge HC900 PLCs. This module provides a dependable and cost-effective solution for controlling various devices, including solenoids, valves, motors, and indicators, ensuring smooth operations in industrial environments.

Key Features:

32 Sourcing-Type Digital Outputs: The module supports a total of 32 outputs, capable of managing multiple industrial devices effectively.
24VDC Nominal Output Voltage: Ideal for devices requiring 24V DC, the module offers high flexibility for various industrial needs.
2A Maximum Output Current per Point: It delivers powerful performance with up to 2A current per point for demanding applications.
Common Ground: A common ground configuration simplifies installation, reducing wiring complexity and the risk of errors.
Galvanic Isolation: The module features galvanic isolation between points and chassis, which protects your system from electrical surges and interference.
Pulse/Frequency Output Capability: Perfect for applications that require pulse and frequency output, providing high precision in control.
NEMA 4X (IP66) Rated Enclosure: This rugged, weather-resistant enclosure ensures the module operates reliably even in harsh industrial environments.

Product Specifications:

Specification	Details
Model	Honeywell 900H32-0102
Channels per Module	32
Output Type	Sourcing, High Side Driver
Nominal Output Voltage	24VDC
Maximum Output Current per Point	2A
Common Ground	Yes
Isolation	Galvanic isolation between points and chassis
Pulse/Frequency Output	Yes
Enclosure Rating	NEMA 4X (IP66)
Operating Voltage	10.5V to 32V DC
Peak Voltage	32V DC
ON Voltage Drop	0.15V DC @ 0.5A load
Overload Protection	Active current limiting, automatic reset
Max Load per Point	0.5A
Max per Channel Group	6A
Max per Module	12A (resistive load)
Lamp Load	0.25A per point, 5 mH max
Dimensions	137mm (H) x 35.6mm (W) / 5.4 in (H) x 1.4 in (W)
Weight	0.18 kg
Shipping Weight	2 kg

General Information:

Manufacturer: Honeywell
Product Number: 900H32-0102
Product Type: Digital Output Module (24VDC, 32 channels)

Why Choose the Honeywell 900H32-0102 Module?

The Honeywell 900H32-0102 module is a versatile and highly reliable component for controlling a wide range of industrial devices. Thanks to its active current limiting and pulse output capability, it is designed for high-performance applications. The IP66-rated enclosure and galvanic isolation ensure protection in harsh conditions, making it suitable for a variety of industries such as manufacturing, oil and gas, and process control.
