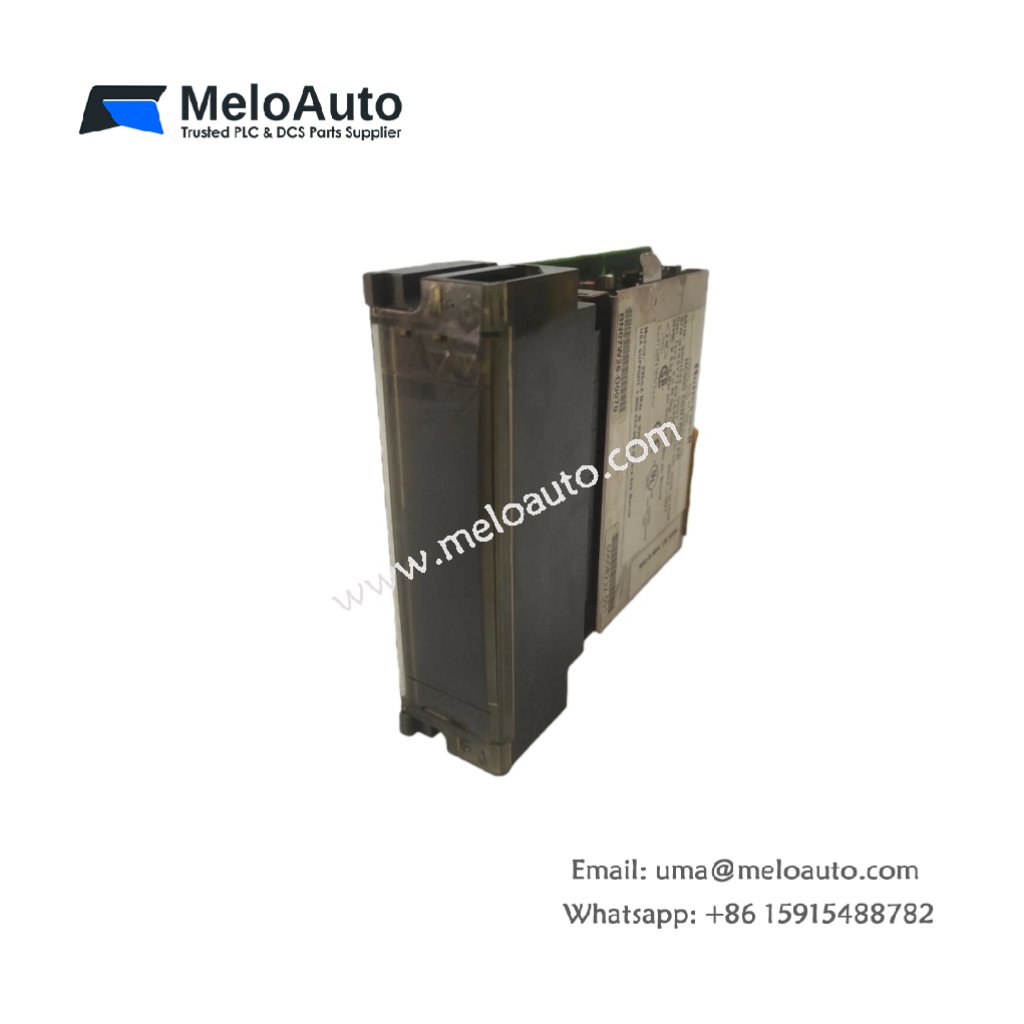

Honeywell 900H32-0001 32-Point Digital Output Module

Overview of the Honeywell 900H32-0001

The Honeywell 900H32-0001 is a high-performance 32-point digital output module. Designed for use in demanding industrial applications, this module supports current sourcing and features galvanic isolation for enhanced protection and signal integrity. It ensures reliable, high-side digital output functionality, making it an essential component in automation systems.

Key Features of the Honeywell 900H32-0001

Manufacturer: Honeywell
Model Number: 900H32-0001
Product Type: 32-Point Digital Output Module
Category: Digital Output Modules
Operating Voltage: 10.5 to 32 VDC
Output Type: High-side driver
Warranty: 12 months
Origin: USA
Condition: Brand new

Technical Specifications of the Honeywell 900H32-0001

Parameter	Value
Outputs per Module	32 outputs (current sourcing, high side)
Galvanic Isolation	2 groups of 16 outputs
Operating Voltage	10.5 to 32 VDC
Peak Voltage	32 VDC
ON Voltage Drop	0.15 VDC @ 0.5 A load
Overload Protection	Active current limiting
Maximum Load Current	0.5 A per point (6 A max per channel group, 12 A max per module)
Maximum Leakage Current	0.15 mA @ 32 VDC
Maximum Inrush Current	2 A for 10 ms
Minimum Load	0.0 mA
Response Time (ON/OFF)	6 ms
Fuses	Electronic limiting

Key Features and Benefits of the Honeywell 900H32-0001

High-Side Digital Outputs: The Honeywell 900H32-0001 features 32 high-side current sourcing outputs, ensuring that the module can reliably control a wide range of devices, including relays and solenoids, with excellent switching performance.
Galvanic Isolation: It offers galvanic isolation in two separate groups of 16 outputs. This feature protects sensitive components from electrical noise and ensures safe and reliable operation, particularly in harsh industrial environments.
Overload Protection: The module integrates active current limiting across four groups of 8 channels. After a fault condition, the module does not require power cycling for reset, allowing for faster recovery and minimal downtime.
High Performance: With a maximum inrush current of 2 A for 10 ms and an OFF to ON response time of just 6 ms, this module offers fast and reliable switching performance, making it suitable for high-speed applications.
Efficient Power Management: The 900H32-0001 efficiently manages power, with a peak voltage of 32 VDC and a maximum leakage current of just 0.15 mA at 32 VDC. This ensures low power consumption while maintaining high system integrity.

Application and Integration

The Honeywell 900H32-0001 module is designed for seamless integration with industrial control systems, where high availability and reliable output are essential. Its high-side output configuration and robust overload protection make it ideal for controlling motors, actuators, and other industrial devices that require stable and safe digital control.

Its galvanic isolation and fast response time ensure that your system remains protected and operates efficiently under various operating conditions. Whether you’re upgrading an existing system or designing a new one, this module offers the durability and performance needed for critical applications.
