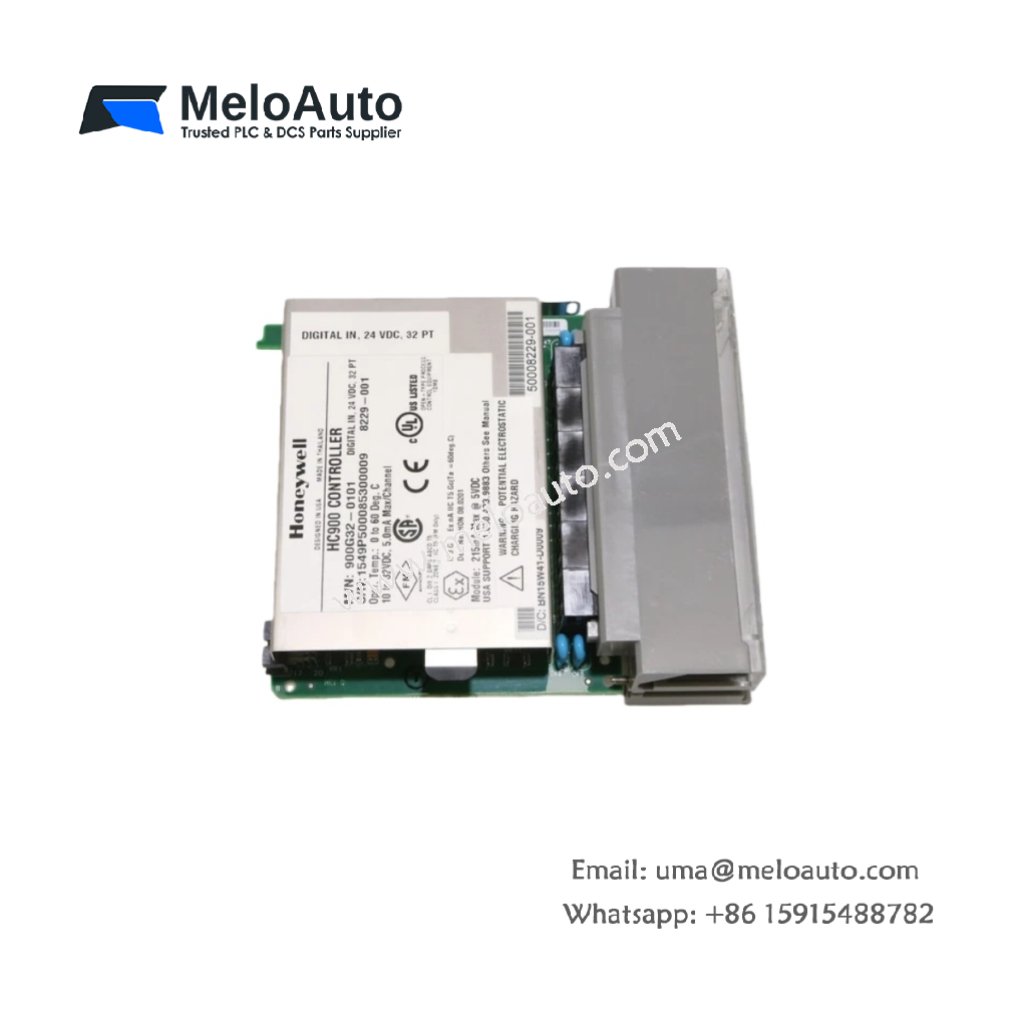

Honeywell 900G32-0101 Digital Input Module

The Honeywell 900G32-0101 is a high-performance digital input module designed for industrial automation systems. This module supports 32 channels, offering precise control over digital inputs with 24V DC signals. It ensures reliable performance with features like galvanic isolation, fast response times, and low power consumption, making it suitable for a variety of industrial applications. With its compact size and robust construction, the Honeywell 900G32-0101 offers seamless integration into Honeywell control systems.

Key Features of the Honeywell 900G32-0101

32 Digital Inputs: The Honeywell 900G32-0101 provides 32 sinking inputs, allowing it to efficiently manage multiple devices or sensors in industrial settings.
Wide Voltage Range: It accepts an input voltage range of 10-32 VDC with a peak voltage of 32 VDC, offering flexibility for various applications.
Galvanic Isolation: The module provides 2 groups of 16 inputs, each offering 30 VDC maximum isolation, ensuring protection from electrical noise and surges.
Fast Response Time: With an ON/OFF response time of just 5 ms, the 900G32-0101 ensures swift and accurate signal processing, reducing delays in industrial systems.
Low Power Consumption: The module operates efficiently with a power supply loading of 5V @ 215 mA max and 24V @ 0 mA for energy-saving operation.
Compact and Lightweight: With dimensions of 137mm x 35.6mm and weighing only 0.175 kg, the module is designed for easy installation in tight spaces.

Technical Specifications

Parameter	Specification
Model	Honeywell 900G32-0101
Type	Digital Input Module (24VDC, 32 Channel)
Inputs per Module	32 (Sinking)
Input Voltage Range	10-32 VDC
Peak Voltage	32 VDC
Galvanic Isolation	2 groups of 16 inputs (30 VDC max)
ON Voltage Level	9.5 VDC
OFF Voltage Level	3.5 VDC
Input Impedance	6.9 kΩ (Nominal)
Input Current	1.7 mA @ 12 VDC; 3.5 mA @ 24 VDC
Minimum ON Current	1.0 mA
Maximum OFF Current	0.7 mA
ON/OFF Response Time	5 ms
Power Supply Loading	5V @ 215 mA max; 24V @ 0 mA
Dimensions	137mm (H) x 35.6mm (W) / 5.4in (H) x 1.4in (W)
Weight	0.175 kg
Shipping Weight	2 kg

Applications

The Honeywell 900G32-0101 is ideal for a variety of industrial automation tasks, including:

Process Control: It efficiently handles multiple input signals from sensors or devices, ensuring smooth process monitoring.
Manufacturing Automation: The module can manage digital inputs from production machinery, ensuring precise and reliable system control.
Energy Management: It is suitable for managing input signals from energy monitoring devices, helping to optimize energy consumption.
Building Automation: The module is effective for controlling and monitoring building systems, such as HVAC or lighting controls.

Conclusion

The Honeywell 900G32-0101 digital input module delivers exceptional performance with its 32 input channels, wide voltage range, and fast response times. Its galvanic isolation and low power consumption make it an excellent choice for industrial automation systems that require reliable and efficient digital input management.
