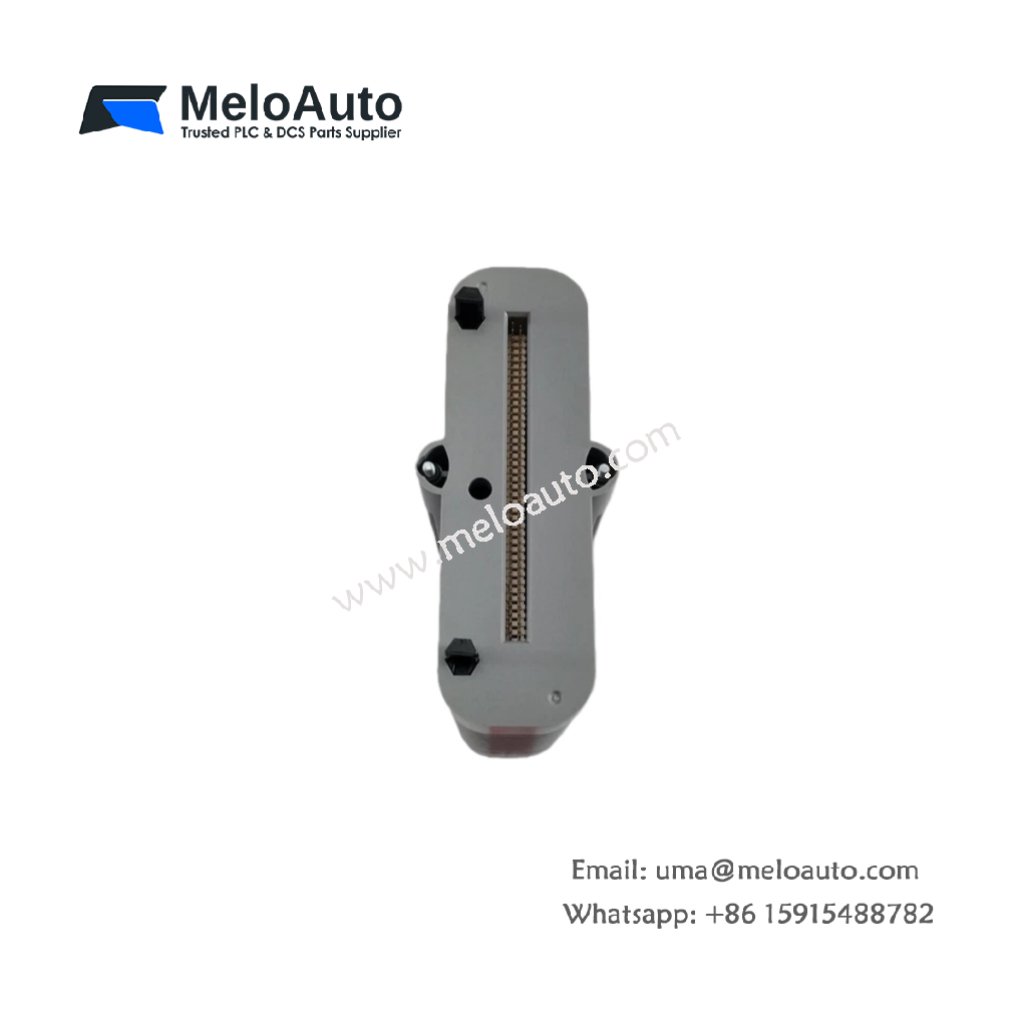

Honeywell 8U-PDODA1 Digital Output Module

Overview

The Honeywell 8U-PDODA1is a versatile and reliable digital output module designed for Honeywell Experion PKS systems. This module enables precise control over various field devices, including solenoids, relays, and actuators, within industrial automation environments. With its 16 output channels, it provides discrete signal control, ideal for critical processes requiring high reliability.

Key Features

Discrete Signal Control: The 8U-PDODA1 interfaces with field devices for on/off switching, providing dependable control of actuators, solenoids, and relays.
Redundancy Support: This module is optimized for fault-tolerant configurations, ensuring reliable performance in mission-critical processes.
Hot-Swappable: The 8U-PDODA1 allows for maintenance without system shutdown, minimizing downtime and enhancing operational efficiency.
Integrated Diagnostics: Real-time fault detection and status monitoring provide valuable insights into system health.
Modular Design: Easily integrates into Honeywell‘s cabinet control architecture for seamless system expansion.
Environmental Protection: Rated NEMA 4/IP66, ensuring reliable operation in harsh industrial environments.

Technical Specifications

Parameter	Specification
Model Number	8U-PDODA1
Part Number	51454472-175
Product Type	Digital Output Module
Output Channels	16
Output Voltage	24 VDC
Channel Load Capacity	0.5 A max per channel
Power Consumption	95 mA
Mounting	Series 8 chassis
Operating Temperature Range	-40°C to +85°C (-40°F to 185°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions (L x W x H)	61 mm x 153 mm x 144 mm
Weight	0.3 kg
Protection Rating	NEMA 4/IP66

Additional Features

High-Speed Switching: Provides quick and reliable switching for field devices, supporting efficient control in fast-paced industrial applications.
Reverse Polarity Protection: Safeguards the module against polarity reversals to prevent potential damage.
Output Short Circuit Protection: Built-in protection to handle short circuits, ensuring system reliability.
Diagnostics: The module supports advanced diagnostics, allowing real-time system health monitoring.

Applications

The Honeywell 8U-PDODA1 digital output module is ideally suited for a wide range of industrial automation applications, including:

Process Control: Reliable control of actuators, relays, and solenoids in process automation systems.
Manufacturing Automation: Ensures efficient control of machinery and field devices in manufacturing environments.
Chemical Processing: Provides robust and fault-tolerant control of critical process components in hazardous environments.
Power Generation: Ideal for managing output devices in power generation facilities, ensuring continuous and reliable operations.

Why Choose the Honeywell 8C-PDODA1?

The Honeywell 8U-PDODA1 offers a reliable, efficient, and versatile solution for controlling discrete outputs in industrial environments. Its hot-swappable design and built-in diagnostics improve uptime and reduce maintenance costs, making it the ideal choice for critical applications. Additionally, its compact size, environmental protection, and redundancy support make it a durable and dependable module for high-performance automation systems.
