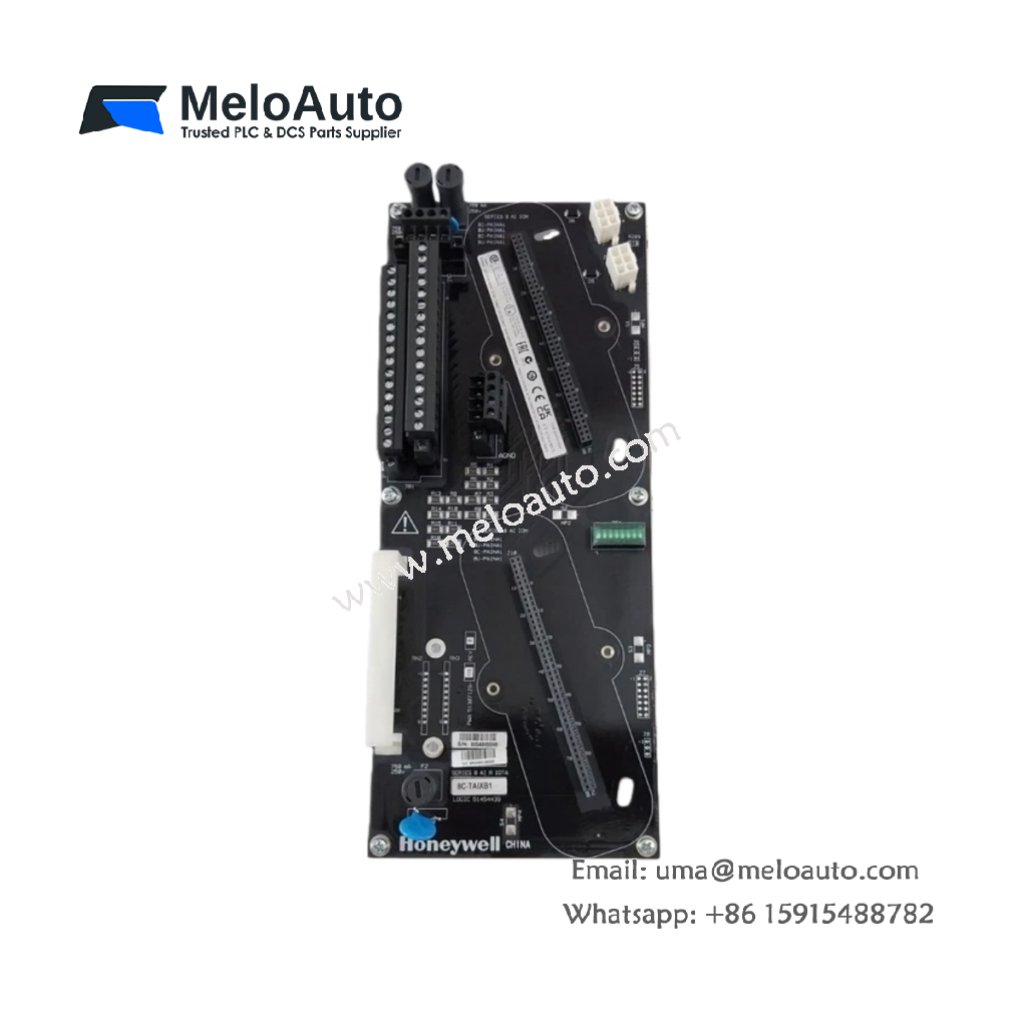

Honeywell 8C-TAIXB1 Analog Input Module

The Honeywell 8C-TAIXB1 is a robust analog input module designed for seamless integration into the Honeywell Experion Process Knowledge System (PKS). This module connects single-ended analog input devices to the Series 8 controller, providing high accuracy and reliability for real-time process automation. The 8C-TAIXB1 module is ideal for demanding environments, ensuring stable performance in a wide range of industrial applications.

Key Features of the Honeywell 8C-TAIXB1 Module

16 single-ended analog input channels for versatile connectivity.
Supports 4-20mA current input, ideal for industrial sensors.
Compatible with HART sensors, offering flexibility for complex systems.
Precision accuracy with ±0.05% full scale for reliable data conversion.
Designed to operate in a wide temperature range: -20°C to +70°C.
NEMA 4/12, IP66/67 rated for superior protection in harsh environments.
Quick and easy installation with DIN rail or panel mounting options.

Applications of the Honeywell 8C-TAIXB1

Process Control: Ideal for industrial automation systems.
Machine Control: Ensures precise control in manufacturing processes.
Robotics: Provides accurate data for robotic operations.
Testing & Measurement: Perfect for precision testing in lab environments.
Data Acquisition: Collects and processes data from field devices in real time.

Technical Specifications

Specification	Value
Model	8C-TAIXB1
Part Number	51307127-175
Module Type	Analog Input
Number of Channels	16
Input Type	Single-ended analog current
Input Range	4-20 mA
Accuracy	±0.05% of full scale
Resolution	16-bit ADC
Input Impedance	>250Ω (current), >1MΩ (voltage)
Response Time	<100 ms
Isolation	Optical isolation
Power Supply	24 VDC
Power Consumption	5 W
Operating Temperature	-20°C to +70°C
Relative Humidity	0% to 95% (non-condensing)
Dimensions	220 mm x 120 mm x 152.4 mm
Weight	0.3 kg
Protection Rating	NEMA 4/12, IP66/67
Mounting	DIN rail or panel

Dimensions and Weight

Dimensions: 220 mm x 120 mm x 152.4 mm
Weight: 0.3 kg

The Honeywell 8C-TAIXB1 is engineered to support complex industrial processes by offering high performance, exceptional accuracy, and environmental resilience.
