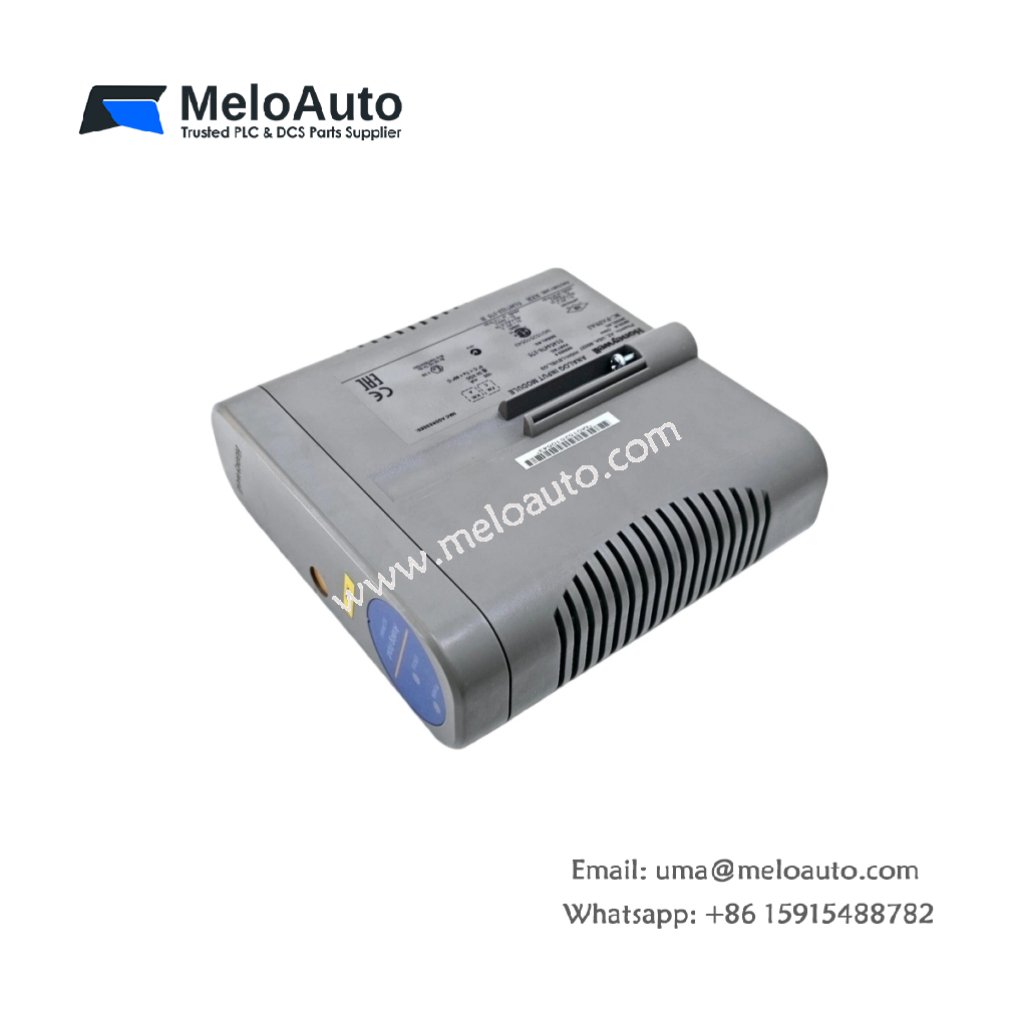

Honeywell 8C-PAINA1 Analog Input Module – High-Performance and Reliable

The Honeywell 8C-PAINA1 is an advanced analog input module designed to efficiently connect analog field devices to the Honeywell Experion Process Knowledge System (PKS). This module supports a wide range of input signals, including 4-20 mA current loops and 0-10 VDC voltage signals, making it a versatile choice for many industrial applications. Additionally, the 8C-PAINA1 features a durable, coated design, providing protection against harsh environmental factors like dust, moisture, and contaminants. This protective coating enhances the module’s reliability in demanding conditions, ensuring stable operation.

Key Features of the Honeywell 8C-PAINA1:

• Equipped with 16 channels for simultaneous analog signal input, making it suitable for large-scale systems.
• Supports both 4-20 mA and 0-10 VDC signals, which provides flexibility for various field devices.
• The coated module protects the internal components from environmental risks, including dust and moisture.
• Offers high accuracy with a tolerance of ±0.196%, ensuring precise data capture.
• Features isolated inputs, which safeguard against ground loop interference, thereby maintaining signal integrity.
• Designed for easy installation and low maintenance, reducing system downtime.

Honeywell 8C-PAINA1 Technical Specifications:

Advantages of Using the Honeywell 8C-PAINA1:

The Honeywell 8C-PAINA1 module ensures optimal performance in industrial automation systems. By supporting both current and voltage input signals, it accommodates a wide array of field devices, making it ideal for diverse industrial applications. Moreover, its isolated inputs prevent the risk of ground loops, which can distort signal readings and compromise system reliability.

Furthermore, the 8C-PAINA1 operates efficiently in temperatures ranging from -40°C to 85°C, ensuring stability in extreme conditions. With its robust design and high-precision measurements, this module proves to be a valuable asset in process control, data acquisition, and industrial automation tasks.

Applications:

• Process Control: The 8C-PAINA1 module optimizes control processes by delivering accurate, real-time data from field devices.
• Data Acquisition: It reliably collects and transmits data, facilitating detailed monitoring and analysis.
• System Monitoring and Control: With its high accuracy, it supports constant monitoring and control in automated systems.
• Industrial Automation: The 8C-PAINA1 plays a crucial role in automating industrial operations, enhancing efficiency and minimizing downtime.
