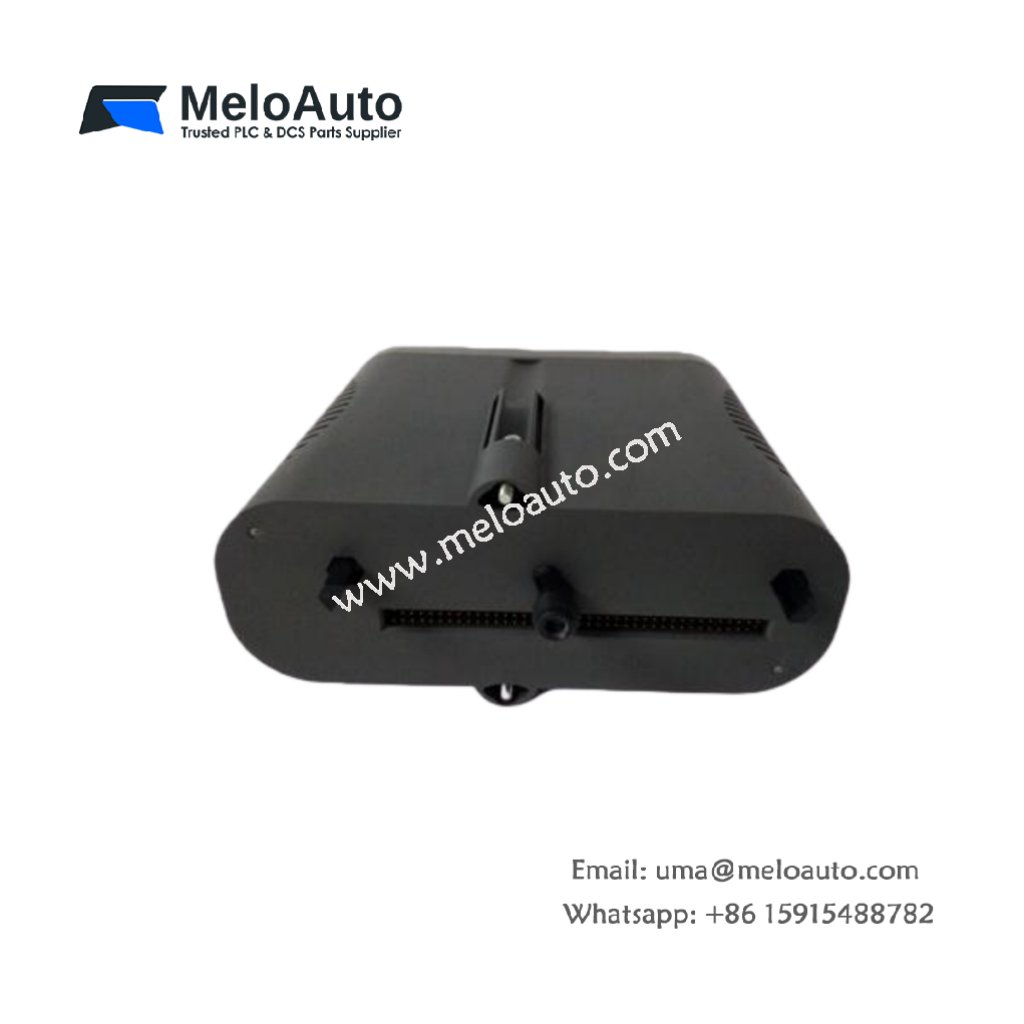

Honeywell 8C-IP0102 PROFIBUS Gateway Module

Overview

The Honeywell 8C-IP0102 is a highly reliable PROFIBUS Gateway Module designed to enable seamless communication between Honeywell control systems and PROFIBUS devices in industrial environments. This module integrates effectively with Honeywell’s automation systems, providing a robust solution for the connection and control of both PROFIBUS DP and PROFIBUS PA devices. With this module, users can achieve efficient process control and enhanced connectivity within demanding industrial applications.

Key Features

Versatile Communication: Supports PROFIBUS DP (V), including both standard and extended status bytes, to ensure effective communication.
Module Types: Available in two configurations: coated and uncoated, ensuring compatibility with diverse operational environments.
Hot-swappable Design: Allows easy module removal and insertion under power without disrupting the system’s operation.
Field Device Integration: Supports Field Device Manager (FDM), allowing seamless integration and management of devices.
Asset Management Support: Fully compatible with Honeywell FOM, enabling communication with PROFIBUS devices via DTMs.
Redundancy Features: Provides DP Network Media Redundancy using third-party redundancy link modules, ensuring continuous operation in case of network failure.

Technical Specifications

Feature	Specification
Model	8C-IP0102
Manufacturer	Honeywell
Communication Protocol	PROFIBUS DP (V1, V2)
Voltage Rating	24 VDC
Module Current Rating	43.8 mA
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 85°C
Mounting	Standard Series 8 mounting assembly
Power Requirements	Standard Series 8 power system
PROFIBUS DP Supported	Yes, with standard and extended status bytes
PROFIBUS PA Supported	Yes, via third-party PA to DP converters
Redundancy	Supported with third-party redundancy modules
HART over PROFIBUS	Yes, via FOM and compatible slaves
Safety Certifications	Class I, Division 2, Groups A, B, C, D; T4

Additional Features

Module Configuration: The Honeywell 8C-IP0102 supports PROFIBUS PA devices through third-party PA to DP converters and couplers, making it versatile for various industrial needs.
Safety Certifications: It complies with Class I, Division 2, Groups A, B, C, D; T4 and ATEX Zone 2 certifications, ensuring safe operation in hazardous areas.
Asset Management: Facilitates asset management using Honeywell FOM, enabling smooth communication with PROFIBUS devices via DTM simulations (supported in R110 version).

Applications

The Honeywell 8C-IP0102 is an ideal solution for industries that require seamless integration between control systems and field devices. Its reliable performance and advanced features make it suitable for:

Industrial Process Control: Connect and manage PROFIBUS devices for efficient monitoring and control in complex industrial processes.
Factory Automation: Improve the automation and management of factory machinery and equipment.
Energy and Utilities: Utilize the module for precise control and monitoring in power generation and distribution systems.
Building Automation: Integrate and control various building systems, ensuring efficient operation and energy management.

Product Description

The Honeywell 8C-IP0102 PROFIBUS Gateway Module provides an efficient and reliable interface between Honeywell control systems and PROFIBUS devices. With support for both PROFIBUS DP and PA, this module ensures seamless communication across multiple devices, optimizing system performance and control. It is compatible with HART over PROFIBUS, allowing integration with HART-enabled devices for real-time diagnostics and monitoring.

Its hot-swappable design and redundancy features provide high availability and ensure system continuity, even in harsh industrial environments. The module is safety certified, making it suitable for use in hazardous areas. It supports both coated and uncoated versions, providing flexibility in various installation environments.

The Honeywell 8C-IP0102 is an excellent choice for industries looking for high-performance and reliable communication solutions for their automation and control systems.
