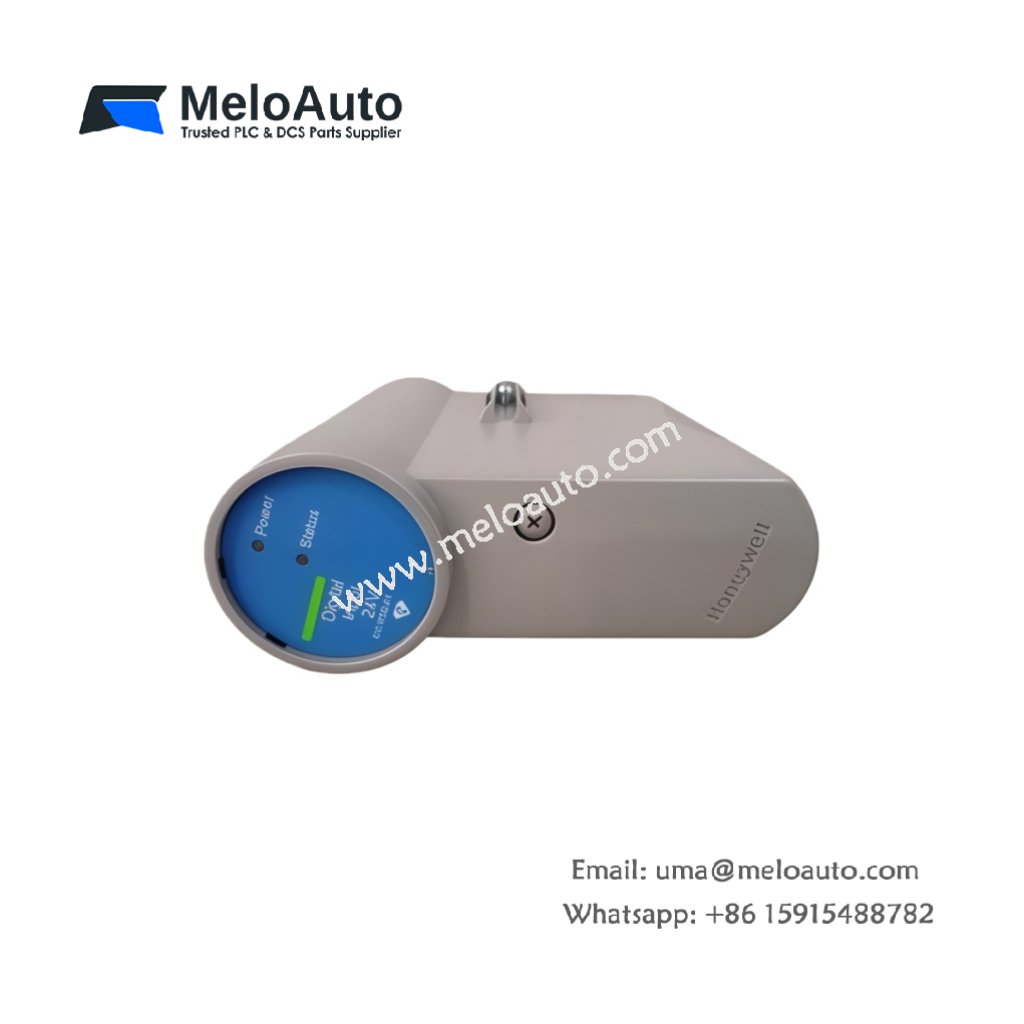

Honeywell 51405040-175 Digital Input 24V Module

Overview

The Honeywell 51405040-175 is a high-performance Digital Input 24V Module, specifically designed for efficient control in industrial automation systems. It excels in distributed control systems (DCS), delivering reliable and accurate input processing. Engineered by Honeywell, this module ensures optimal operation in demanding environments.

Key Features of the Honeywell 51405040-175

Product Type: Digital Input 24V Module, ideal for controlling and monitoring on/off signals in industrial applications.
Input Channels: Supports 32 input channels for increased connectivity.
Galvanic Isolation: Provides 1500 VAC RMS or 1500 VDC isolation, ensuring safe operation in electrically noisy environments.
Turn-On/Turn-Off Time: Fast response with a maximum of 10 ms, improving overall system efficiency.
Off-State Leak Current: Minimal leak current of 0.5 µA (maximum), ensuring accurate off-state behavior.

Electrical Specifications

Specification	Details
Product Type	Digital Input 24V Module
Category	Input Module
Weight	0.4 kg (0.88 lbs)
Dimensions	19.1 cm x 18.8 cm x 6.5 cm
Operating Voltage	24 VDC
Input Channels	32 Channels
On-State Voltage	24 V (typical)
Load Current	0.5 A per channel
Off-State Voltage	0 VDC (maximum)
Off-State Leak Current	0.5 µA (maximum)
Turn-On/Turn-Off Time	10 ms (maximum)
Galvanic Isolation	1500 VAC RMS or 1500 VDC

Description

The Honeywell 51405040-175 Digital Input 24V Module offers exceptional functionality for industrial automation systems. It provides 32 input channels with a typical on-state voltage of 24 V and supports a 0.5 A load current per channel. The module operates efficiently with 24 VDC input voltage and ensures fast signal processing with a maximum turn-on/turn-off time of just 10 ms.

Equipped with galvanic isolation of 1500 VAC RMS or 1500 VDC, the 51405040-175 offers superior protection against electrical noise and voltage spikes, ensuring safe operation in industrial environments. Additionally, it features a minimal off-state leak current of 0.5 µA, providing precise control over input states.

This module’s compact design allows for easy integration into your system, measuring 19.1 cm x 18.8 cm x 6.5 cm and weighing just 0.4 kg. It is designed for distributed control systems (DCS), where high-speed, reliable digital inputs are critical for system performance.

Applications

Industrial Automation: Ideal for monitoring binary on/off inputs in various automated systems.
Distributed Control Systems (DCS): Perfect for integration into large-scale control systems.
Process Control: Ensures accurate and fast control for diverse industrial processes.

Benefits

Efficiency: Fast response times improve system performance.
Safety: High isolation protects sensitive equipment from electrical interference.
Reliability: Minimal leak current and robust design ensure long-term, stable operation.
