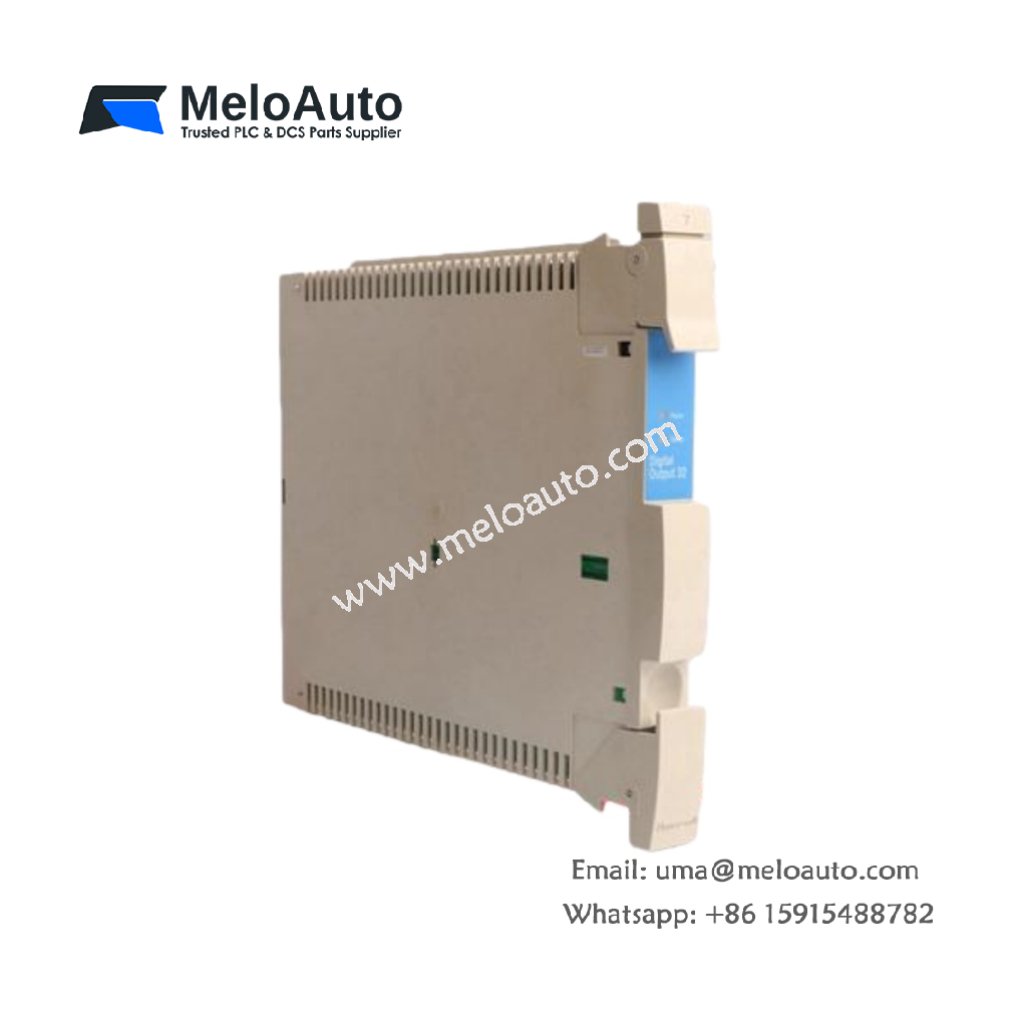

Honeywell 51405039-175 HART Analog Output Module

Overview

The Honeywell 51405039-175 is a high-performance HART Analog Output Module designed to deliver reliable and precise analog signal output. With flexible input ranges and exceptional accuracy, it ensures superior performance across a variety of industrial control systems. Ideal for applications such as temperature, pressure, and flow measurement, the 51405039-175 module ensures consistent and accurate control in demanding environments.

Key Features

Wide Input Voltage and Current Ranges for enhanced versatility
High Accuracy ensuring precise output signals
High Resolution (12-bit) for optimal signal clarity
Fast Update Rate of 100ms for real-time data processing
Easy Configuration to simplify system integration
Multiple Output Channels for greater flexibility in signal management

Technical Specifications

Specification	Details
Manufacturer	Honeywell
Model	51405039-175
Product Type	HART Analog Output Module
Input Voltage Range	-10V to 40V
Input Current Range	4mA to 20mA
Accuracy	±0.2596% of full scale
Resolution	12 bits
Update Rate	100ms
Output Type	4-20mA
Output Channels	16
Output Ripple	<100 mV peak-to-peak (at 250 ohm load)
Output Temperature Drift	±0.005% of Full Scale/°C
Output Readback Accuracy	+4% of Full Scale
Output Current Linearity	+0.05% of Full Scale nominal
Resolution	0.35% of Full Scale (25°C)
Calibrated Accuracy	+0.05% of Full Scale
Directly Settable Output Current Range	2.9 mA to 21.1 mA
Maximum Resistive Load	800 ohms (with 24V supply)
Maximum Output Compliant Voltage	16V (with 24V supply)
Maximum Open Circuit Voltage	22V
Response Time	Settles within 1% of final value in 82 ms
Gap (0 mA) of Output to Field on Switchover	10 ms maximum (for redundancy)

Description

The Honeywell 51405039-175 module provides high-precision analog output with HART communication. It supports a wide input voltage range from -10V to 40V and accommodates an input current range of 4mA to 20mA. The module features 16 output channels and supports a 12-bit resolution, offering fine control over analog signals.

With an impressive accuracy of ±0.2596% of full scale and a fast update rate of 100ms, it provides real-time signal updates, making it ideal for applications requiring quick and precise measurements. The output ripple is minimal, with a peak-to-peak value of less than 100mV across a 250 ohm load, ensuring clear and stable signal transmission.

The module is specifically designed for applications that involve critical process control and measurement tasks, such as temperature, pressure, flow, and level measurement, as well as machine monitoring and data acquisition.
