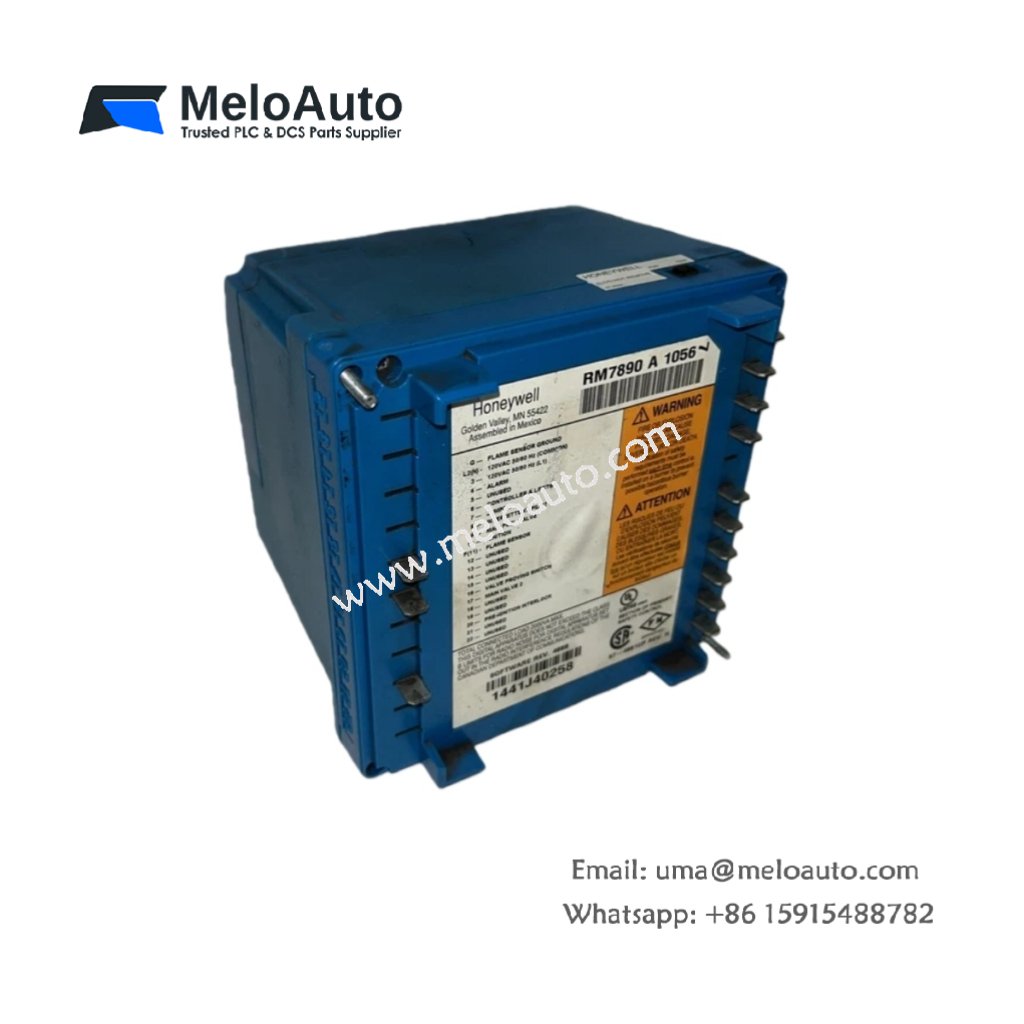

Honeywell RM7890A1056 Burner Control Unit

The Honeywell RM7890A1056 is a highly efficient burner control unit from the 7800 series. It provides reliable control for burners in industrial and commercial applications, ensuring safe operation and optimal performance. This unit supports both intermittent pilot and main flame control, with precise ignition timing and flame establishment features. The Honeywell RM7890A1056 is designed for 120 VAC, 50/60 Hz systems, making it versatile for a wide range of burner types.

Key Features of the Honeywell RM7890A1056

Intermittent Pilot Control: The Honeywell RM7890A1056 manages the intermittent pilot type, ensuring stable and efficient burner operation during on/off cycles.
Preignition Control: The unit integrates preignition protection, preventing burner ignition failures and enhancing safety during startup.
Flame Establishment Timing: It supports 4 or 10-second pilot flame establishment periods, providing flexibility depending on system requirements.
Main Flame Control: The unit manages the intermittent main flame establishment period, ensuring smooth transitions between the pilot and main flames.
Wide Voltage Compatibility: The Honeywell RM7890A1056 operates on 120 VAC and is compatible with 50/60 Hz power supply frequencies, making it adaptable to various installations.
Reliable Performance: Built to withstand industrial environments, this unit ensures durable and consistent performance, reducing downtime and maintenance costs.

Technical Specifications

Parameter	Specification
Model	Honeywell RM7890A1056
Type	Burner Control Unit
Series	7800 Series
Control Type	Intermittent Pilot, Main Flame Control
Pilot Flame Establishment Period	4 or 10 Seconds
Preignition Control	Yes
Main Flame Establishment Period	Intermittent
Voltage Rating	120 VAC
Frequency	50/60 Hz
Power Consumption	10 W
Dimensions	Compact and installation-friendly
Weight	Lightweight, for easy handling

Applications

The Honeywell RM7890A1056 is ideal for a variety of industrial and commercial applications, including:

Burner Systems: It efficiently controls burner operation in a wide range of combustion processes.
Industrial Heating Systems: The unit is essential for managing pilot and main flame ignition in heating equipment.
HVAC Systems: It provides precise flame control for heating and ventilation systems, ensuring safety and efficiency.
Manufacturing Facilities: The Honeywell RM7890A1056 is designed to improve the reliability of burner systems in manufacturing processes requiring precise temperature control.

Conclusion

The Honeywell RM7890A1056 burner control unit is a vital component in any industrial burner system. With its ability to control both intermittent pilot and main flame operation, along with preignition protection, it offers high reliability and safety. Its compatibility with 120 VAC and 50/60 Hz power makes it a versatile choice for various industrial applications, ensuring optimal performance and reducing maintenance needs.
