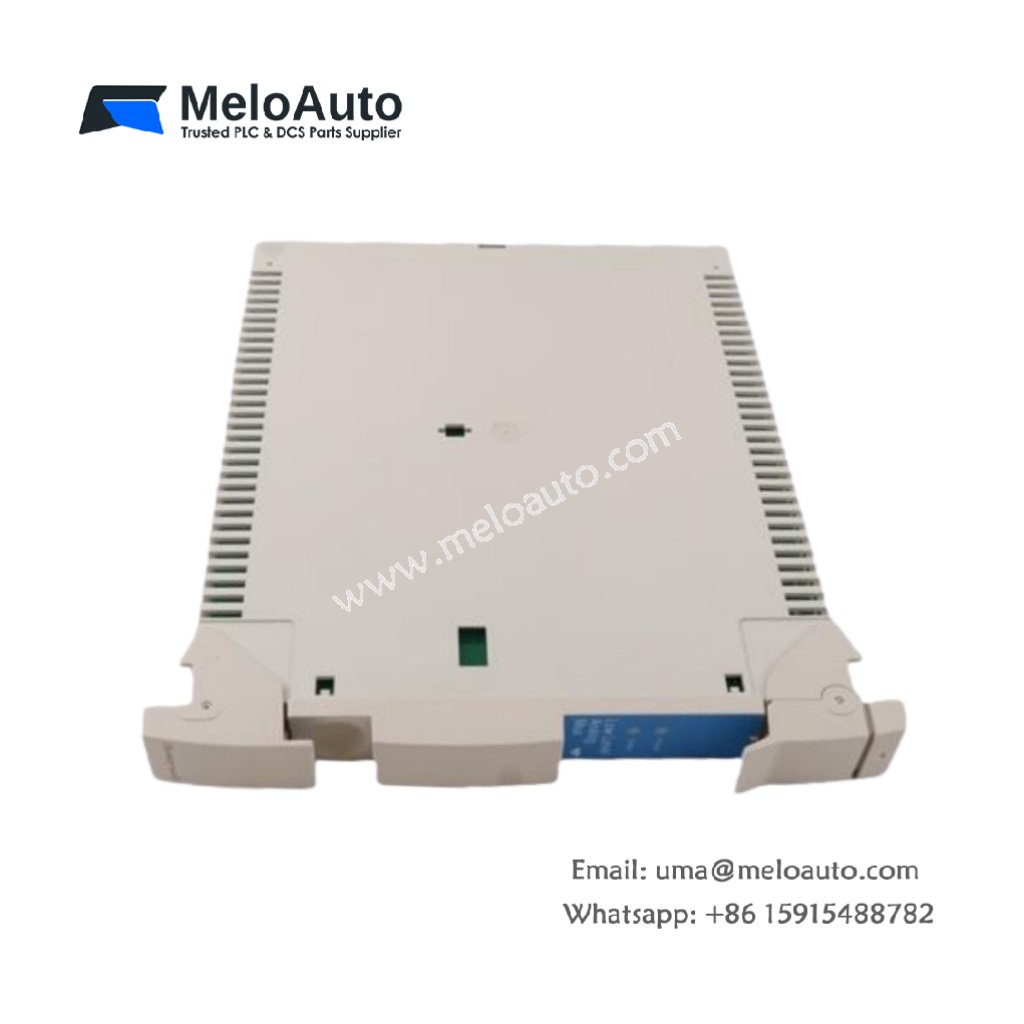

Honeywell 51307094-100 12-Channel Digital Output Module

Overview

The Honeywell 51307094-100 is a robust 12-channel digital output module, designed for seamless integration with the Honeywell C300 controller. This module provides dry contact relay outputs, allowing for efficient control of devices such as relays, solenoid valves, and actuators. It includes features like programmable debounce, filtering, and limiting, all of which contribute to stable and reliable operation in industrial environments. Additionally, the module offers LED status indicators for each output channel, making it easy to monitor the system’s status at a glance.

This module is widely used in industrial automation, process control, and machine automation systems, as well as building automation. It enhances system flexibility and reliability, ensuring smooth operations in various applications.

Technical Specifications

Parameter	Specification
Model Number	51307094-100
Type	Digital Output Module
Number of Channels	12
Output Type	Dry contact relay
Output Voltage Range	24VDC
Output Current	2A
Accuracy	±0.19% of full scale
Resolution	12-bit
Programmable Features	Debounce, Filtering, Limiting
LED Status Indicators	Yes, for each output
Slot Type	Single-slot module
Mounting	DIN rail mounting

Key Features

12 Channels: The module supports 12 digital output channels, each capable of handling up to 2A of current.
Dry Contact Relay Outputs: It provides reliable control over a range of devices, ensuring stability and durability.
Programmable Debounce: Users can customize debounce settings to prevent false triggers, improving the system’s accuracy.
Noise Filtering: The module filters out unwanted noise, ensuring clean and stable signals for smooth operation.
Output Limiting: You can program the output to limit pulse durations, helping prevent potential system overloads.
LED Indicators: Clear LED status indicators for each output channel offer real-time operational feedback, simplifying diagnostics and monitoring.
Easy Installation: With a single-slot design, it integrates easily into the C300 chassis, streamlining setup and maintenance.

Applications

Industrial Automation: Perfect for controlling relays, solenoids, actuators, and more in automation systems.
Process Control: Widely used for regulating process variables and controlling valves or actuators in various industries.
Manufacturing: Ideal for machine control, enabling seamless automation on production lines.
Security: The module supports integration into security systems for controlling alarms and other devices.
Building Automation: It fits well into smart building systems, providing flexible and reliable control.
