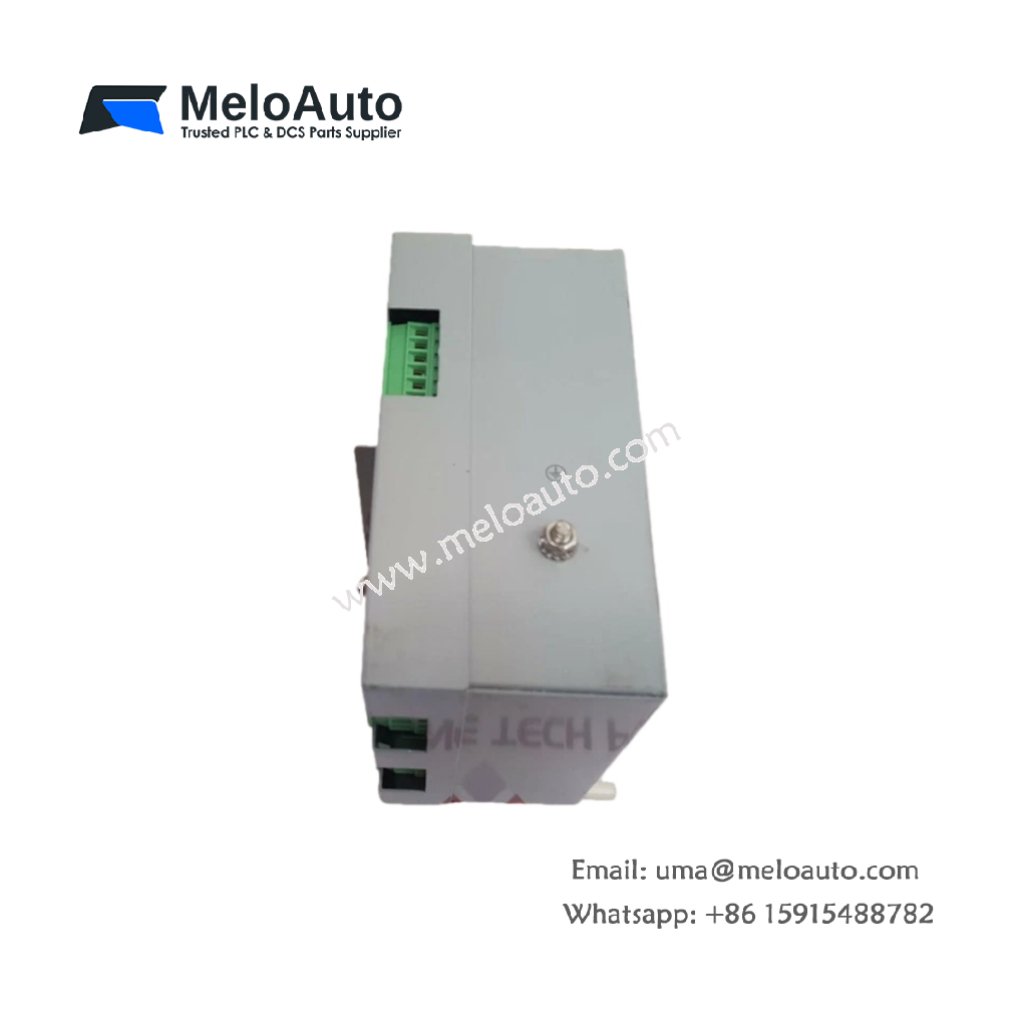

Honeywell 51306344-101 Digital Input Module

Overview

The Honeywell 51306344-101 is a high-performance digital input module designed for industrial automation and process control. It features sixteen 24V DC digital input channels, ensuring reliable operation in various industrial applications. This module offers precise and fast data processing, making it ideal for systems that require continuous, real-time monitoring.

Key Features

Compact Design: The Honeywell 51306344-101 is lightweight and compact, making it easy to install in tight spaces.
Quick Installation: It offers a simple plug-and-play setup, allowing users to get started quickly.
High Performance: With a fast response time and superior accuracy, this module meets the demands of high-performance digital input applications.
Reliable Operation: Designed to function seamlessly in harsh environments, it ensures dependable operation even under challenging conditions.

Technical Specifications

Feature	Specification
Model Number	51306344-101
Manufacturer	Honeywell
Number of Channels	16 digital input channels
Input Voltage	24V DC
Input Current	7mA at 24V DC
Input HIGH	> 15V DC
Input LOW	< 9V DC (I < 2mA)
Input Delay	Typically 10ms
Power Requirements	5V DC 8mA, 24V DC int. 110mA, 24V DC ext. 110mA
Ripple Content (on 5V DC)	< 0.5V p-p (10-360Hz)
Space Requirements	4TE, 3HE (4HP, 3U)
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	0% to 95% RH, non-condensing

Applications

The Honeywell 51306344-101 is versatile, supporting a wide range of industrial automation and process control systems. Here are some common applications:

Industrial Automation: Perfect for machine control, process monitoring, and conveyor belt control systems.
Process Control: Ideal for monitoring and controlling industrial processes like chemical production, food processing, and water treatment.
Safety Systems: The module is critical for safety systems, including emergency shutdown systems and machine guarding.
Machinery Monitoring: It can monitor the operation of motors, pumps, compressors, and other industrial machinery.
Robotics: Provides essential input signals for robots and automated systems in industrial settings.
Transportation Systems: Suitable for monitoring and controlling transportation systems like conveyor belts, baggage handling, and traffic control systems.
