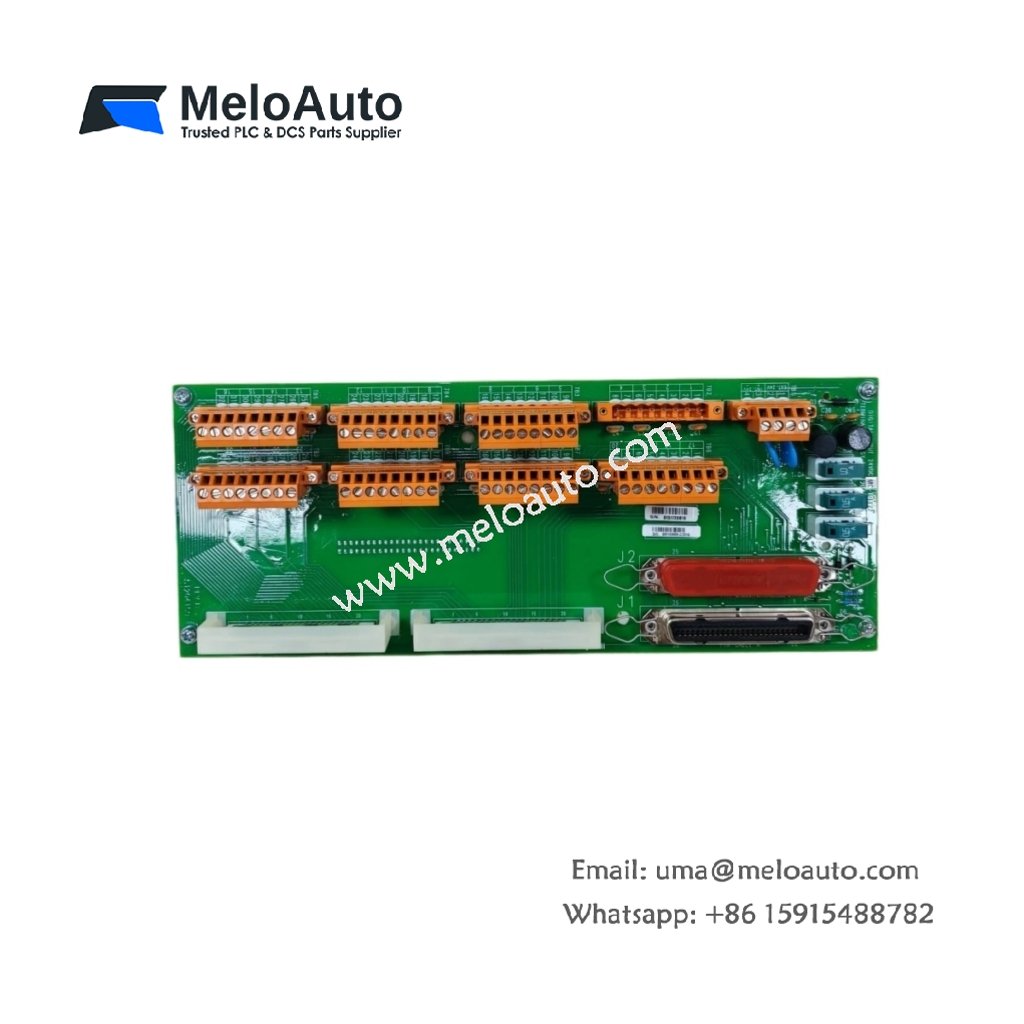

Honeywell 51204160-175 MC-TDIY22 Digital Input FTA

Product Overview

The Honeywell 51204160-175 MC-TDIY22 serves as a field termination assembly for digital input signals. This FTA board consolidates wiring from field devices like switches and sensors. It provides a clean interface between the plant floor and the I/O module. The unit mounts inside Honeywell Series C cabinets for organized signal management.

Technical Specifications

Parameter	Specification
Model Number	51204160-175 MC-TDIY22
Product Type	Digital Input Field Termination Assembly
Number of Channels	32 discrete input terminations
Nominal Voltage	24 VDC
Input Signal Types	Dry contact, proximity sensors, limit switches
Terminal Type	Screw-clamp barrier strip
Wire Gauge	14–22 AWG
Termination Points	32 individual screw terminals
Common Bus	4 common return terminals
Operating Temperature	0°C to 60°C
Storage Temperature	–40°C to 85°C
Humidity Tolerance	5% to 95% RH non-condensing

Physical Dimensions and Construction

This board measures 215 mm in width, 165 mm in depth, and 45 mm in height. The assembly weighs approximately 0.62 kg. It features a rugged PCB with clearly labeled termination positions. The board mounts vertically on DIN rails or directly onto backplates. Each channel includes a dedicated position marker for easy identification. The layout uses color-coded terminal blocks that simplify wiring verification.

Electrical Interface and Field Connectivity

A 50-pin ribbon cable connector links this FTA to the associated digital input module. The board distributes incoming signals across 32 individual screw-clamp terminals. Each terminal accepts solid or stranded copper wire from 14 to 22 AWG. The board provides four common return terminals for completing field device circuits. This common bus arrangement reduces the number of return wires needed. Field devices like push buttons, limit switches, and proximity sensors connect directly to these terminals.

Input Configuration and Signal Handling

The 51204160-175 MC-TDIY22 supports both dry contact and powered sensor inputs. Each channel includes a built-in pull-up resistor for dry contact applications. The board routes the input signals to the module through the ribbon cable connection. The PCB design minimizes signal cross-talk between adjacent input channels. Consequently, this ensures reliable detection of each discrete state change. The board also includes built-in transient suppression for protection against voltage spikes.

Installation and System Integration

You can install this FTA in any Honeywell Series C or TDC 3000 cabinet. The mounting holes align with standard rail profiles for rapid installation. The ribbon cable connector features a keyed design to prevent incorrect orientation. Always route field wiring separately from high-voltage or power cables. For critical signals, consider using shielded cables and proper grounding techniques. Verify the input voltage matches the sensor specifications before energizing the system.

Environmental Compliance and Durability

This board meets RoHS standards for restricted substance content. It also carries UL 508 and CSA C22.2 approvals for industrial equipment. The conformal coating protects the PCB against humidity and airborne contaminants. This coating extends the board’s operational life significantly.
