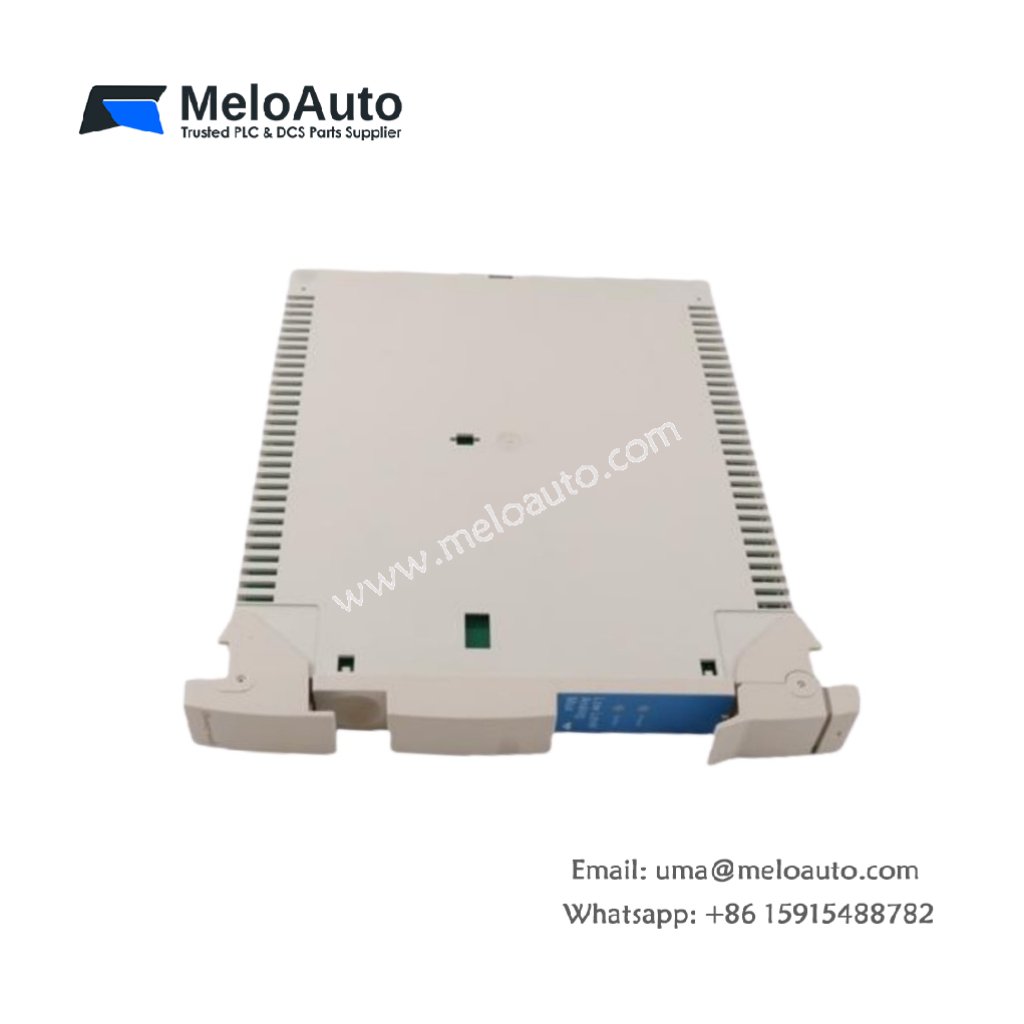

Honeywell 51155506-101 Isolated Analog Output Module

Overview

The Honeywell 51155506-101 Isolated Analog Output Module offers precise and reliable analog signal output for industrial applications. This module ensures safe and accurate signal transmission with excellent isolation. It delivers multiple output configurations, providing flexibility for different system requirements. The design makes integration seamless, ensuring compatibility with a variety of control and monitoring equipment.

Key Features

High Isolation: With 1500 VDC isolation, the module shields the system from electrical surges, ensuring safe operation.
Precise Output: Achieves 16-bit resolution, delivering high accuracy for critical industrial applications.
Flexible Output Range: Supports 0-20 mA and 4-20 mA, allowing for varied output options based on system needs.
Wide Operating Range: Functions within -20°C to +70°C, making it ideal for harsh industrial environments.
Energy Efficient: The module consumes only 2.5 W, optimizing power usage in your system.

Technical Specifications

Specification	Details
Model	51155506-101
Output Channels	4
Output Range	0-20 mA, 4-20 mA
Output Resolution	16-bit
Output Accuracy	±0.1% of full scale
Output Load Resistance	0-500 Ω
Isolation	1500 VDC
Power Supply	24 VDC
Input Power Consumption	2.5 W
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +85°C
Certifications	CE, UL

Product Description

The Honeywell 51155506-101 Isolated Analog Output Module ensures safe, precise, and reliable analog signal output. By providing a 1500 VDC isolation, the module protects the system from electrical noise and surges. It offers 16-bit resolution, guaranteeing accurate and stable signal transmission. The module can handle 0-20 mA and 4-20 mA output ranges, making it adaptable for different system configurations.

This module features ±0.1% output accuracy, minimizing error in signal transmission. Designed for 24 VDC power supply, it operates with a low power consumption of 2.5 W, making it energy-efficient. Furthermore, its wide operating temperature range of -20°C to +70°C ensures reliable performance even in challenging environments.

Dimensions and Weight

Specification	Details
Dimensions	12.5 cm x 10.2 cm x 3.5 cm
Weight	0.25 kg (0.55 lbs)

Applications

The Honeywell 51155506-101 Isolated Analog Output Module is ideal for various industrial sectors, including:

Automation Systems: Provides accurate control for automated equipment.
Power Generation: Ensures reliable signal transmission for power monitoring systems.
Manufacturing: Facilitates efficient data transfer in automated production lines.
Chemical Processing: Supports precise monitoring in chemical plants and process industries.
Oil & Gas: Withstands harsh environments, making it suitable for the oil and gas industry.
