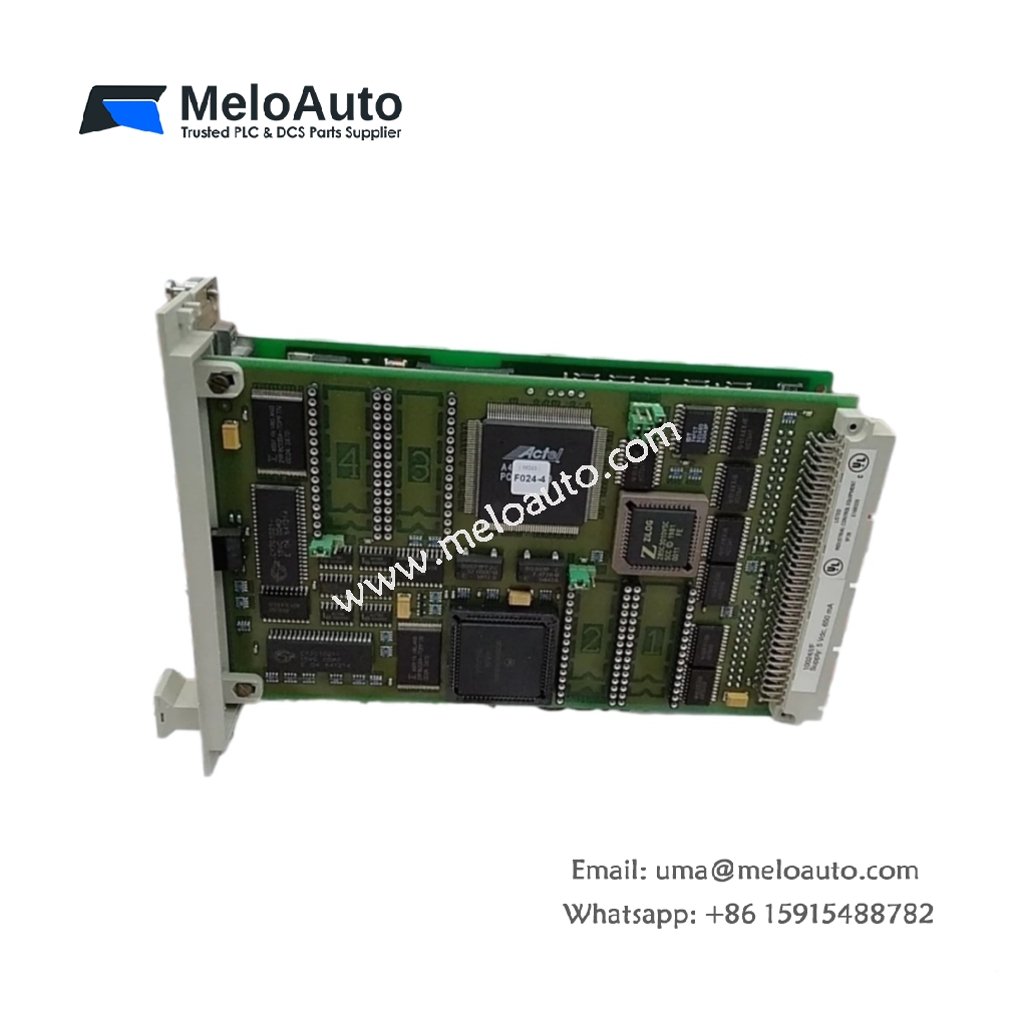

Honeywell 10024/I/F Communication Module

The 10024/I/F communication module from Honeywell manages data exchange inside industrial burner and safety control systems. Plant engineers install this module whenever controllers must link with operator panels, configuration tools, and supervisory devices. Consequently, it keeps process data flowing reliably across the control network.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 10024/I/F module.

Parameter	Specification
Product Type	Communication Module
Compatibility	Honeywell burner and safety control systems
Dimensions	Approximately 200 mm x 130 mm x 30 mm
Weight	Approximately 0.45 kg (1.0 lbs)
Mounting	Cabinet backplane or card cage slot
Interface	Backplane bus and serial communication ports
Connectors	Multiple edge connectors and D-sub ports
Component Count	Multiple communication controllers, drivers, and logic circuits
Energy Storage	On-board capacitors for buffer and signal stabilization
Port Count	Multiple independent communication ports
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module handles protocol conversion and message routing between the processor and external devices. Therefore, it relieves the main processor from routine communication overhead. The 10024/I/F also supports configurable data formats for flexible integration with third-party equipment. Meanwhile, its onboard energy storage protects data buffers during brief power interruptions.

Installation and Handling Notes

Always confirm protocol settings before inserting the 10024/I/F into an active rack. In addition, check that cable pinouts match your device requirements. Secure the retaining screws evenly to avoid connector stress. Finally, document all port assignments for future troubleshooting.
