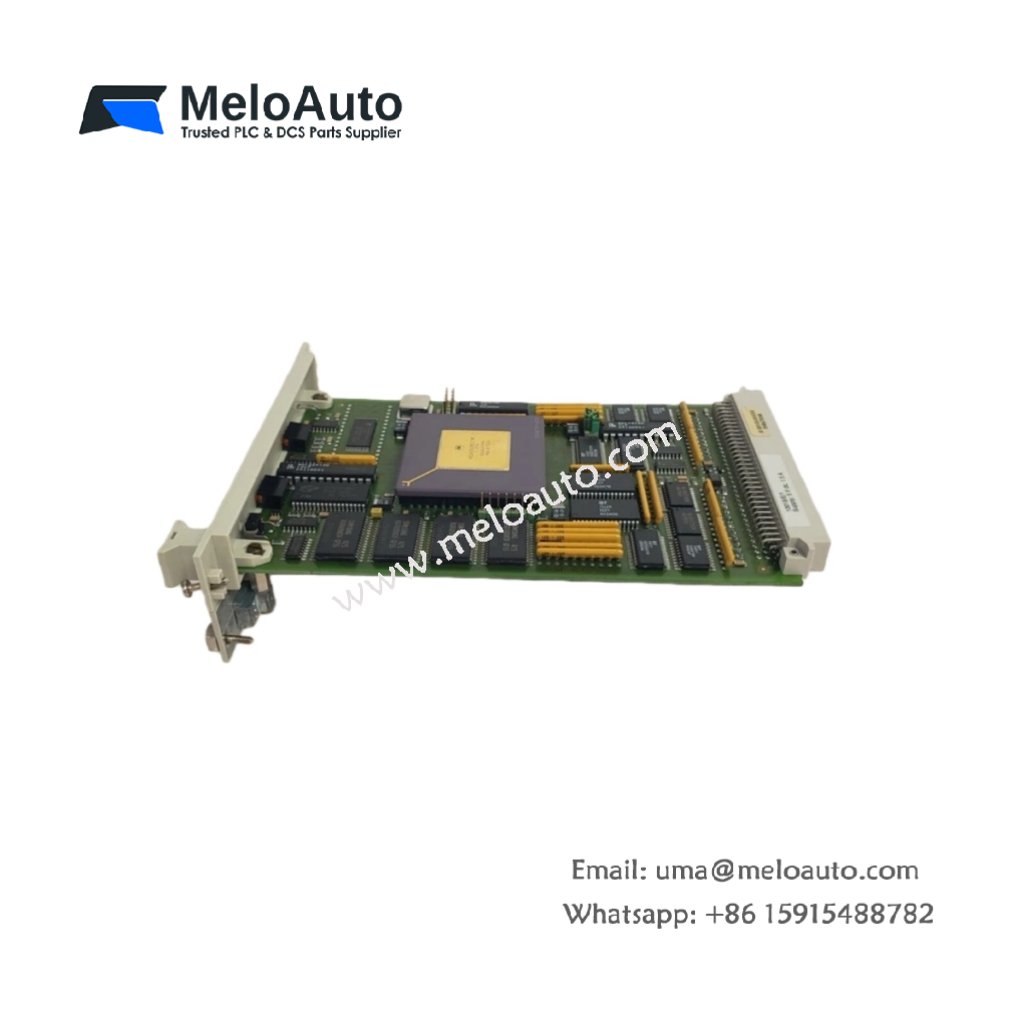

Honeywell 10018/E/E 16-Channel Ethernet Communication Module

Overview:

The Honeywell 10018/E/E is a high-performance 16-channel Ethernet module, designed to integrate seamlessly into the Honeywell Experion LX DCS Series 8 I/O family. This module provides robust connectivity for industrial systems, offering reliable communication over Ethernet. With its conformal coating, it is well-suited for harsh environments, protecting the internal components from moisture, dust, chemicals, and temperature extremes.

Key Features:

Dual Ethernet Ports for enhanced connectivity and system redundancy.
Supports multiple Ethernet protocols, including Modbus TCP/IP, DNP3, and IEC 61850.
Daisy-chaining capability allows for easy scalability by connecting multiple modules.
Coated module ensures long-term protection in challenging industrial conditions.
High-speed data transfer enables fast and efficient communication.
Durable design with a Mean Time Between Failure (MTBF) of over 100,000 hours.

Technical Specifications:

Parameter	Value
Input/Output Type	Ethernet
Channel Count	16
Operating Voltage	24 VDC
Operating Temperature Range	-40°C to +70°C
MTBF (Mean Time Between Failures)	>100,000 hours
Dimensions	5.0″ x 8.0″ x 2.0″ (12.7 cm x 20.3 cm x 5.1 cm)
Weight	0.3 kg (10.1 oz)

Applications:

Connecting DCS controllers to Ethernet networks for reliable data transfer.
Linking I/O modules to Ethernet networks for better communication.
Connecting field devices to Ethernet-based systems for seamless data exchange.
Monitoring and controlling industrial processes over Ethernet for real-time updates.
Managing industrial data efficiently through Ethernet for improved process automation.
Automating industrial tasks and operations, enhancing productivity and reliability.
