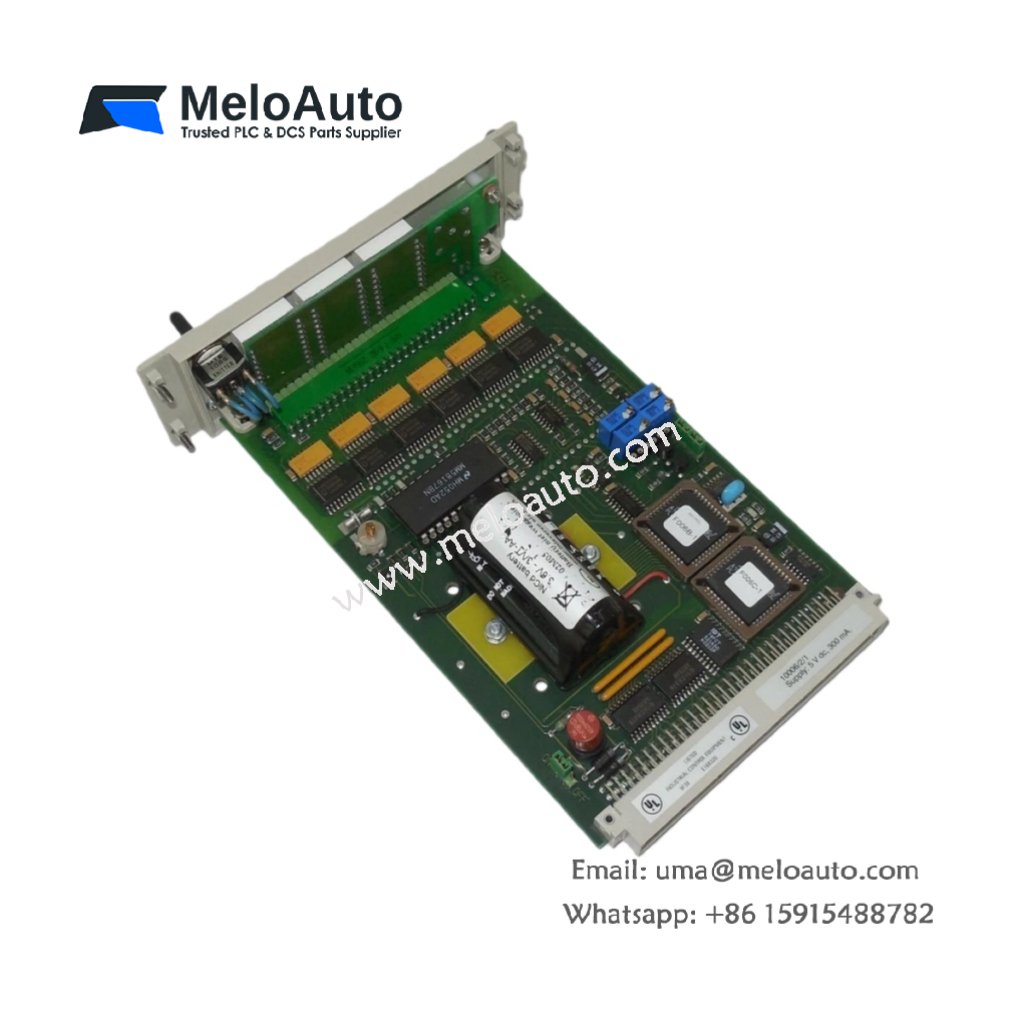

Honeywell 10006/2/1-08803 Digital Output Module

Overview

The Honeywell 10006/2/1-08803 is a powerful digital output module designed for controlling multiple devices in industrial control systems. It provides six 24 Vdc output channels, each delivering 550 mA, and can drive loads up to 13 W. Part of the reliable Honeywell 10006 series, this module is engineered to meet the demands of harsh industrial environments.

Key Features

Six Independent Output Channels: Control multiple devices simultaneously with ease.
High Current Capacity: Each channel supports up to 550 mA, ensuring optimal load management.
Wide Operating Temperature Range: Operates efficiently in environments ranging from -20°C to +70°C.
High Voltage Isolation: Provides 2500 Vdc isolation, protecting the module from electrical noise and transients.
Rugged Construction: Built to withstand the challenges of industrial environments, including dust and moisture.
Fail-Safe Operation: When the module fails, it ensures output channels go to a safe state, preventing system damage.

Technical Specifications

Feature	Specification
Model	10006/2/1-08803
Manufacturer	Honeywell
Product Type	Digital Output Module
Number of Output Channels	6
Output Voltage	24 Vdc
Output Current per Channel	550 mA
Load Capacity	Up to 13 W per channel
Operating Temperature Range	-20°C to +70°C
Voltage Isolation	2500 Vdc
Construction	Rugged, industrial-grade design
Fail-Safe Operation	Yes
Dimensions	[Provide dimensions if available]
Weight	[Provide weight if available]

Product Description

The Honeywell 10006/2/1-08803 digital output module offers six output channels, each delivering 550 mA and capable of driving loads up to 13 W. It is designed to provide reliable control in industrial control systems, process control, and machinery automation. Thanks to its rugged design and high voltage isolation of 2500 Vdc, the module operates flawlessly in challenging environments.

This module features fail-safe operation, ensuring that, in case of failure, the output channels automatically transition to a safe state. It offers wide temperature compatibility with an operating range of -20°C to +70°C, making it suitable for a variety of industrial applications.

Whether you need to control machinery, factory automation, or security systems, the Honeywell 10006/2/1-08803 guarantees reliable performance, even under extreme conditions.

Applications

Process Control: Efficiently controls devices and systems involved in industrial processes.
Machinery Control: Ideal for controlling heavy-duty machinery and automation systems.
Factory Automation: Optimizes production and manufacturing processes.
Building Automation: Manages HVAC, lighting, and other building systems.
Security Systems: Ensures reliable operation of critical components in security setups.
