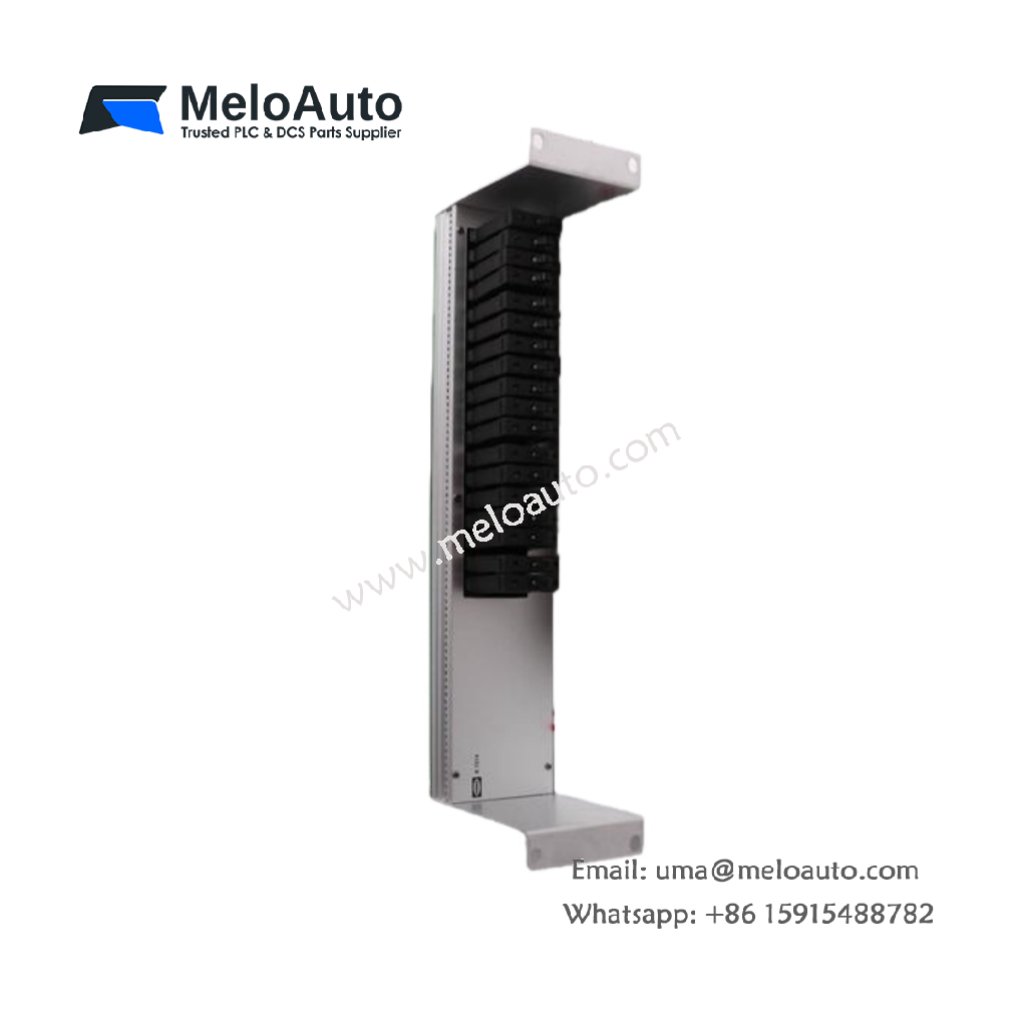

HIMA HIMATRIX F60PS01 F60 PS 01 Power Supply Module

The HIMA HIMATRIX F60PS01 F60 PS 01 is a highly reliable and efficient power supply module designed for demanding industrial and automation applications. Manufactured by HIMA, this 60W module delivers stable performance and offers a wide input voltage range from 85-264VAC. Featuring multiple protective functions, it ensures maximum safety and optimal power quality in various operating environments.

Key Features of HIMA HIMATRIX F60PS01 F60 PS 01

Active PFC (Power Factor Correction): Ensures sinusoidal current draw from the mains, significantly reducing harmonics and improving power quality.
Overvoltage Protection: Safeguards the module from damage caused by excessive voltage.
Overload Protection: Prevents damage due to high current.
Short-circuit Protection: Protects the module against short circuits.
EMI (Electromagnetic Interference) Filtering: Minimizes electromagnetic interference, ensuring smooth operation and compliance with industry standards.

Technical Specifications

Specification	Value
Operating Voltage	24 VDC (-15% to +20%)
Current Input (Max.)	30 A
External Fusing	32 A
Output Voltages	3.3 VDC / 10 A
	5.0 VDC / 2 A
	24 VDC / 32 A
Fault Contact (Fault)	30 VDC / 1 A
Ambient Temperature	0 to +60°C
Storage Temperature	-40 to +85°C
Space Requirement	6 RU, 12 HP
Weight	820 g
Number of Cable Plugs	Three poles, screw terminals
Wire Cross-Section	0.75 to 10 mm² (single-wire)
	0.75 to 6 mm² (finely stranded)
	0.5 to 6 mm² (with wire end ferrule)
Stripping Length	12 mm
Screwdriver Size	Slotted 1.0 x 4.0 mm
Tightening Torque	1.2 to 1.5 Nm

Applications and Usage

The HIMATRIX F60PS01 F60 PS 01 is perfect for a variety of applications across industrial automation, medical equipment, and telecommunications. Its robust design and wide operational range make it an ideal choice for environments where power reliability and protection are critical.

Conclusion

For those seeking a versatile, reliable, and safe power supply module, the HIMA HIMATRIX F60PS01 F60 PS 01 stands out with its advanced protection features and excellent power quality. This model ensures optimal performance in diverse industrial settings, offering both ease of integration and long-term reliability.
