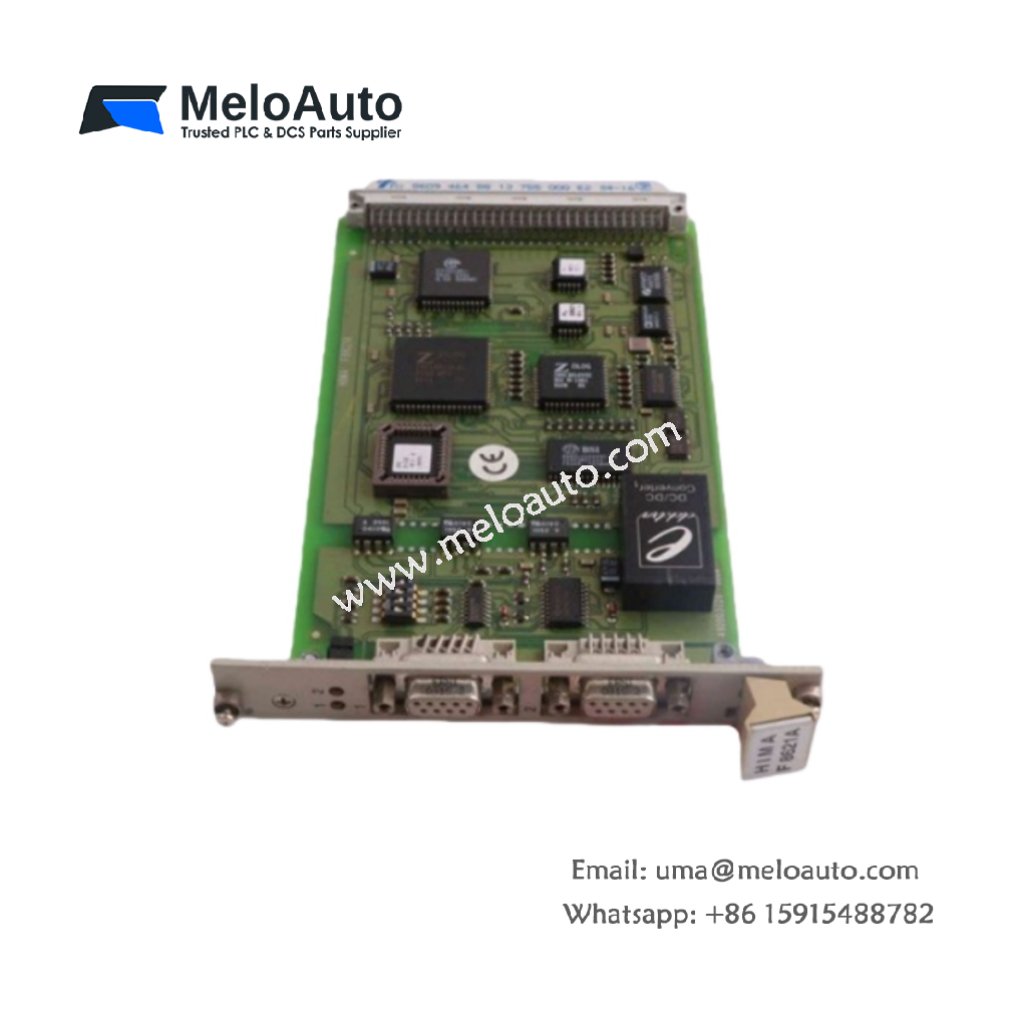

HIMA F8641 | CPU Module

Overview

The HIMA F8641 is a high-performance CPU module designed for use in industrial automation systems. Powered by a DC 5V supply, it ensures low power consumption while maintaining stable and efficient operation. With 128 KB RAM and 1 MB flash memory, the module is ideal for storing and executing programs in critical applications. Additionally, it supports RS-485 and Modbus communication protocols, making it highly compatible with various industrial systems.

Key Features

Efficient Power Consumption: Operates on DC 5V, delivering low power consumption for energy-efficient operations.
Large Memory Capacity: Equipped with 128 KB RAM and 1 MB flash memory, it provides ample storage for program execution.
Fast Processor: The 200 MHz processor ensures quick data processing and system responsiveness, even under heavy loads.
Flexible Communication: Supports RS-485 and Modbus, offering reliable communication for industrial automation.
Versatile I/O Options: The module features 16 I/O channels, with the ability to manage 16 connections simultaneously.
Wide Temperature Range: Operates in temperatures from -20°C to +70°C, making it suitable for various industrial environments.

Technical Specifications

Parameter	Details
Model Number	HIMA F8641
Processor Speed	200 MHz
Operating Voltage	DC 5V
RAM Capacity	128 KB
Flash Memory	1 MB
Communication Interfaces	RS-485, Modbus
I/O Channels	16
Max. Number of Connections	16
Dimensions	4.1 x 18.7 x 12.9 cm
Weight	0.4 kg
Temperature Range	-20°C to +70°C
Humidity Range	5% to 95% non-condensing

Functionality and Performance

The HIMA F8641 CPU module is designed to handle intensive tasks in industrial automation. The 200 MHz processor ensures fast data processing, while the 128 KB RAM and 1 MB flash memory allow for seamless execution of complex programs. Its RS-485 and Modbus communication interfaces enable easy integration with existing industrial systems. With 16 I/O channels, the module can manage multiple connections, making it a highly flexible solution for automation tasks.

Benefits

Low Power Consumption: Operating at DC 5V, the F8641 ensures minimal energy usage while delivering consistent performance.
Efficient Data Processing: The 200 MHz processor and large memory capacity ensure fast program execution in real-time industrial applications.
Robust Communication: The module supports RS-485 and Modbus protocols, ensuring reliable communication even in complex systems.
Wide Environmental Range: With its broad temperature range and humidity tolerance, the F8641 is suitable for challenging industrial environments.

Applications

The HIMA F8641 is ideal for industrial automation systems, including:

Manufacturing Automation: Reliable control and monitoring of industrial equipment and processes.
Energy Management: Integration into power generation and distribution systems for effective automation.
Transportation Systems: Used in the automation and monitoring of transportation infrastructure.
Process Control: Well-suited for chemical, petrochemical, and food processing industries requiring high reliability and precision.
