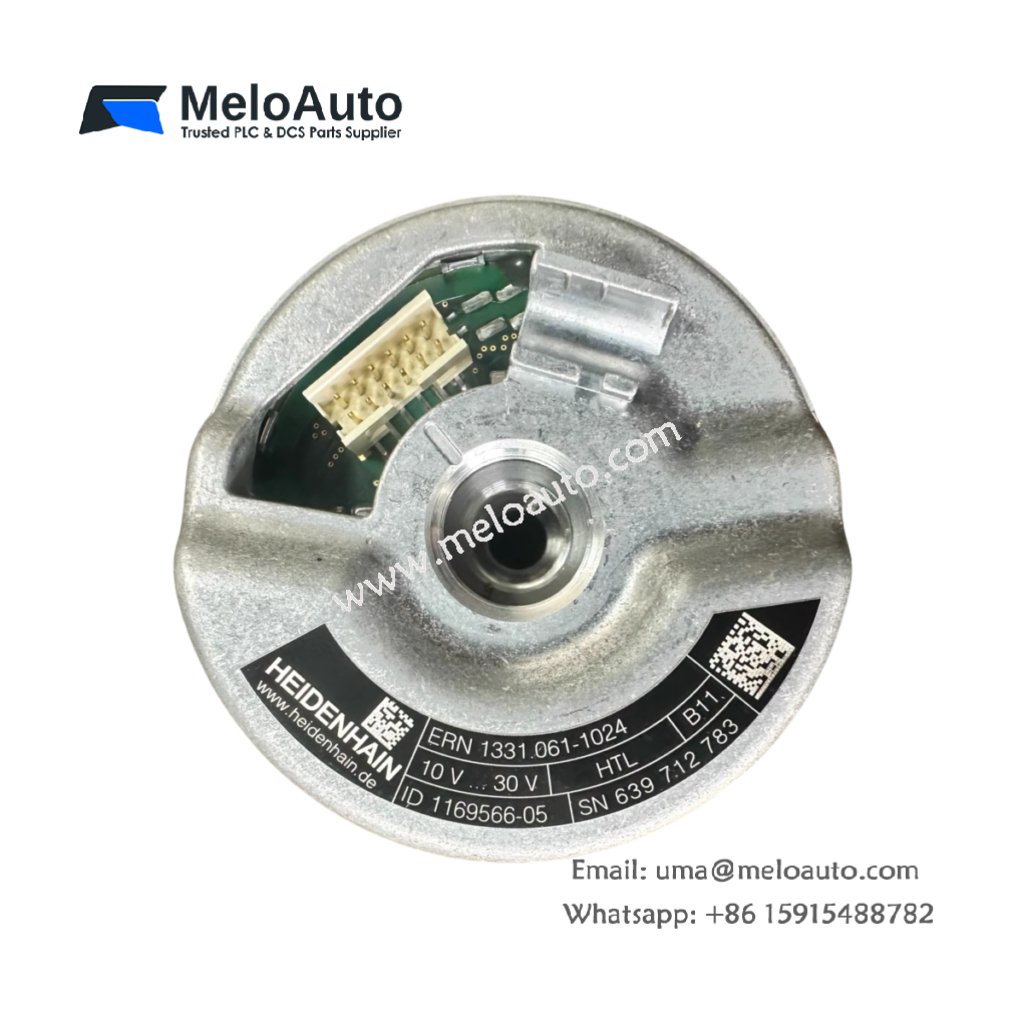

Heidenhain ERN1331.061-1024 ID1169566-05 Rotary Encoder

Product Overview

The Heidenhain ERN1331.061-1024 ID1169566-05 rotary encoder delivers precise motion control in industrial automation. It ensures accurate position feedback for motors and drives. With its robust design, it supports high-speed positioning tasks.

Key Features

Provides 1024 line count for accurate incremental feedback
Supports EnDat 2.2 digital interface for reliable data transfer
Operates in demanding automation and motion control environments
Delivers precise shaft positioning with high durability
Designed for functional safety in critical applications

Application Advantages

This encoder improves automation system accuracy and efficiency. It integrates smoothly with drives, controllers, and positioning systems. The wide power range and high scanning frequency support flexible use.

Why Choose Heidenhain ERN1331.061-1024

Heidenhain encoders are trusted worldwide for motion control and automation. The ERN1331.061-1024 combines precision, reliability, and flexible installation. It suits applications requiring stable performance and accurate feedback.

Technical Specifications

ID Number: 1169566-05
Line Count: 1024
Output Signal: HTL
Max. Scanning Frequency: 300 kHz
Power Supply: 10 V … 30 V
Coupling Version: Without coupling
Shaft: Tapered 1–10, Ø 9.25 mm, back-off thread M10/M6
Protection Rating: IP40 (EN60529)
Operating Temperature: -40 °C to +100 °C
Electrical Connection: Plug connector, straight, double-row, 12-pin, with lock
Pin Configuration: D297243
Connecting Direction: Axial and radial cable outlet
Included Parts: Mounting kit with spacer plates and central screw
